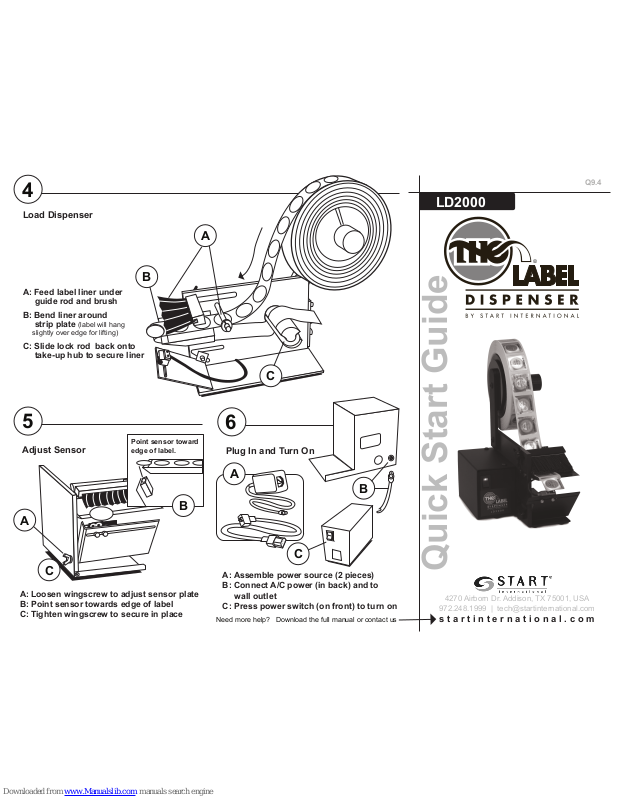

START International Label LD2000 Quick Start Manual
Load Dispenser
Plug In and Turn On
A: Feed label liner under
guide rod and brush
B: Bend liner around
strip plate (label will hang
slightly over edge for lifting)
C: Slide lock rod back onto
take-up hub to secure liner
A: Assemble power source (2 pieces)
B: Connect A/C power (in back) and to
wall outlet
C: Press power switch (on front) to turn on
B
C
A
LD5000
B
C
6
Adjust Sensor
A: Loosen wingscrew to adjust sensor plate
B: Point sensor towards edge of label
C: Tighten wingscrew to secure in place
A
C
Point sensor toward
edge of label.
B
Quick Start Guide
LD2000
A
4270 Airborn Dr. Addison, TX 75001, USA
972.248.1999 | tech@startinternational.com
s t a r t i n t e r n a t i o n a l . c o m
Need more help? Download the full manual or contact us
5
4
Q9.4
®
LD2000
Electric Label Dispenser
3
Load Label Roll
Dispenser
Power Bar and Cord (2 Pieces)
Core Holders (2)
Remove Lock Rod
A: Slide lock rod off of take-up hub
A
Reel Guide (1)
Reel Guide
A: Slide reel guide onto reel hanger
bar to secure your label roll
A
ITEMS INCLUDED
A: Insert core holders (2) into each side
of your label roll
B: Slide loaded roll onto the reel hanger bar
A
B
1
2
