UNIDOCK2U
Instruction Manual
Serial ATA Hard Drive
Docking Station
USB to SATA, IDE External Hard
Drive Docking Station
for 2.5” or 3.5” Hard Drives
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.•
Increase the separation between the equipment and receiver.•
Connect the equipment into an outlet on a circuit different from that to which the receiver •
is connected.
Consult the dealer or an experienced radio/TV technician for help.•
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only
and do not represent an endorsement of a product or service by StarTech.com, or an
endorsement of the product(s) to which this manual applies by the third-party company
in question. Regardless of any direct acknowledgement elsewhere in the body of
this document, StarTech.com hereby acknowledges that all trademarks, registered
trademarks, service marks, and other protected names and/or symbols contained in this
manual and related documents are the property of their respective holders.
Table of Contents
Introduction ..................................................................... 1
Packaging Contents.....................................................................1
System Requirements .................................................................1
Installation ....................................................................... 1
Front View ....................................................................................2
Rear View ....................................................................................2
Hardware Installation ...................................................................3
Driver Installation .........................................................................3
Using the Hard Drive Dock ..........................................................4
Specifications .................................................................. 6
Technical Support ........................................................... 7
Warranty Information ...................................................... 7
i
Introduction
This external SATA and IDE hard drive docking station provides full and
instant access to any 2.5in or 3.5in IDE and SATA (SATA 1.5Gb/s or
3.0Gb/s) hard drive up to 2 TB without having to mount the hard drive
inside a computer or enclosure.
Packaging Contents
1 x UNIDOCK2U hard drive dock•
1 x IDE cable•
1 x 40-pin to 44-pin IDE adapter cable•
1 x LP4 power cable•
1 x USB A to B cable•
1 x Universal Power Adapter•
3 x Power Cords (NA/UK/EU)•
1 x Installation Guide•
System Requirements
USB enabled computer system•
Microsoft Windows•
or Linux
®
®
2000/XP/Vista/7, Mac OS® 9.2 or later
Installation
WARNING: Hard drives require careful handling, especially when
being transported. If you are not careful with your hard disk, lost data
may result. Always handle your hard drive and storage device with
caution.
1
Front View
Power
button
power connector
Rear View
LP4 Molex
SATA drive slot
40-pin IDE
connector
Drive Eject
button
Power
Connector
connector
USB
2
Hardware Installation
Plug the power and USB cable from the rear side of the hard 1.
drive dock to a power outlet and the USB port on the computer
respectively.
If connecting a SATA hard drive, simply insert the drive, into the top 2.
loading slot on the hard drive dock. Make sure the connectors on
the hard drive face the same corner as the cut-out in the drive slot
door.
If connecting a 3.5” IDE hard drive, attach the short IDE ribbon cable 3.
and the separate LP4 molex power connector to the front side of the
hard drive dock. Then attach the 3.5” hard drive to the IDE cable
and LP4 connector.
If using a 2.5” IDE hard drive with 44-pin connector, attach the
included 40-pin to 44-pin ribbon cable with integrated LP4 connector
to the front of the hard drive dock. Then attach the 2.5” hard drive to
the ribbon cable.
Once the hard drives(s) are connected, press the power button on 4.
the top of the docking station.
The hard drive(s) should be automatically detected by the operating 5.
system.
Driver Installation
Windows 2000/XP/Vista/7, Mac OS 9.2 or later or Linux
No driver installation is required for these operating systems, as
this hard drive dock is natively supported, so the drivers are already
installed.
3
Using the Hard Drive Dock
Windows 2000/XP/Vista/7
If you are using a brand new hard drive that does not contain any data,
then you will first need to prepare the hard drive for use. From the
main desktop, right-click on “My Computer” (“Computer” in Vista), then
select Manage. In the new Computer Management window, select Disk
Management from the left window panel.
Locate the Disk that says it is “Unallocated” (check hard drive capacity
to confirm it’s the correct hard drive) and then right-click in the section
that says “Unallocated” and select “New Partition”.
The New Partition Wizard will appear. Follow the instructions in the

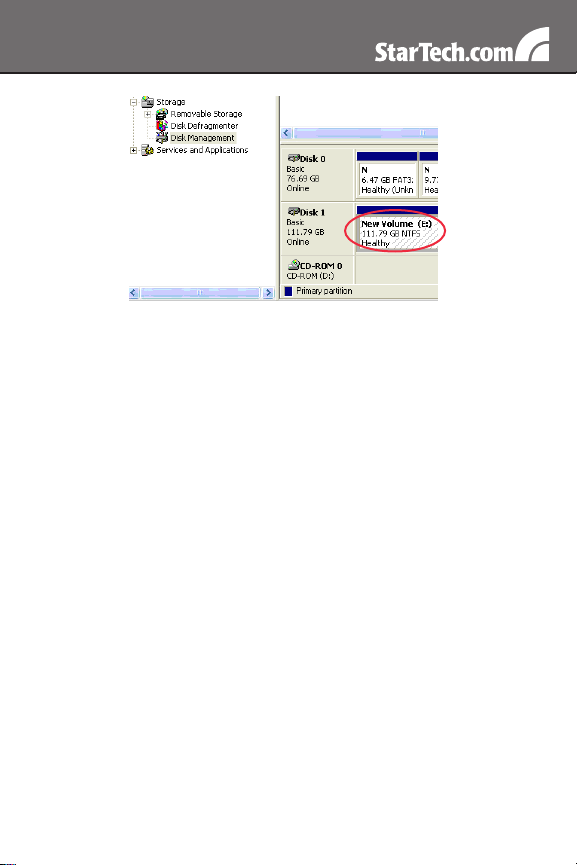

wizard to complete setting up the drive. Once complete, the Disk
should show up as “Healthy” with a drive letter assigned (ie. E:). This
drive letter should now appear within “My Computer”.
4
If you are installing a hard drive that already has data on it, then after
plugging it in, the drive should automatically show up with a drive letter
assigned within “My Computer”. You can verify or change the drive
letter through Disk Management, as outlined above.
5
Specications
Bus Interface
Connectors
Chipset
Hard Drive Compatibility
Power Adapter
Dimensions
Weight
Compatible Operating
Systems
USB 2.0
Front
1 x 40-pin IDE male
1 x 4-pin LP4 molex
Top
1 x 7+15 SATA
Rear
1 x USB type B
1 x Power Adapter
JMicron JM20337
2.5” or 3.5” SATA 1.5 or 3.0 Gb/s
with max capacity of 1.5TB
2.5” or 3.5” IDE hard drive
12VDC, 3A, center positive
145.0mm x 93.0mm x 145.0mm
413g
Windows 2000/XP/Vista/7,
Mac OS 9.2 or later, Linux
6
Technical Support
StarTech.com’s lifetime technical support is an integral part of our
commitment to provide industry-leading solutions. If you ever need
help with your product, visit www.startech.com/support and access
our comprehensive selection of online tools, documentation, and
downloads.
Warranty Information
This product is backed by a one year warranty.
In addition, StarTech.com warrants its products against defects in
materials and workmanship for the periods noted, following the initial
date of purchase. During this period, the products may be returned
for repair, or replacement with equivalent products at our discretion.
The warranty covers parts and labor costs only. StarTech.com does
not warrant its products from defects or damages arising from misuse,
abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA
LLP (or their officers, directors, employees or agents) for any damages
(whether direct or indirect, special, punitive, incidental, consequential, or
otherwise), loss of profits, loss of business, or any pecuniary loss, arising
out of or related to the use of the product exceed the actual price paid
for the product. Some states do not allow the exclusion or limitation of
incidental or consequential damages. If such laws apply, the limitations
or exclusions contained in this statement may not apply to you.
7
