Thunderbolt™ Laptop Docking Station with HDMI®
or Mini DisplayPort and Gigabit Ethernet
TBDOCKHDPBC
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 02/18/2014
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not
represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. Regardless
of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the property of
their respective holders.
Instruction Manual
Table of Contents
Product Diagram ....................................................................................1
Front View ....................................................................................................................................................1
Rear View ...................................................................................................................................................... 1
Introduction ............................................................................................2
Packaging Contents ................................................................................................................................. 2
System Requirements .............................................................................................................................. 2
Installation ..............................................................................................3
Operation ................................................................................................5
Windows ....................................................................................................................................................... 5
Mac OS .......................................................................................................................................................... 8
Supported Video Resolutions ..............................................................10
Specications ..........................................................................................10
Technical Support ..................................................................................12
Warranty Information ............................................................................12
Instruction Manual
i
Product Diagram
Front View
Rear View
USB 3.0
Thunderbolt
USB 3.0
3.5mm Microphone
3.5mm Headphone
Instruction Manual
HDMI
Gigabit Ethernet
DC Jack
1
Introduction
Packaging Contents
• 1 x Thunderbolt Docking Station
• 1 x 1m Thunderbolt Cable
• 1 x Stand (w/ screws)
• 4 x Rubber Feet
• 1 x Universal Power Adapter (NA/UK/EU)
• 1 x Installation CD
• 1 x Instruction Manual
System Requirements
• Thunderbolt-enabled computer system with available Thunderbolt port
• Available AC electrical outlet
• Windows® 8 (32/64-bit,) 7 (32/64) or Mac OS 10.8.3 or later
Instruction Manual
2
Installation
1. Connect the included power adapter from an AC electrical outlet to the
Thunderbolt Docking Station.
2. Connect the Docking Station to the computer using the included Thunderbolt
cable. Both Windows and Mac systems should automatically detect and install the
required drivers.

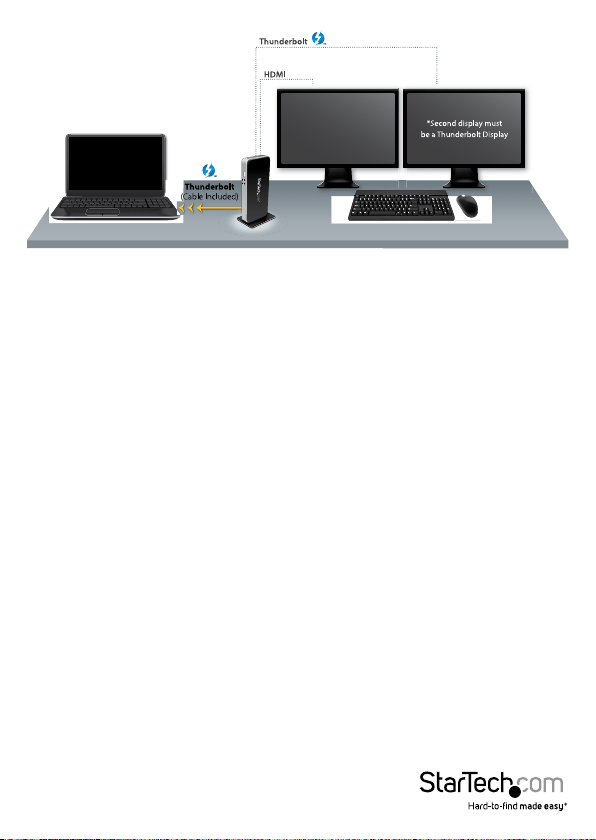

3. Connect an HDMI, Thunderbolt or Mini-DisplayPort display to the docking station
and power it on. The connected display will be detected as a secondary display to
your laptop by default (this can be adjusted in your display settings).
HDMI / Mini-DisplayPort
Thunderbolt
(Cable Included)
F1 F2 F3 F4 F1 F2 F3 F4
Esc
!1!1!1!1!1!1!1!1!1!1!1!
Shift
QWERTY
Caps Lock
A
SDFGH
ZXCVBN
Shift
Ctrl
Alt
UIOP
JKL
F1 F2 F3 F4
Esc Esc Esc
_
Backspace
Num
/*
Esc Esc Esc
Lock
1
789+
!1!
EscEsc Esc
1
!1!
456
Enter
1
!1!
123
L
MK
Enter
Shift
1
O
Ctrl
Alt
Del
Note: When connected to a Thunderbolt display, the HDMI port can be used
simultaneously to add a maximum of two displays through the dock (provided
that your laptop system hardware can support dual external displays, through the
Thunderbolt connection).
For single display congurations, connect one HDMI, DisplayPort or Thunderbolt
monitor to the dock.
For dual display congurations, connect one HDMI monitor and one Thunderbolt
monitor (Not applicable for DisplayPort monitors) simultaneously to the dock.
Instruction Manual
3
4. Connect your LAN, audio, USB and Thunderbolt peripherals as desired.
Note: After following the above connection instructions, the dock should be ready
to use. In the event that some drivers are not able to auto-install on your system,
please use the following instructions to complete the installation.
Windows
1. Insert the provided CD into your CD/ DVD drive.
2. Select Open folder to view les from the Autoplay menu. If Autoplay is disabled on
your system, browse to your CD/DVD drive to view the les.
Instruction Manual
4
Ethernet
1. Browse to the \Windows\ethernet folder on the disc and choose either the 32bit or
64bit folder, depending on your operating system.
2. Double-click the ProWINxx.exe application.
3. Follow the on-screen instructions to complete the installation.
USB
1. Browse to the \Windows\usb\3.5.100.0a folder on the disc.
2. Double-click the FLUSB3.0-3.5.100.0.exe application.
3. Follow the on-screen instructions to complete the installation.
Mac OS
Ethernet
Note: Website drivers are designed for Mac OS 10.8.3 to 10.8.5. For OS 10.9 Mavericks
users, the drivers will be automatically installed through your operating system. Please
ensure your operating system is updated to the latest package.
If the drivers have not automatically installed in Mac OS 10.9 please contact
StarTech.com technical support (www.startech.com/support) for further installation
instructions.
1. Browse to www.startech.com/TBDOCKHDPBC
2. Click on the Drivers & Downloads Tab and download the “Intel_I210.zip” driver
3. Extract the driver package
4. Browse to the extracted \Intel_I210\Mac 10.8\ethernet folder
5. Double-click the I210_ML_131002.pkg application
6. Follow any on-screen instructions to complete the installation
Operation
Windows
Display Settings
Conguring the image being displayed by the monitor(s) that are connected to the
Thunderbolt Docking Station can be done in one of two ways:
Note: The default resolution setting in Extend mode is: 1920 x 1080p * 32-bit.
a) Right-click on a blank area of the desktop, select Screen Resolution.
Instruction Manual
5
b) Right-click the DisplayLink tray icon ( ) in the system notication area.
Screen Rotation
4 options are available: 0°(Normal), 90° (Left), 180° (Upside-Down), 270° (Right) when
used with the Extended or Primary display modes. It is a useful function for some
rotatable display devices.
Instruction Manual
6
Notebook Monitor O
Sets the monitor on the USB Docking Station to the main display and turns o the
screen of the laptop.
NOTE: This function works only when one add-on monitor is connected.
Optimize For Video
Optimize video playback when using Windows 7/8. Regular text may appear blurry
while this mode is enabled.
Fit to TV
When using Extended Mode, if the Windows Desktop screen is not completely visible
on the TV/Monitor, this option can be used to adjust the size of the Windows Desktop.
NOTE: This option will only work while using Extended Mode. If using Mirror Mode,
selecting this will automatically change the adapter to Extended Mode. This mode
cannot be used at the same time as the Screen Rotation feature.
Instruction Manual
7
A red border will appear on the Extended screen that will show the size of the new
Windows Desktop. Use the horizontal and vertical + and - buttons to manually adjust
the size to properly t the screen.
NOTE: Holding the CTRL key while making adjustments allow for ner control.
Mac OS
Display Settings
Conguring the image being displayed by the monitor(s) that are connected to the
Thunderbolt Docking Station can be done in one of two ways:
NOTE: The default resolution setting in Extend mode is: 1920 x 1080p * 32-bit.
a. Click Displays in the System Preferences menu, then select Screen Resolution.
Instruction Manual
8
b. Click the Displays icon ( ) in the top right corner, then select Open
Displays Preferences
Screen Rotation
Select the desired display rotation for the connected monitor in Extend Mode here:
Instruction Manual
9
Supported Video Resolutions
Resolution Refresh Rate
720 x 480 60 Hz
720 x 576 50 Hz
1280 x 720p 50/60 Hz
1920 x 1080p 50/60 Hz
*(Thunderbolt / Mini-DisplayPort only)
2560 x 1440
50/60 Hz
Specications
Host Interface Thunderbolt
Chipset Intel - CactusRidge_4C (Thunderbolt)
Intel - WGI210AT (LAN)
Fresco Logic - FL1100-EX (USB 3.0)
Parade Technologies - PS181 (Display)
Parade Technologies - PS8339B (Display)
NXP - CBTL05023 (Thunderbolt)
Texas Instruments - PCM2912A (Audio)
Supported Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Connectors 2 x Thunderbolt™ Female
1 x HDMI Female
1 x RJ-45 Female
3 x USB3.0 type A Female
2 x 3.5 mm Mini-Jack Female
Instruction Manual
10
LED Indicator(s) 1 x Power
Maximum Data Transfer Rate 5 Gbps (USB 3.0)
10 Gbps (Thunderbolt)
1 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolution 2560x1440 (Thunderbolt / Mini
DisplayPort)
1920x1080 (HDMI)
Audio Support Yes (2-channel stereo, mic)
Compatible Networks 10/100/1000 Mbps
Ethernet Full Duplex Support Yes
Auto MDIX Yes
Power Adapter 12V, 5A
Enclosure Material Aluminum and Plastic
Operating Temperature 5°C to 40°C (41°F to 104°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 5-95% RH
Dimensions (L x W x H) 124 x 70 x 189 mm
Weight 411 g
Compatible Operating Systems Windows® 8 (32/64bit), 7 (32/64)
Mac OS 10.8.3 or later
Instruction Manual
11
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to
provide industry-leading solutions. If you ever need help with your product, visit
www.startech.com/support and access our comprehensive selection of online tools,
documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty Information
This product is backed by a two year warranty.
In addition, StarTech.com warrants its products against defects in materials
and workmanship for the periods noted, following the initial date of purchase.
During this period, the products may be returned for repair, or replacement with
equivalent products at our discretion. The warranty covers parts and labor costs only.
StarTech.com does not warrant its products from defects or damages arising from
misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their
ocers, directors, employees or agents) for any damages (whether direct or indirect,
special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,
or any pecuniary loss, arising out of or related to the use of the product exceed the
actual price paid for the product. Some states do not allow the exclusion or limitation
of incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
Instruction Manual
12
Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.
StarTech.com is your one-stop source for every connectivity part you need. From
the latest technology to legacy products — and all the parts that bridge the old and
new — we can help you nd the parts that connect your solutions.
We make it easy to locate the parts, and we quickly deliver them wherever they need
to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to
the products you need in no time.
Visit www.startech.com for complete information on all StarTech.com products and
to access exclusive resources and time-saving tools.
StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology
parts. StarTech.com was founded in 1985 and has operations in the United States,
Canada, the United Kingdom and Taiwan servicing a worldwide market.
Loading...
