Introduction
The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you
Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed
locally, at high-denition 1920x1200 resolution. PC connection cables are included
with this product for a ready to use solution.
The dual VGA Cat5 KVM extender supports easy to use hot-key and push button
commands which allow you to switch between a locally connected system and your
remote server or KVM, and works with virtually any standard USB keyboard and mouse
including wireless sets. The hot-key commands also provide video adjustment controls
for optimizing picture quality over varying distances. Extending over two standard
Cat5 (or better) cables gives you the ability to use existing infrastructure wiring to
achieve remote access to your server or KVM switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Features
• Can be used with a single computer or connected to an existing dual-VGA KVM switch
• Easy installation using 2 industry-standard UTP network cables
• Intuitive hotkey commands
• Supports auto-switching between local and remote users or dedicated control
• USB computers are supported at the local and remote locations (USB keyboard and
mouse required for remote console)
• Independently adjust video quality, inclusive of Equalizer (sharpness), Gain
(brightness) and RGB skew
System Requirements
• 1 x integrated KVM cable each for the local and remote computers. Longer cables
are available from StarTech.com, part numbers: SVECONx (PS/2), SVECONUSx (USB)
• 2x unshielded Category 5/5e/6 twisted pair (UTP) straight-through network cable
terminated at each end with RJ-45 connectors (if using surface cabling)
OR
• Unshielded Category 5/5e/6 twisted pair (UTP) straight-through network cable
terminated at each end in two wall-mounted outlets, with two standard Category
5/5e/6 patch cables, at both locations (if using premises cabling)
Instruction Manual
1
NOTE: The total length of cable between the Local and Remote Units cannot exceed
650 feet (200 meters), including patch cables (if used). It is suggested using Cat5 cables
with identical brand and length when connected simultaneously. Category 5e and 6
cabling is compatible with this product and may improve performance.
NOTE: Long cable lengths between the Local and Remote Units may adversely aect
image quality at high resolutions and refresh rates. If you need to run your remote
displays at high resolutions and frequencies, use as little cabling between locations as
possible and avoid practices such as “coiling” unused cable in a ceiling.
NOTE: This product will also control a KVM switch, allowing you to manage more than
one computer remotely. In this conguration, you can connect the KVM extender’s
Local Unit to the “console” ports on the KVM. You must use the provided power
adapters if using this conguration. You should set the Local Unit to Compatibility
Mode before connecting it to a KVM that uses the [Ctrl] key as its hotkey sequence; see
(Hotkey Commands) page 8 for details.
Packaging Contents
• 1x Local Unit
• 1x Remote Unit
• 2x 6 ft 2-in-1 USB VGA KVM cables
• 2x Packs Rubber Feet
• 1x Power Adapter
• 1x Instruction Manual
Instruction Manual
2
Connecting Your KVM Extender
Preparing Your Site
Before you can install the product, you need to prepare your site.
1. Determine where the local computer will be located and set up the computer.
2. Determine where the console devices (mouse, keyboard, monitor) will be located
and place them appropriately.
3. a) If you are using surface cabling, ensure you have enough Category 5 unshielded
twisted pair (UTP) network cabling to run two cables from the Local Unit to the Remote
Unit’s location, and that each end is terminated with a RJ-45 connector.
OR
b) If you are using premises cabling, ensure that the Category 5 unshielded twisted
pair (UTP) network cabling between the Local Unit and the Remote Unit has been
properly terminated into wall outlets in each location and there is a patch cable long
enough to connect the Remote Unit and the Local Unit to their respective outlets.
CAT5 1
(Option)
Remote Unit Local Unit
Instruction Manual
3
Installation
Installing the Local Unit
1. Place the Local Unit near the computer.
2. Switch o the computer and disconnect any connected devices.
3. Using the provided StarTech.com integrated KVM cable, connect the end of the
cable that has the USB or PS/2 + VGA connectors to the VGA Out connectors and the
USB or mouse and keyboard PS/2 connectors on the computer as appropriate. (The
PS/2 version of the cable is color-coded.) Connect the opposite end of the cable
with a single connector to the gray-coded connector marked COMPUTER on the
Local Unit of the KVM extender.
4. Use Video cable for the connection between the video port on the computer side of
the Unit and the video output port of the connected Computer.
5. Use Video cable for the connection between the video port on the console side of
the Unit and the video input port of the connected monitor.
6. Use a CAT5 cable for the connection between the respective RJ45 port (Cat5 1 &
Cat5 2) on the Remote and Local Unit.
7. If you wish to have console access to the local computer, connect a USB mouse,
keyboard, and VGA monitors to the indicators marked as CONSOLE on the Local Unit.
8. Connect the UTP cable connections for Remote Unit to the NETWORK RJ-45
connector on the Local Unit. Connect the opposite end to a terminated wall outlet
(if you are using premises cabling).
Installing the Remote Unit
1. Place the Remote Unit near the computer.
2. Switch o the computer and disconnect any existing VGA and input connections.
3. Using a StarTech.com integrated KVM cable, connect the end of the cable that has
the USB or PS/2 + VGA connectors to the VGA Out connectors and the USB or mouse
and keyboard PS/2 connectors on the computer as appropriate. (The PS/2 version
of the cable is color-coded.) Connect the opposite end of the cable with a single
connector to the gray-coded connector marked COMPUTER on the Remote Unit of
the KVM extender.
4. Use Video cable for the connection between the video port on the computer side of
the Unit and the video output port of the connected Computer.
5. Use Video cable for the connection between the video port on the console side of
the Unit and the video input port of the connected monitor.
6. Use a CAT5 cable for the connection between the respective RJ45 port (Cat5 1 &
Cat5 2) on the Remote and Local Unit.
Instruction Manual
4
7. Connect a USB mouse, keyboard, and a VGA monitor to the indicators marked as
CONSOLE on the Remote Unit.
8. Connect the UTP cable connections for Remote Unit to the NETWORK RJ-45
connector on the Remote Unit. Connect the opposite end to a terminated wall
outlet (if using premises cabling).
CAUTION: The UTP network cables that connect the Local and Remote Units carry
electrical current and should not be plugged in to other devices, as they may cause
damage. We strongly recommend marking the cables you are using with this product
at both locations for easy identication.
Instruction Manual
5
Push-Button Control and LEDs
A push-button on the respective top panel of Local Unit and Remote Unit can be used
to select the control mode.
Push-Button on Remote Unit
The button on the top panel of Remote Unit can be used to switch mode between

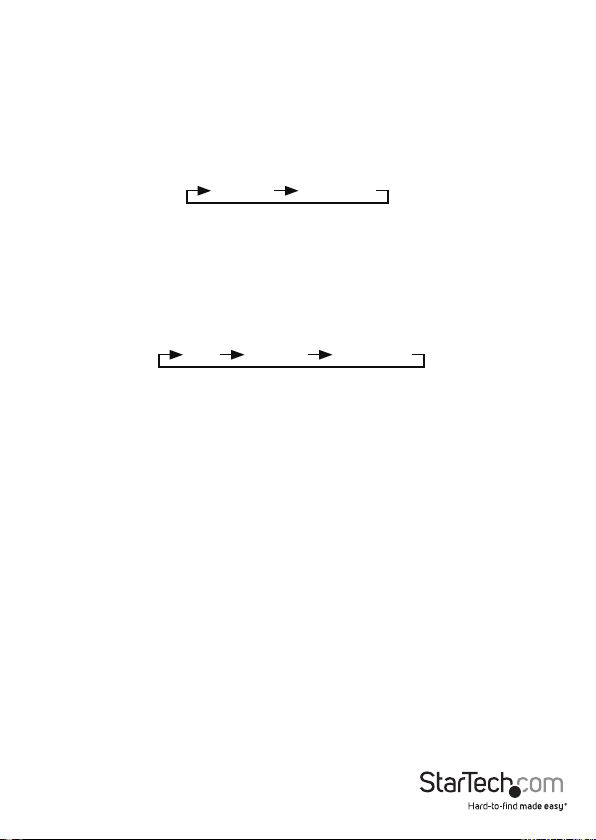

Local and Remote in the sequence as the diagram shown below:
Local On Remote On
Local On: When the LED “Local” lights up, the system controls its local computer.
Remote On: When the LED “Remote” lights up, the system remotely controls the Local Unit.
Push-Button on Local Unit
The button on the top panel of Local Unit can be used to switch mode among Local,
Remote, and Auto in the sequence as the diagram shown below:
Auto Local On Remote On
Auto: The LEDs “Remote” and “Local” ash alternatively, the system is now waiting for
the Remote or Local Unit to take control. The control priority is on the rst come,
rst served basis.
For example, once the keyboard or mouse attached to the Local Unit is active,
the LED “Local” will light up and the LED “Remote” will light o. This status
indicates that the Local Unit is now taking control of the system, and vice versa
for Remote Unit. In Auto mode, the duration of latch time for taking control can
be preset to 5, 15, 30, or 60 seconds via hotkeys, which allows the Local or
Remote Unit to resume control again via any keystroke or mouse activity if the
latch time is due and the status returns to the “Auto” mode.
In “Auto” mode, whenever, any activity from the keyboard, mouse buttons or
mouse scroll wheel is detected, the Unit (Local Unit or Remote Unit) immediately
takes control of the system.
Local On: The LED “Local” lights up, the connected PC (or KVM Switch) is controlled by
the Local Unit. In this case, 3 LEDs (Num, Caps and Scroll Lock) ash on the
keyboard attached to the Remote Unit.
Remote On: The LED “Remote” lights up, the system can be remotely controlled by the
Remote Unit.
Instruction Manual
6
Video Compensation
Video Compensation allows the user to adjust the equalization from the Remote Unit
console to optimize video performance based on the length of cable being used, as
well as other factors that may aect the display, with adjustments available for Equalizer
(Sharpness), Gain (Brightness) and Skew (RGB). To compensate the varying lengths of
CAT 5 / CAT 5e / CAT 6 cable, there 16 levels on coarse tune and up to 128/256 scales on
ne tune are available for adjustment on the equalizer and gain. There are also 8 levels
on coarse tune and 16/32 scales on ne tune are available for skew adjustment on Red,
Green and Blue. Please refer to the section below titled Hotkey Commands for Remote
Unit for details on how to apply video compensation settings.

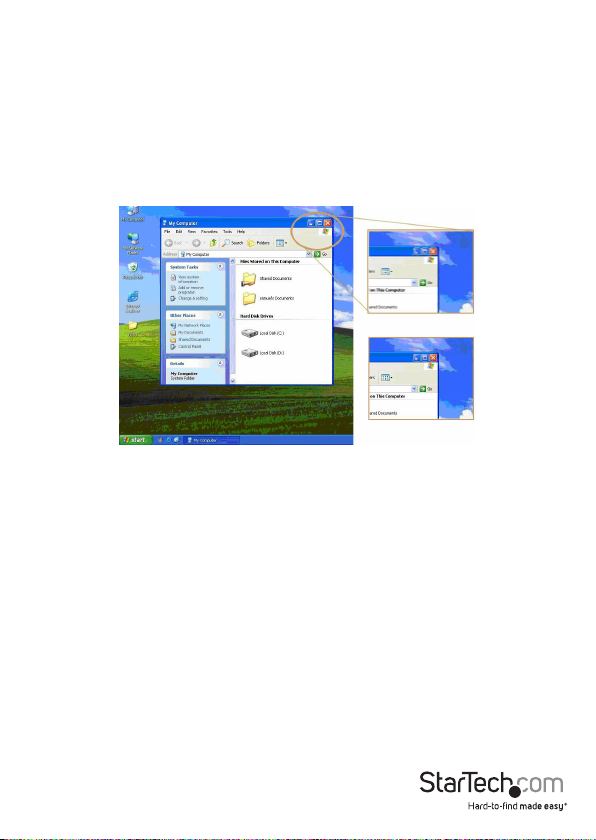

Before Video Compensation
After Video Compensation
Note:
1. The video adjustment is available on the Remote Unit ONLY.
2. The video adjustment is applicable only if the CATx cable is connected and the
Remote Unit is in control
3. The idle time-out of Video Adjustment is 30 seconds. That is, it will automatically
escape from video adjustment status if no activity is detected by the keyboard
within 30 seconds.
You can activate video adjustment on the Remote Unit either through hotkeys or pushbutton. The Unit is capable of hotkey control whether the Mask Hotkey is OFF or ON.
When the Video Adjustment mode is activated, the Numeric Lock and Scroll Lock LED
on the keyboard connected to the Remote Unit will ash respectively. Then, you can
perform the video adjustment by hotkey commands as the table shown below.
To exit the video adjustment status, three approaches are available:
1. No activity is detected by the keyboard for 30 seconds.
2. Push the Esc key once on the keyboard attached to the Remote Unit
3. Push the push-button on the top panel of the Remote Unit once
Instruction Manual
7
Hotkey Commands
A hotkey command is a short key sequence to select a computer, activate computer
scan, and so forth. The KVM Extender interprets keystrokes for hotkeys all the time.
And the built-in buzzer generates a high-pitched beep for correct hotkey command;
otherwise, one short and one long beep are generated for a bad command, in which
the bad key command won’t be sent to the extender unit or the selected computer.
Cascade Architecture
The KVM Extender can be connected to the console ports of a KVM Switch, however
to prevent any conict via hotkey commands, the hotkey commands prexed with
Compatibility mode leading code can be applied for directly accessing to the KVM Extender.
Mask Hotkey Switch
The hotkey commands of KVM Switches vary among models, which may cause hotkey
errors, unwanted congurations between the Extender Unit and mixed types of KVM
Switches that connect to each other. The Mask Hotkey extremely simplies the hotkey
control in cascade architecture.
Cascade
Architecture
NO OFF
YES OFF
YES / NO ON
Instruction Manual
Mask
Hotkey
Switch
Hotkey Commands
Standard Mode (factory default). The hotkey command
starts with the leading code [left Ctrl + left Ctrl ]
followed by one or two more keystrokes. Only the key
Ctrl located on the lower-left corner of the keyboard is
eligible for hotkey commands.
Compatibility Mode. Users can congure the
computer attached to the KVM Switch by applying the
KVM Extender built-in hotkey command prexed with
the cascade leading code [left Ctrl + left Ctrl + E ]
The state of the KVM Extender with or without
connection(s) to KVM Switch(es). Users can apply built-in
hotkey commands of its KVM Switch(es) or use the KVM
Extender alternative hotkey command with the button
maneuvering Press & Hold push-button 2 Sec. followed
by one or two more keystrokes. In later descriptions, this
action will be simplied as “[BTN] (2sec.)”
8
NOTE: The hotkey command will be automatically time-out if
• There is no activity detected by the keyboard within 3 seconds after the leading
code input (when Mask Hotkey OFF) or within 6 seconds after [BTN] (2sec.) (when
Mask Hotkey ON).
• Press the button Esc once to escape from the hotkey mode.
• Press the Push-Button once to escape from the hotkey mode and switch to either
the Local or Remote mode.
Before inserting the hotkey commands, it’s required to launch the leading code (refer
to the diagram above) according to dierent situations, and succeed by one or two
more keystrokes as the following charts show.

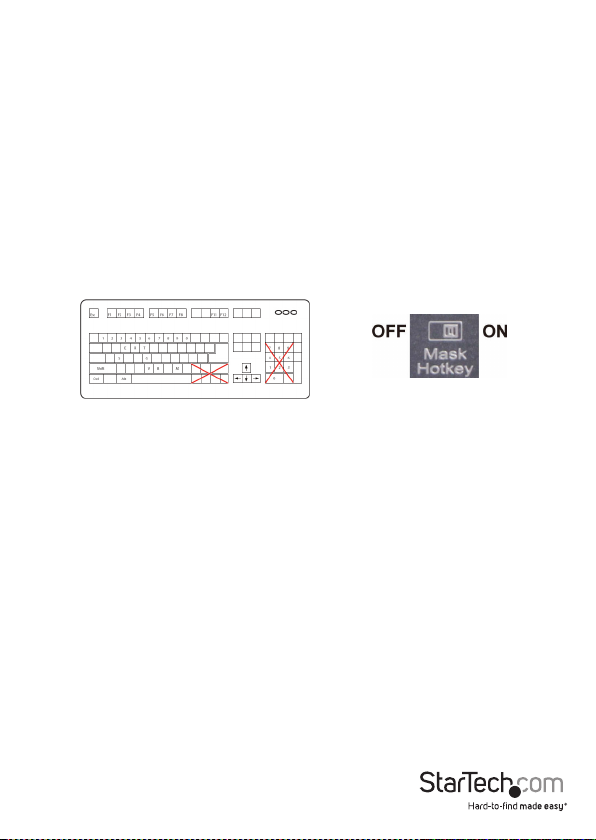

NOTE: Hotkeys should be entered using the top row numbers and the left Ctrl, Alt,
Shift keys only
Instruction Manual
9
Hotkey Commands for both Remote Unit and Local Unit
Before inserting the hotkey commands, it’s required to launch the leading code ( [Ctrl]
+ [Ctrl] or [Ctrl] + [Ctrl] + [E] ) depending on Cascade Architecture.
Hotkey Commands
Keyboard Push Button
Cascading status selection
* [both Units]
One beep: Enable Standard Mode
* [Remote Unit]
[Alt] + [E] N/A
[Alt] + [S] N/A Reset the Unit to the factory default
[Esc] N/A Escape from hotkey mode
[T] N/A
[1] N/A
Two beeps: Enable Compatibility Mode, and the
user at Remote Unit accessing to the KVM switch
that is connecting to Local Unit.
* [Local Unit]
Two beeps: Enable Compatibility Mode, and the
users at Local Unit accessing to the KVM switch that
is connecting to the Local Unit.
Mode selection in Sequence
Switch console control between Local Computer and
Remote Computer
Local mode selection
* [Remote Unit]
Enable the user at the Remote Unit accessing to
the computer (KVM Switch) that connects to the
Remote Unit.
* [Local Unit]
Enable the user at Local Unit exclusive accessing to
the PC (KVM Switch) that connects to Local Unit.
Disables the Remote Unit user accessing.
Function Descriptions
Instruction Manual
10
Hotkey Commands
Keyboard Push Button
[2] N/A
[F12] Mouse resynchronized (for PS/2 PC)
Function Descriptions
Remote mode selection
Enable the user at the Remote Unit exclusive
accessing to computer (KVM Switch) that connects
to the Local Unit. (only if the Local Unit is in Remote
or Auto mode). Disable Local Unit user accessing to
the Local Unit during this mode.
[V] - 4 Digits
(For both 1st & 2nd Monitors)
EDID Conguration (EDID Emulation)
Prevent the video resolution setting from exceeding
the capability of the connected display (require CPU
reboot); the following options for video resolution
are available for selecting:
[V] - [M] - 4 Digits
(For 1st Monitors)
Input 4 digits with 1007 for resolution of 1024 x 0768
1210 for resolution of 1280 x 1024
1612 for resolution of 1600 x 1200
1912 for resolution of 1920 x 1200
[V] - [S] - 4 Digits
(For 2nd Monitors)
NOTE: By default, the EDID Conguration (EDID Emulation) setting between the
Remote Unit and Local Unit will follow the Remote Unit setting after reboot. The
1914 for resolution of 1920 x 1440
2011 for resolution of 2048 x 1152
following options for video resolution are available for selecting:
4 Digits Resolution 4 Digits Resolution
10 07 1024 x 768 16 12 1600 x 1200
12 08 1280 x 800 16 10 1680 x 1050
12 10 1280 x 1024 19 10 1920 x 1080
13 07 1360 x 768 19 12 1920 x 1200
14 09 1440 x 900 19 14 1920 x 1440
14 10 1440 x 1050 20 11 2048 x 1152
16 09 1600 x 900
Instruction Manual
11
Hotkey Commands for Local Unit
Hotkey Commands
Keyboard Push-Button
[3] N/A Auto Mode Selection
[F3]
[F6]
Privacy Setting Enable:
Please identify the current mode (in either Local or Auto mode) by checking the Local
Unit LED rst; then, through repeating the hotkey commands for privacy setting (
[Leading Code]+F6 ), the KVM Extender generates 1 to 3 beeps to indicate the statuses
of the Local Unit as follows:
A. Local Unit in Local mode (Remote LED: O, Local LED: On)
• One beep: Enable the output video signal of Local Unit.
• Two or three beeps: Disable the output video signal of Local Unit.
B. Local Unit in Auto mode (Remote / Local LED ashes alternatively)
• One beep: Enable the output video signal of Local Unit.
• Two beeps: By triggering keyboard / mouse, users can disable the output video
signal of Local Unit temporarily. (The Local Unit users protect the privacy for 5, 15,
30, and 60 seconds. See the above table: Latch time selection for more descriptions)
• Three beeps: By triggering keyboard / mouse, the Remote Unit or Local Unit users
can temporarily disable the output video signal of the other Unit. (The users protect
the privacy for 5, 15, 30, and 60 seconds as well)
Auto Mode latch time setting: The extender
generates 1 to 4 beeps to indicate the duration
of latch time: 5, 15, 30, 60 seconds respectively.
Function Descriptions
Latch Time Selection
Privacy setting enable
Enable the Local Unit stop Video Signal
Instruction Manual
12
Hotkey Commands for Remote Unit
The Video Adjustment function is on Remote Unit only. To launch its hotkey command,
also start with the specic leading code depending on situation, and then press F11 to
enter Video Adjustment Mode. After adjustment, just press Esc to escape from this Mode.
Hotkey Commands
Keyboard Push-Button
[E]
Function Descriptions
Video Adjustment
Equalizer / Gain Adjustment
Equalizer (Sharpness):
(Num Lock LED + Caps Lock LED) Flashing
1. For both 1st and 2nd monitors
1.1 Press or to coarse tune; 16 levels for adjustment
1.2 Press and Hold Shift + or to ne tune
2. For 1st Monitor
(Num Lock LED + Caps Lock LED) Flashing
2.1 Press F1 or F2 to coarse tune; 16 levels for adjustment
2.2 Press and Hold Shift + F1 or F2 to ne tune.
3. For 2nd Monitor
(Num Lock LED + Caps Lock LED) Flashing
3.1 Press F5 or F6 to coarse tune; 16 levels for adjustment
3.2 Press and Hold Shift + F5 or F6 to ne tune.
Gain (Brightness):
(Caps Lock LED + Scroll Lock LED) Flashing
1. For both 1st and 2nd monitors
1.1 Press or to coarse tune; 16 levels for adjustment
1.2 Press and Hold Shift + or to ne tune.
2. For 1st Monitor
(Num Lock LED + Caps Lock LED) Flashing
2.1 Press F3 or F4 to coarse tune; 16 levels for adjustment
2.2 Press and Hold Shift + or to ne tune
3. For 2nd Monitor
(Num Lock LED + Caps Lock LED) Flashing
3.1 Press F7 or F8 to coarse tune; 16 levels for adjustment
3.2 Press and Hold Shift + F7 or F8 to ne tune
Instruction Manual
13
Hotkey Commands
Keyboard Push-Button
Function Descriptions
Blue/Green/Red Color Adjustment
Caps Lock LED Flashing
[B](Blue)
[G](Green)
[R](Red)
* Choose one color at a time
for adjustment
1. For both 1st and 2nd monitors
1.1 Press or to coarse tune; 8 levels for adjustment
1.2 Press and Hold Shift + or to ne tune
2. For 1st monitor
2.1 Press F1 or F2 to coarse tune; 8 levels for adjustment
2.2 Press and Hold Shift + F1 or F2 to ne tune
3. For 2nd Monitor
3.1 Press F5 or F6 to coarse tune; 8 levels for adjustment
3.2 Press and Hold Shift + F5 or F6 to ne tune
[Esc] Escape from Video Adjustment Mode
Beep Codes
Some of the keyboard command sequences you issue to the Remote Unit have
multiple possible settings. The Unit will beep to indicate what setting you have
selected for the command you issued. (A short beep followed by a long beep indicates
an invalid command.)
[Ctrl] - [Ctrl] - [Alt]+[E] (Compatibility Mode Selection)
1 beep: disabled (factory default)
2 beeps: enabled
Note: Commands described in the [Key] - [Key] format are keys that must be pressed
in order on the keyboard. Commands described in the [Key]+[Key] format must be
pressed simultaneously.
Note: If the NumLock, CapsLock, and ScrollLock lights are ashing in unison on the
keyboard, the other Unit has control of Computer A. You will not be able to use A until
the other Unit releases access to that computer.
Instruction Manual
14
Specications
Maximum
Resolution
Maximum Range 650 feet (200 meters)
Network Cabling
Type
Connectors
Power Adapter
(Optional; only required when connected using a conventional
1920 x 1200 at maximum UTP cable length
Straight-through Unshielded Twisted Pair (UTP) Cat 5
Each, Local and Remote Unit
4 x HD-15 female (2 x KVM, 2 x console VGA)
2 x RJ-45
2 x USB keyboard/mouse (for console)
1 x Power (optional)
9V DC, 600mA, center positive (per unit)
KVM switch)
Instruction Manual
15

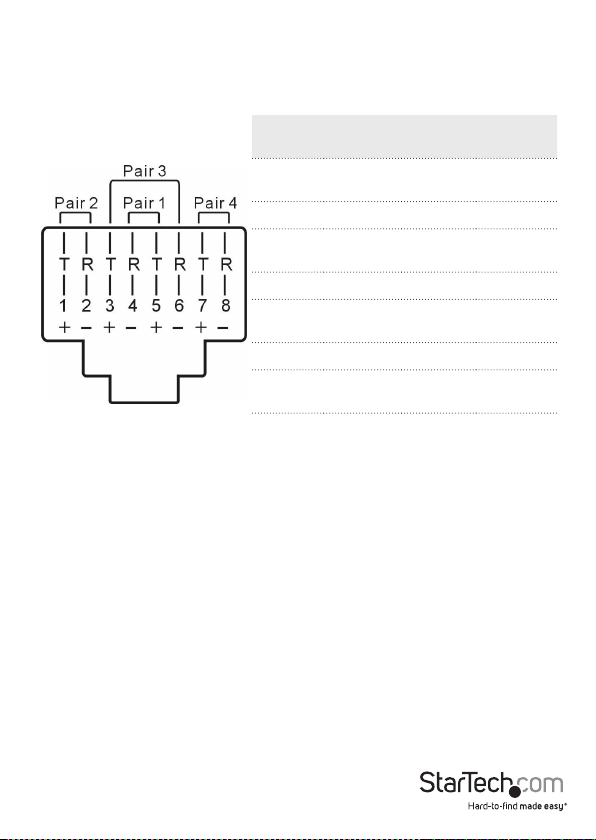

RJ-45 Connector Pinout
Pin
1
2 Orange 2 R
3
4 Blue 1 R
5
6 Green 3 R
7
8 Brown 4 R
Wire
Color
White/
Orange
White/
Green
White/
Blue
White/
Brown
Pair Function
2 T
3 T
1 T
4 T
Instruction Manual
16
Troubleshooting
If you encounter problems with the KVM Extender during the installation or
operations, please check through this section for a possible solution. If your problem
is not listed here and you can not resolve the issue, please contact your local dealer for
the fastest assistances.
Symptom Solution
•Verify that all the cables are qualied according to
the hardware requirement section.
•Verify that all the cables are properly connected to
their ports and are rmly seated.
•Use an alternative CATx cable connection
between the unit of con sole and computer.
No video signal
Poor video quality
2 monitors (1st and 2nd)
on Remote Unit can’t
simultaneously display
improved video quality after
adjustment
•Use CATx cables with identical brand and length
when connected simultaneously.
•Use CATx cables for the connection between the
respective RJ45 port (Cat5 1 to Cat5 1/ Cat5 2 to
Cat5 2) on each Unit.
•Power down the computer. Connect the monitor
directly to the computer and power up again. If the
monitor does not operate correctly direct to the
computer, try another monitor.
•Use the EIA / TIA 568B industry standard CATx
cable for KVM Extender connection.
•Unplug the CATx cable(s) from the Extender, then
plug it / them back in.
•Perform the video quality adjustment for the
length of CATx being used.
•Adjust 1st Monitor rst (use F1 ~ F4) and then 2nd
Monitor second (use F5 ~ F8). Please refer to Video
Adjustment section for more details.
Instruction Manual
17
Symptom Solution
Keyboard hotkeys are
inoperable when the KVM
Extender connects with the
KVM Switch
Computer units are
inoperable
Problems continue to occur
after checking the solutions
above
•Apply compatibility mode hotkey commands.
•Verify if the Extender has enough power.
•Verify if the units have enough power. If the power
is insucient for the needs, purchase a power
adapter from your local dealers.
•Remove and reinstall each device, checking the
connectors and sockets for bent pins or other damage.
Instruction Manual
18
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to
provide industry-leading solutions. If you ever need help with your product, visit
www.startech.com/support and access our comprehensive selection of online tools,
documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty Information
This product is backed by a three year warranty.
In addition, StarTech.com warrants its products against defects in materials
and workmanship for the periods noted, following the initial date of purchase.
During this period, the products may be returned for repair, or replacement with
equivalent products at our discretion. The warranty covers parts and labor costs only.
StarTech.com does not warrant its products from defects or damages arising from
misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their
ocers, directors, employees or agents) for any damages (whether direct or indirect,
special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,
or any pecuniary loss, arising out of or related to the use of the product exceed the
actual price paid for the product. Some states do not allow the exclusion or limitation
of incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
Instruction Manual
19
Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.
StarTech.com is your one-stop source for every connectivity part you need. From
the latest technology to legacy products — and all the parts that bridge the old and
new — we can help you nd the parts that connect your solutions.
We make it easy to locate the parts, and we quickly deliver them wherever they need
to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to
the products you need in no time.
Visit www.startech.com for complete information on all StarTech.com products and
to access exclusive resources and time-saving tools.
StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology
parts. StarTech.com was founded in 1985 and has operations in the United States,
Canada, the United Kingdom and Taiwan servicing a worldwide market.
Loading...
