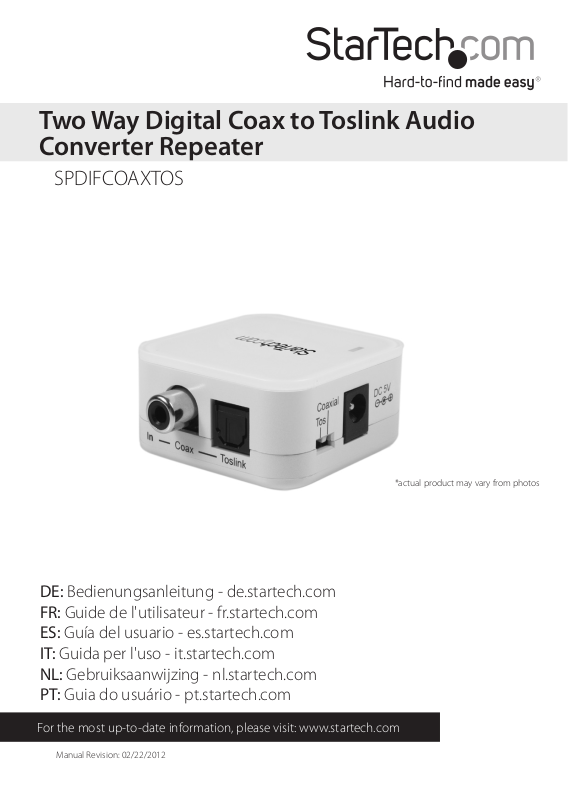

StarTech.com SPDIFCOAXTOS User Manual

Two Way Digital Coax to Toslink Audio Converter Repeater
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 02/22/2012
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.
Instruction Manual
Table of Contents
Introduction ...........................................................................................1
Features ........................................................................................................................................................ 1
Package Contents .....................................................................................................................................1
Operating Controls and Functions ...................................................... 2
Input Panel ..................................................................................................................................................2
Output Panel ............................................................................................................................................... 2
Switcher Panel ............................................................................................................................................ 3
Installation ..............................................................................................3
Specications ..........................................................................................4
Technical Support ..................................................................................5
Warranty Information ............................................................................5
Instruction Manual
i
Introduction
Thank you for purchasing a StarTech.com Two-Way Digital Audio Converter / Repeater. This innovative device allows you to convert and/or extend your Toslink or Digital Coaxial audio input, without sacricing any signal quality, and oers simplied switching between the Toslink or Digital Coax signal inputs using a built-on mini­switch - ensuring a convenient and top quality audio experience.
Features
• Supports two way audio conversion: Toslink to digital coaxial or vice versa
• Supports amplication of S/PDIF audio signals and extends their transferring
distance, through coaxial and/or Toslink cables.
• Input 2 to 5.1 channel audio. Output channels will always be the same as audio input channels
• Compact design saves space
• Easy installation
Package Contents
• 1 x User manual
• 1 x SPDIFCOAXTOS Audio Converter
• 1 x Power Adapter
Instruction Manual
1
Operating Controls and Functions
Input Panel
1. Coaxial Input
Connect to the output port of your S/PDIF audio source (e.g. DVD player, amplier) using Coaxial cable.
2. Toslink Input
Connect to the output port of your S/PDIF audio source, (e.g. DVD player,
1 2
Output Panel
1 2
amplier) using Toslink cable
1. Toslink Output:
Connect to the input port of your S/PDIF audio equipment such as an amplier, using Toslink (optical ber) cable.
2. Coaxial Output:
Connect to the output port of your S/PDIF audio equipment such as an amplier, using Coaxial cable.
Instruction Manual
2
Switcher Panel
1. Input Selection
Use this switch to select which input to use - Toslink or Coaxial.
2. Power
Connect the power supply to the SPDIFCOAXTOS unit and connect the adapter to an electrical outlet.
1
Installation
Amplier / A/V
Receiver
Amplier / A/V
Receiver
Instruction Manual
2
Amplier / A/V
Receiver
DVD Player
SPDIFCOAXTOS
3
Specications
Input 1x Coaxial RCA port, 1x Toslink (Optical Fiber) port
Output 1x Coaxial RCA port, 1x Toslink (Optical Fiber
Power DC 5V
Dimension 42(W) x 40.5(D) x 22(H)mm
Weight 25g (Adapter not included)
Instruction Manual
4
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty Information
This product is backed by a two year warranty.
In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
Instruction Manual
5
