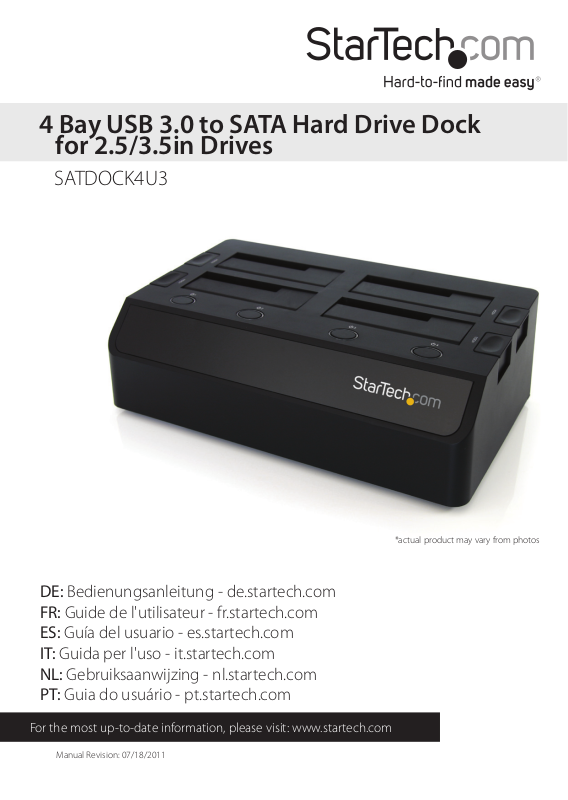

4 Bay USB 3.0 to SATA Hard Drive Dock
for 2.5/3.5in Drives
SATDOCK4U3
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 07/18/2011
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and
Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not
represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. Regardless
of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the property of
their respective holders.
Instruction Manual
Table of Contents
Introduction ............................................................................................1
Packaging Contents ................................................................................................................................. 1
System Requirements .............................................................................................................................. 1
Front View .................................................................................................................................................... 2
Rear View ...................................................................................................................................................... 2
Installation ..............................................................................................3
Hardware Installation ..............................................................................................................................3
Driver Installation ...................................................................................................................................... 3
Using the Storage Device ...................................................................... 4
Specications ..........................................................................................5
Technical Support ..................................................................................6
Warranty Information ............................................................................6
Instruction Manual
i
Introduction
The SATDOCK4U3 USB 3.0 4-Bay SATA Hard Drive Docking Station is a convenient,
time-saving storage solution for 2.5-inch and 3.5-inch SATA hard drives (HDD) and solid
state drives (SSD) that enables you to connect up to 4 SATA drives through a single
host connection, while controlling the power status (on/o) of each individual drive
independently from the rest.
The hard drive docking station features SuperSpeed USB 3.0 connectivity (also
compatible with USB 2.0) which supports data transfer rates up to 10x faster than USB
2.0. Also with dual built-in, variable-speed 60mm cooling fans with manual control
(including o). Double the value of this hard drive docking station, using a SATA to IDE
hard drive adapter (SAT2IDEADP), which enables you to use any 2.5 or 3.5in IDE hard
drive in a SATA hard drive dock slot.
Packaging Contents
• 1 x 4 Bay SATA HDD Docking Station
• 1 x USB 3.0 cable
• 1 x Universal Power Adapter
• 3 x Power Cord (NA/UK/EU)
• 1 x Instruction Manual
System Requirements
• USB enabled computer system with available USB port
• Available AC electrical outlet
• Microsoft® Windows® 2000/XP/Server 2003/Vista/Server 2008 R2/7 (32/64-bit),
or Apple® Mac OS® X, or Linux®
Instruction Manual
1
Front View
Rear View
Instruction Manual
2
Installation
WARNING! Hard drives and storage enclosures require careful handling,
especially when being transported. If you are not careful with your hard disk,
lost data may result. Always handle your hard drive and storage device with
caution. Be sure that you are properly grounded by wearing an anti-static
strap when handling computer components or discharge yourself of any
static electricity build-up by touching a large grounded metal surface (such
as the computer case) for several seconds.
Hardware Installation
1. Connect the external power adapter from the hard drive docking station to an AC
power outlet.
2. Insert 2.5in or 3.5in hard drive(s) into the top loading drive bay(s). Make sure that
the SATA connectors on the hard drive are facing the same corner of the drive bay
that has the 2.5in cutout in the door. The label on the hard drive should face the
front of the SATA docking station.
3. Connect the included USB 3.0 cable from the hard drive docking station to an
available USB port on the computer system. The computer can be ON or OFF. The
USB 3.0 cable can be plugged into USB 2.0 ports, but will only run at USB 2.0 speeds.
NOTE: A USB 2.0 cable can be used in place of the USB 3.0 cable, however the dock
will only run at USB 2.0 speeds.
4. Press the power buttons on the top of the hard drive docking station for each of the
bays that contain a hard drive. The Power LED around the power buttons will light
up.
5. To remove the hard drive, make sure it is currently not being accessed by the
computer and the Activity LED is not ashing, then unmount or uninstall the disk
drive from the operating system (see documentation for your operating system).
Press the appropriate power button to turn o the hard drive and wait for the drive
to power down. Press the drive ejection button on the top of the hard drive dock to
the release the drive, then pull the drive from the slot.
NOTE: Each drive can be independently powered on/o without aecting the other.
Driver Installation
No driver installation is required for the supported operating systems, as this hard
drive dock is natively supported, so the drivers are already installed.
Instruction Manual
3
Using the Storage Device
Windows 2000/XP/Vista/7
If you are using a brand new hard drive that does not contain any data, then you will
rst need to prepare the hard drive for use. From the main desktop, right-click on
“My Computer” (“Computer” in Vista/7), then select Manage. In the new Computer
Management window, select Disk Management from the left window panel.
Locate the Disk that says it is “Unallocated” (check hard drive capacity to conrm it’s the
correct hard drive) and then right-click in the section that says “Unallocated” and select
“New Partition”.
Instruction Manual
4
Specications
Number of Drive Bays 4
Host Interface SuperSpeed USB 3.0
Chipset ID VIA VL810 + ASMedia ASM1051
External Connectors
LEDs
Fans 2 x 60mm
Maximum Data Transfer Rate USB 3.0: 5 Gbps
Compatible Hard Drives
Insertion Rating 15, 000 cycles
Power Adapter 12V DC, 6500 mA
Operating Temperature 5°C ~ 80°C (41°F ~ 176°F)
Storage Temperature -40°C ~ 70°C (-40°F ~ 158°F)
Humidity 8% ~ 90% RH
Dimensions 290.5mm x 172.7mm x 94.7mm
Weight 1054g
Compatible Operating Systems
1 x USB 3.0 type B female
1 x DIN Power female
4 x Drive Power
4 x Drive Activity
2.5in and 3.5in SATA hard drives/solid
state drives
Windows 2000/XP/Server 2003/Vista/
Server 2008 R2/7 (32/64-bit),
Mac OS X, Linux
Instruction Manual
5
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to
provide industry-leading solutions. If you ever need help with your product, visit
www.startech.com/support and access our comprehensive selection of online tools,
documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty Information
This product is backed by a two year warranty.
In addition, StarTech.com warrants its products against defects in materials
and workmanship for the periods noted, following the initial date of purchase.
During this period, the products may be returned for repair, or replacement with
equivalent products at our discretion. The warranty covers parts and labor costs only.
StarTech.com does not warrant its products from defects or damages arising from
misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their
ocers, directors, employees or agents) for any damages (whether direct or indirect,
special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,
or any pecuniary loss, arising out of or related to the use of the product exceed the
actual price paid for the product. Some states do not allow the exclusion or limitation
of incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
