4 Bay 1U Rackmount 3.5” SATA
HDD Enclosure
SAT35401U
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 10/15/2013
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not
represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. Regardless
of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the property of
their respective holders.
Instruction Manual
Table of Contents
Product Diagram ....................................................................................1
Front View ....................................................................................................................................................1
Rear View ...................................................................................................................................................... 1
Introduction ............................................................................................2
Packaging Contents ................................................................................................................................. 2
System Requirements .............................................................................................................................. 2
Hardware Installation .............................................................................................................................. 3
Hard Drive Removal Steps ..................................................................................................................... 4
Rack Mounting Instructions .................................................................................................................. 5
Power Adapter Bracket Installation (optional) ...............................................................................5
Technical Support .................................................................................. 6
Warranty Information ............................................................................6
Instruction Manual
i
Product Diagram
Front View
HDD
Installation
Door
Rear View
Power
Adapter
Ports
Power Button
located here,
behind installation
door
Key Hole Drive
Drive
Fans
External
Mini SAS
Port
LEDs
Instruction Manual
1
Introduction
Packaging Contents
• 1x 1U 4 Bay 3.5” HDD Enclosure
• 2x Mounting Brackets
• 8x Mounting Bracket Screws
• 1x Door Key
• 1x Power Adapter Bracket with installation screws
• 2x Mounting Hole plugs
• 4x Rubber Feet
• 1x Power Adapter
• 3x Power Cords (NA, UK, EU)
• 1x Instruction Manual
System Requirements
• Computer System
• SAS/eSATA Host controller
• Mini SAS cable
Instruction Manual
2
WARNING! Hard drives and storage enclosures require careful handling, especially
when being transported. If you are not careful with your hard disk, lost data may
result. Always handle your hard drive and storage device with caution. Be sure that
you are properly grounded by wearing an anti-static strap when handling computer
components or discharge yourself of any static electricity build-up by touching a large
grounded metal surface (such as the computer case) for several seconds.

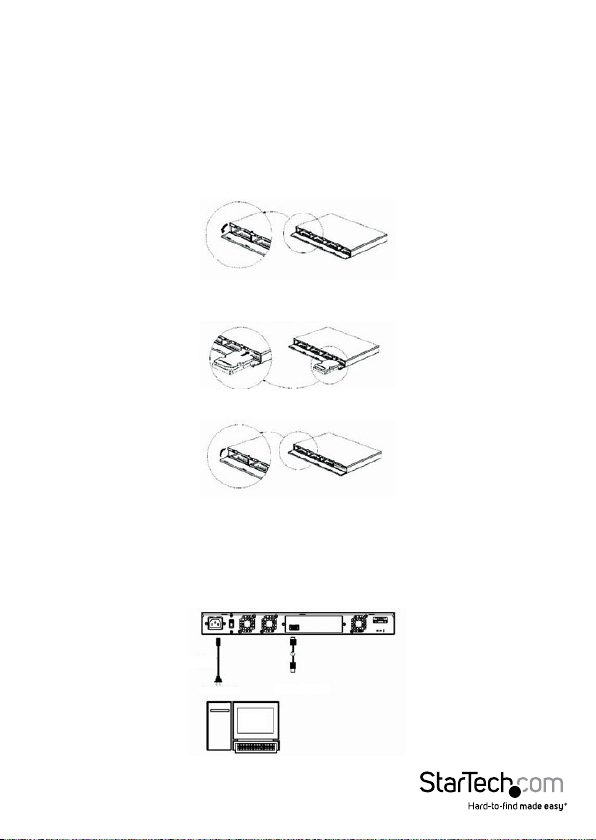

Hardware Installation
1. Open the Drive Door on the front of the enclosure, by inserting the provided key,
into the key hole, and turning clockwise. The door will swing open outward.
2. Slide up to four drives into the available HDD installation bays.
3. Close the drive door by swinging it up, and lock it closed by inserting the provided
key and turning it counter clockwise.
4. Connect the mini SAS cable (not included) from the External Mini SAS port on the
SAT35401U, to your SAS/SATA Host controller.
5. Connect the included power adapter from the Power Adapter port on the
SAT35401U to an available AC Power outlet.
Instruction Manual
3
Hard Drive Removal Steps
1. Open the Drive Door on the front of the enclosure, by inserting the Provided key,
into the key hole, and turning clockwise. The door will swing open outward.
2. Pull open the HDD removal lever, the drive will slide outward.
3. Remove Hard Drive.
Instruction Manual
4
Rack Mounting Instructions
1. Install Mounting hardware by xing the included mounting brackets using the
provided screws to either side of the SAT35401U.
2. Consult the manual included with your Rack for Rack installation steps.
Power Adapter Bracket Installation (optional)
1. Facing the front of the unit, hold the included Power adapter bracket into place
lining up the mounting holes on the bracket with the installation holes on the .
2. Using a screw driver (not included) x 2 mounting screws into the SAT3401U,
through the power adapter bracket holding it into place.
3. The power adapter can now be hung on the bracket when the enclosure is
mounted.
Instruction Manual
5
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to
provide industry-leading solutions. If you ever need help with your product, visit
www.startech.com/support and access our comprehensive selection of online tools,
documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty Information
This product is backed by a two year warranty.
In addition, StarTech.com warrants its products against defects in materials
and workmanship for the periods noted, following the initial date of purchase.
During this period, the products may be returned for repair, or replacement with
equivalent products at our discretion. The warranty covers parts and labor costs only.
StarTech.com does not warrant its products from defects or damages arising from
misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their
ocers, directors, employees or agents) for any damages (whether direct or indirect,
special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,
or any pecuniary loss, arising out of or related to the use of the product exceed the
actual price paid for the product. Some states do not allow the exclusion or limitation
of incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
Instruction Manual
6
