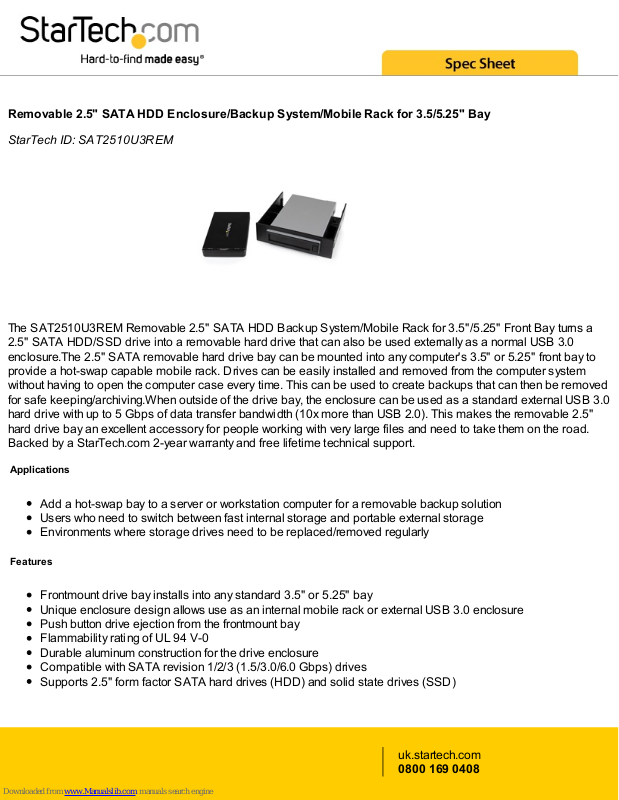

Removable 2.5" SATA HDD Enclosure/Backup System/Mobile Rack for 3.5/5.25" Bay
StarTech ID: SAT2510U3REM
The SAT2510U3REM Removable 2.5" SATA HDD Backup System/Mobile Rack for 3.5"/5.25" Front Bay turns a
2.5" SATA HDD/SSD drive into a removable hard drive that can also be used externally as a normal USB 3.0
enclosure.The 2.5" SATA removable hard drive bay can be mounted into any computer's 3.5" or 5.25" front bay to
provide a hot-swap capable mobile rack. Drives can be easily installed and removed from the computer system
without having to open the computer case every time. This can be used to create backups that can then be removed
for safe keeping/archiving.When outside of the drive bay, the enclosure can be used as a standard external USB 3.0
hard drive with up to 5 Gbps of data transfer bandwidth (10x more than USB 2.0). This makes the removable 2.5"
hard drive bay an excellent accessory for people working with very large files and need to take them on the road.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
Add a hot-swap bay to a server or workstation computer for a removable backup solution
Users who need to switch between fast internal storage and portable external storage
Environments where storage drives need to be replaced/removed regularly
Features
Frontmount drive bay installs into any standard 3.5" or 5.25" bay
Unique enclosure design allows use as an internal mobile rack or external USB 3.0 enclosure
Push button drive ejection from the frontmount bay
Flammability rating of UL 94 V-0
Durable aluminum construction for the drive enclosure
Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) drives
Supports 2.5" form factor SATA hard drives (HDD) and solid state drives (SSD)
uk.startech.com
0800 169 0408
Page 2
Technical Specifications
Warranty 2 Years
Chipset ID ASMedia ASM1053
ASMedia ASM1456
Drive Installation Removable
Drive Size 2.5in
Drive Type SATA
Interface SATA
Interface USB 3.0
Key Lock No
Number of Drives 1
Drive Connectors 1 - SATA Data & Power Combo (7+15 pin) Receptacle
Host Connectors 1 - SATA (7 pin; Data) Plug
Host Connectors 1 - SP4 (4 pin; Small Drive Power) Male
Host Connectors 1 - USB 3.0 Micro-B (10 pin; SuperSpeed) Female
Type and Rate SATA III (6 Gbps)
Type and Rate USB 3.0 - 5 Gbit/s
OS Compatibility Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7
(32/64-bit)/ 8 (32/64-bit)
Mac OS X (tested up to 10.8)
Linux
Color Black
Enclosure Type Aluminum and Plastic
Product Height 41.6 mm [1.6 in]
Product Length 164.8 mm [6.5 in]
Product Weight 410 g [14.5 oz]
Product Width 145.8 mm [5.7 in]
LED Indicators 1 - Power/Activity (Green)
Humidity 5% ~ 95% RH
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
System and Cable
Requirements
Available 3.5" or 5.25" front bay
System and Cable
Requirements
Available internal SATA data connector
System and Cable
Requirements
Available SATA or LP4 Molex internal power connector
uk.startech.com
0800 169 0408
Page 3
Package Quantity 1
Shipping (Package)
Weight
0.7 kg [1.6 lb]
Included in Package 1 - 2.5" SATA enclosure
Included in Package 1 - 3.5" Front Panel Drive Bay
Included in Package 1 - 3.5" to 5.25" Front Bay Adapter Bracket
Included in Package 1 - 15-pin SATA power to 4-pin SP4 small floppy power Adapter Cable
Included in Package 1 - 4-pin LP4 Molex power to 4-pin SP4 small floppy power Adapter Cable
Included in Package 1 - SATA Cable
Included in Package 1 - USB 3.0 A to Micro-B Cable
Included in Package 1 - Screw Kit
Included in Package 1 - Instruction Manual
Certifications, Reports and Compatibility
