USB 3.0/eSATA Dual 3.5” SATA HDD
Trayless Enclosure with UASP
S352BU33RER
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 07/28/2014
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not
represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. Regardless
of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the property of
their respective holders.
Instruction Manual
Table of Contents
Product Diagram ....................................................................................1
Front View ....................................................................................................................................................1
Rear View ...................................................................................................................................................... 1
Introduction ............................................................................................2
Packaging Contents ................................................................................................................................. 2
System Requirements .............................................................................................................................. 2
Specications ..........................................................................................3
Technical Support ..................................................................................4
Warranty Information ............................................................................4
Instruction Manual
i
Product Diagram
Front View
3
1
4
5
8
13
9
12
1. Drive 1 Lock
2. Drive 1 Latch
3. Drive 1 Door
4. Drive 1 Activity LED
5. Drive 2 Lock
6. Drive 2 Latch
7. Drive 2 Door
8. Drive 2 Activity LED
9. Power Button
10. RAID Control Switch
11. RAID Mode Button
12. REBUILD LED
13. ON LED
10
2
6
7
11
Instruction Manual
1

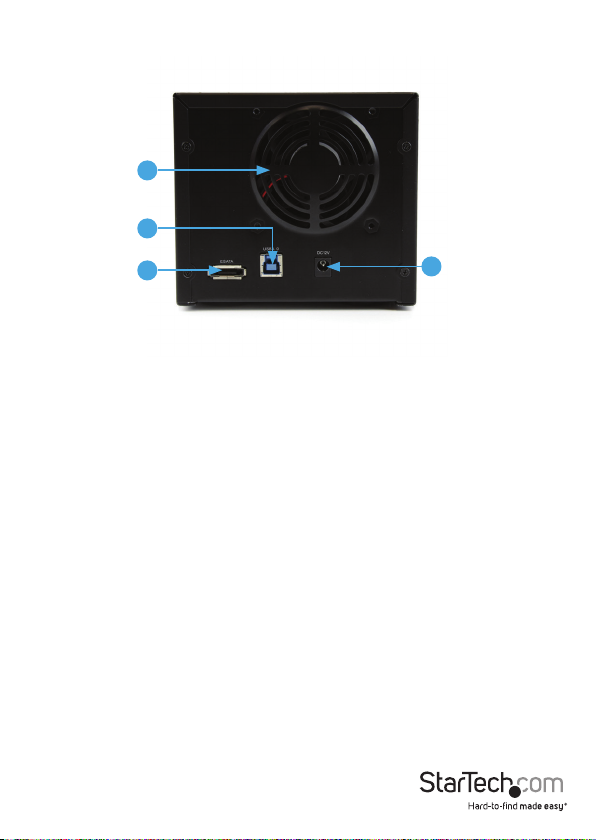

Back View
1
3
2
1. Drive Fan
2. eSATA port
3. USB 3.0 port
4. Power adapter port
Instruction Manual
4
2
Introduction
Packaging Contents
• 1x USB 3.0/eSATA Hard Drive Enclosure (S352BU33RER)
• 1x eSATA Cable
• 1x USB 3.0 Cable
• 2x Drive Door Keys
• 1x Universal Power Adapter (NA/UK/EU)
• 1x Instruction Manual
System Requirements
• 1x Computer system with available USB 3.0 (5 Gbit/s) port/USB 2.0 port (480Mbps)
or eSATA port
Microsoft® Windows® 2000/XP/Server 2003/Vista/Server 2008 R2/7/8 (32/64-bit),
Apple® Mac® OS 9.x/10
Linux®
Google Chrome OS™
• Up to 2x 3.5” SATA Hard Drive
Instruction Manual
3
Hardware Installation
WARNING! Hard drives and storage enclosures require careful handling, especially
when being transported. If you are not careful with your hard disk, lost data may
result. Always handle your hard drive and storage device with caution. Be sure that
you are properly grounded by wearing an anti-static strap when handling computer
components or discharge yourself of any static electricity build-up by touching a large
grounded metal surface (such as the computer case) for several seconds.
1. Install your 3.5” Hard Drives.
a) Using an included Drive Door Key, turn the Drive Lock for your desired drive
door, clockwise to the OPEN position.
b) Pull the Door Latch forward and let the drive door swing outwards to reveal the
drive bay.
Instruction Manual
4
c) Gentley slide your desired 3.5” Hard Drive into the drive bay with the label
facing up until you feel resistence, and the drive door begins to close over
the drive.
d) While holding the drive latch open, swing the drive door closed. Once the drive
door is completely closed, release the drive latch.
Instruction Manual
5
e) (optional) Using an included Drive Door Key, turn the Drive Lock counter
clockwise to the LOCK position.
Note: If you are installing more than one drive repeat these steps on the remaining
drive door.
2. Using the included power adapter, connect the Power Adapter Port on the
S352BU33RER to an available power outlet.
3. Connect the S352BU33RER to your computer system using the included USB 3.0
cable or the eSATA cable depending on your desired host connection.
4. Set your desired RAID conguration and/or power on the device.
WARNING! In order to prepare your drives for RAID operation, this enclosure will
congure newly installed drives into your desired RAID conguration. Please be
aware that any data currently on the drives may be lost during this process. It is
recommended that you back up all data prior to setting your RAID conguration.
a) Ensure the S352BU33RER is powered o.
b) Adjust the RAID Control Switch to your desired RAID conguration. (See list of
RAID congurations)
c) Press and hold the RAID Mode Button while turning on the S352BU33RER on by
pressing the Power Button.
REBUILD
Note: RAID conguration is only required for initial conguraiton or if you would like to
change your RAID conguration.
Instruction Manual
6
Available RAID Congurations
The S352BU33RER enclosure supports 4 dierent RAID congurations. RAID is a
storage technology that combines multiple hard drives into a single unit for secure
data redundancy, increased volume size and/or improved performance.
Descriptions and benets for each available RAID conguration are listed below:
Normal - JBOD
In JBOD, no RAID conguration is set and both drives appear as individual disks.
Note: For both drives to be detected while connected via eSATA the host controller must
support SATA Port Multiplier.
BIG/Spanning – Combine
In BIG, both drives appear together as a larger individual disk the size of both drives
combined. This conguration enables you to create a larger volume than would be
available using a single drive without the performance increase oered with RAID 0.
RAID1 – Mirroring
In RAID1 both drives appear as a single disk and data is written identically to both. This
level protects your data from individual drive failure as a backup of all data is written
instantly.
RAID0 – Striping
In RAID0 both drives appear together as a larger single disk the size of both drives
combined. This level can improve your performance as read and write operations are
performed in parallel on separate disks.
LED Indicators
The hard drive enclosure oers LED indicators for each drive so you can monitor drive
activity and the health of your RAID array. The LED will ash while the hard drive is
being accessed. Do not remove the enclosure from the host computer while the LED is
ashing, as it could damage the drive or the enclosure, resulting in data loss.
For a detailed explanation of all LED activity, please download the full product
manual at StarTech.com
Instruction Manual
7
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to
provide industry-leading solutions. If you ever need help with your product, visit
www.startech.com/support and access our comprehensive selection of online tools,
documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty Information
This product is backed by a two year warranty.
In addition, StarTech.com warrants its products against defects in materials
and workmanship for the periods noted, following the initial date of purchase.
During this period, the products may be returned for repair, or replacement with
equivalent products at our discretion. The warranty covers parts and labor costs only.
StarTech.com does not warrant its products from defects or damages arising from
misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their
ocers, directors, employees or agents) for any damages (whether direct or indirect,
special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,
or any pecuniary loss, arising out of or related to the use of the product exceed the
actual price paid for the product. Some states do not allow the exclusion or limitation
of incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
Instruction Manual
8
