StarTech.com S352BMU3N Quick Start
Dual 3.5” SATA NAS Enclosure with RAID
and USB 3.0
S352BMU3N
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 07/04/2014
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not
represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. Regardless
of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the property of
their respective holders.
Instruction Manual
Table of Contents
Product Diagram ....................................................................................1
Front View ....................................................................................................................................................1
Rear View ...................................................................................................................................................... 1
Introduction ............................................................................................2
Packaging Contents ................................................................................................................................. 2
Recommended System Requirements .............................................................................................. 2
Getting Started ....................................................................................... 2
Step 1. Installing your hard drives ....................................................................................................... 2
Step 2. Set your RAID Conguration .................................................................................................. 7
Step 3. NAS Setup ..................................................................................................................................... 8

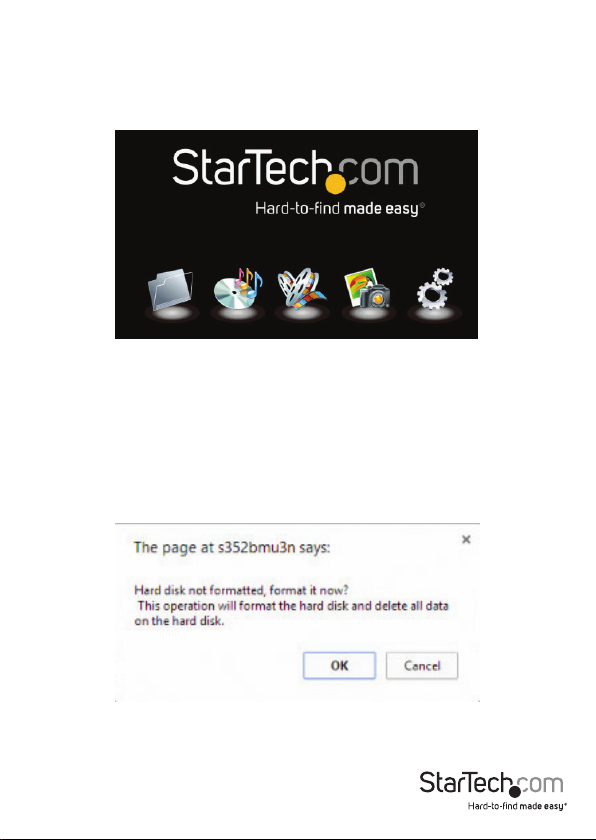

Step 4. Initialize Your Hard Drives ........................................................................................................ 9
Step 5. Use your NAS ................................................................................................................................ 11
Basic NAS Operation ................................................................................................................................ 11

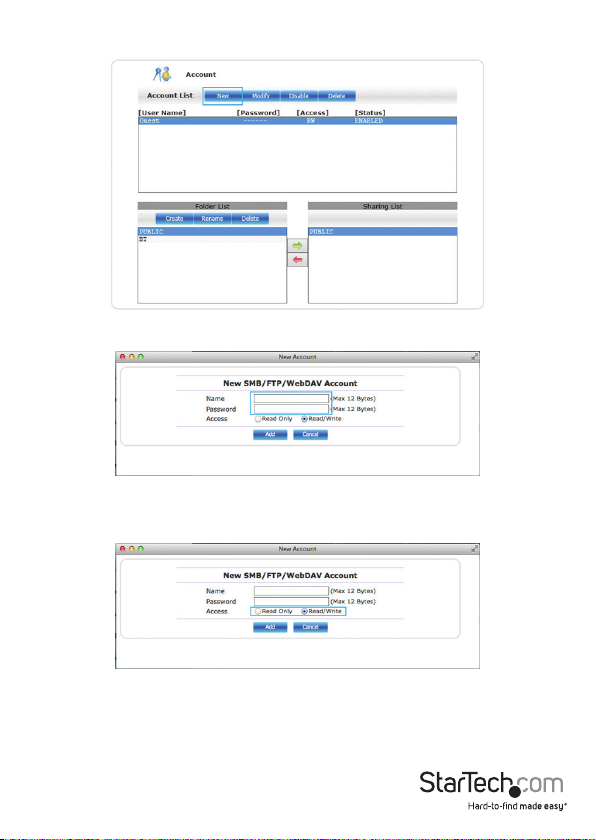

Create User Accounts ...............................................................................................................................13
Set a Static IP Address ............................................................................................................................. 16
Manage NAS Files and View Media Through a Web Browser ....................................................18
Upload les to your NAS ......................................................................................................................... 19
Play audio les directly in your web browser, with the web based media player ............. 19
Play video les directly in your web browser, with the web based media player ............. 21
Mobile App Access ................................................................................................................................... 23
Connecting Your Enclosure for DAS Operation (Over USB 3.0) ................................................ 23
Technical Support .................................................................................. 24
Warranty Information ............................................................................24
Instruction Manual
i
Product Diagram
Front View
Rear View
RAID switch
LAN Port
Reset Button
RAID switch
USB 3.0 Port
Front Panel
Power Button
Drive Activity LEDs
Drive Fan
Main Power Switch
Set RAID Button
Instruction Manual
Power Jack
1
Introduction
Packaging Contents
• NAS HDD RAID Enclosure
• Ethernet Cable
• 1M USB 3.0 A to B Cable
• Universal Power Adapter w/ regional cables (NA/UK/EU)
• Rubber foot set
• Instruction Manual
Recommended System Requirements
• 2X 3.5” SATA hard drives
For NAS Operation
• Computer system or Network with available LAN port
For DAS Operation
• Computer system with available USB Port (3.0/2.0)
Getting Started
Step 1. Installing your hard drives
WARNING! In order to prepare your drives for network operation, this enclosure
will congure newly installed drives into an acceptable format (exFAT). Please be
aware that any data currently on the drives may be lost during this process. It is
recommended that you back up all data prior to installing any drives.
Instruction Manual
2
1. Using a Phillips head screw driver (not included) remove the screw from the bottom
of the enclosure.
2. Slide the “front panel” upward toward the top of the enclosure.
Instruction Manual
3
3. Lift the panel o to reveal the drive bays.
Instruction Manual
4
4. Slide each of your hard drives into the bay.
Instruction Manual
5
5. Place the front panel back on by placing it over the drive bay, and sliding it into
place.
6. Replace the screw using the Phillips head screw driver.
Instruction Manual
6
