4 Port PCI Express SuperSpeed
USB 3.0 Card
PEXUSB3S4V
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 08/14/2012
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not
represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. Regardless
of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the property of
their respective holders.
Instruction Manual
Table of Contents
Introduction ............................................................................................1
Packaging Contents ................................................................................................................................. 1
System Requirements .............................................................................................................................. 1
Installation ..............................................................................................2
Hardware Installation ..............................................................................................................................2
Driver Installation ...................................................................................................................................... 3
Verifying Installation ................................................................................................................................ 4
Specications ..........................................................................................5
Technical Support ..................................................................................6
Warranty Information ............................................................................6
Instruction Manual
i
Introduction
The PEXUSB3S4V 4-Port PCI Express SuperSpeed USB 3.0 Card (with SATA Power) adds
4 external USB 3.0 ports to any PCI Express-enabled computer system. SuperSpeed USB
3.0 provides up to 5 Gbps of data bandwidth, while still being backward compatible
with existing USB 2.0 devices at 480Mbps. Using a “stacked” port layout that places the
ports one on top of the other, more ports are able to t into a smaller space. This allows
for all four USB 3.0 ports to be external facing, while still allowing the 4 port USB 3.0
card to t into a small form factor/low prole computer system. With a built-in SATA
power connector, each USB port can provide up to 900mA of power to USB 3.0 devices
(500mA for USB 2.0) by connecting to your computer power supply. This USB 3.0 PCIe
card is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Packaging Contents
• 1x PCI Express USB 3.0 Card
• 1x Low Prole Bracket
• 1x Driver CD
• 1x Instruction Manual
System Requirements
• PCI Express enabled computer system with available PCI Express slot
• Available SATA power connector from the computer power supply
• Microsoft® Windows® XP/ Server 2003/ Server 2008 R2/ Vista/ 7/ 8 (32/64-bit)
Instruction Manual
1
Installation
WARNING! PCI Express cards, like all computer equipment, can be severely damaged
by static electricity. Be sure that you are properly grounded before opening your
computer case or touching your PCI Express card. StarTech.com recommends that you
wear an anti-static strap when installing any computer component. If an anti-static
strap is unavailable, discharge yourself of any static electricity build-up by touching a
large grounded metal surface (such as the computer case) for several seconds. Also be
careful to handle the PCI Express card by its edges and not the gold connectors.
Hardware Installation
1. Turn your computer o and any peripherals connected to the computer (i.e. Printers,
external hard drives, etc.). Unplug the power cable from the rear of the power
supply on the back of the computer and disconnect all peripheral devices.
2. Remove the cover from the computer case. See documentation for your computer
system for details.
3. Locate an open PCI Express slot and remove the metal cover plate on the rear of the
computer case (Refer to documentation for your computer system for details.). Note
that this card will work in PCI Express slots of additional lanes (i.e. x4, x8 or x16 slots).
4. Insert the card into the open PCI Express slot and fasten the bracket to the rear of
the case.
NOTE: If installing the card into a small form factor/low prole system, replacing the
pre-installed full prole bracket with the included low prole installation bracket may
be necessary.
OPTIONAL: Connect a 15-pin SATA power connector from the computer’s power
supply to the SATA power connector on the card. This is only required if using the
ports with bus-powered USB devices (no external power adapter) or if experiencing
connectivity issues.
5. Place the cover back onto the computer case.
6. Insert the power cable into the socket on the power supply and reconnect all other
connectors removed in Step 1.
Instruction Manual
2
Driver Installation
1. Once the computer has started and the operating system is fully loaded, insert the
provided Driver CD into the computer’s CD/DVD drive.

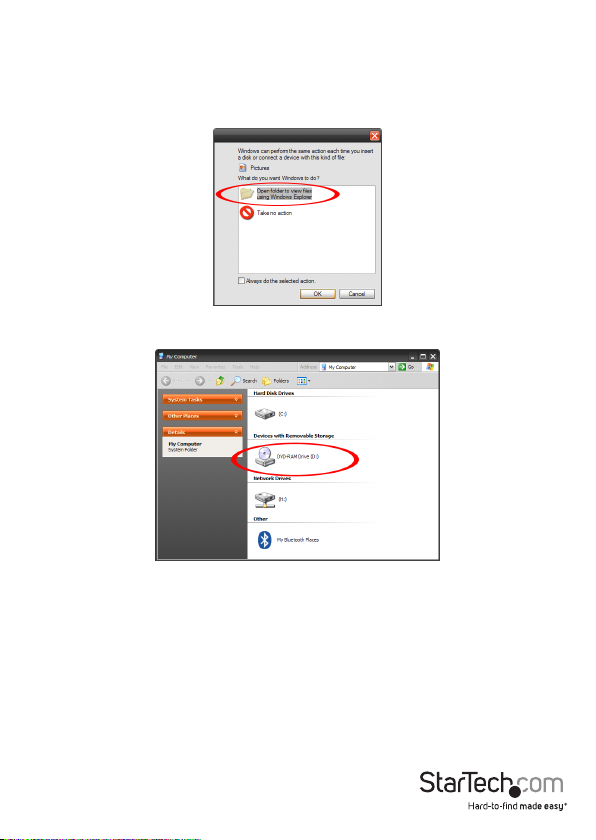

2. AutoPlay should give you the option to browse the les on the CD or automatically
open the CD.
3. If AutoPlay does not start, Go into “My Computer” and access the CD/DVD drive that
the CD is in.
4. Run the “setup.exe” le. Follow the onscreen instructions to complete the
driver installation.
Instruction Manual
3
Verifying Installation
Windows XP/Server 2003/Vista/7/8
From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then
select Manage. In the new Computer Management window, select Device Manager
from the left window panel.
In the Device Manager, under the Universal Serial Bus Controllers category, you should
see the new entries for the USB 3.0 controller card.
Instruction Manual
4
Specications
Host Interface
Number of Ports 4
Form Factor Full/Low Prole
Chipset ID NEC uPD720201
External Connectors 4 x USB 3.0 type A female
Internal Connectors 1 x 15-pin SATA Power male
Maximum Data Transfer Rate USB 3.0: 5 Gbps
Operating Temperature 5°C~50°C (41°F~122°F)
Storage Temperature -25°C~70°C (-13°F~158°F)
Humidity 20%~80% RH
Dimensions 75.0mm x 68.0mm x 19.0mm
Weight 45g
Compatible Operating Systems
PCI Express 2.0 (x1 slot connector)
SuperSpeed USB 3.0
Windows XP/ Server 2003/ Server 2008
R2/ Vista/ 7/ 8 (32/64-bit)
Instruction Manual
5
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to
provide industry-leading solutions. If you ever need help with your product, visit
www.startech.com/support and access our comprehensive selection of online tools,
documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty Information
This product is backed by a two year warranty.
In addition, StarTech.com warrants its products against defects in materials
and workmanship for the periods noted, following the initial date of purchase.
During this period, the products may be returned for repair, or replacement with
equivalent products at our discretion. The warranty covers parts and labor costs only.
StarTech.com does not warrant its products from defects or damages arising from
misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their
ocers, directors, employees or agents) for any damages (whether direct or indirect,
special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,
or any pecuniary loss, arising out of or related to the use of the product exceed the
actual price paid for the product. Some states do not allow the exclusion or limitation
of incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
