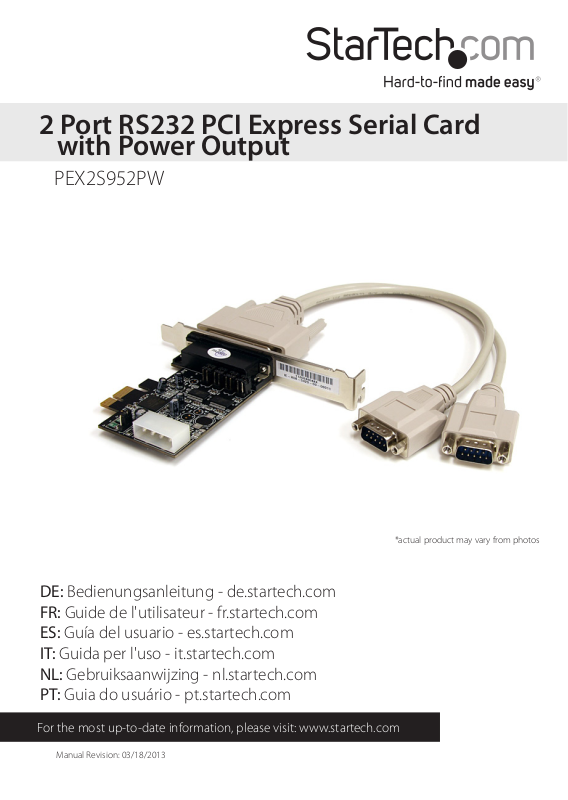

2 Port RS232 PCI Express Serial Card
with Power Output
PEX2S952PW
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 03/18/2013
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and
Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not
represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. Regardless
of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the property of
their respective holders.
Instruction Manual
Table of Contents
Introduction ............................................................................................1
Packaging Contents ................................................................................................................................. 1
System Requirements .............................................................................................................................. 1
Installation ..............................................................................................2
Jumper Conguration ............................................................................................................................. 2
Hardware Installation ..............................................................................................................................3
Driver Installation ...................................................................................................................................... 4
Verifying Installation ................................................................................................................................ 5
Specications ..........................................................................................6
Technical Support ..................................................................................7
Warranty Information ............................................................................7
Instruction Manual
i
Introduction
The PEX2S952PW 2 Port PCI Express RS232 Serial Adapter Card with Power Output
turns a PCI Express slot into 2 RS-232 (DB9) serial connections and the ports provide
power output to your devices.
Suitable for many RS232 powered serial applications, and including both low and full
prole brackets, the selectable 5V or 12V power option is able to output using pin 1,
4, 8 or 9, allowing you to congure the card to suit the requirements of your powered
RS232 devices.
The PCI express serial card is based on a native single chip design, that allows you
to harness the full capability of PCI Express (PCIe) - providing optimum reliability
and speed while reducing the load applied to the CPU by as much as 48% over
conventional (bridge chip) serial cards.
Packaging Contents
• 1x 2 Port PCI Express Serial Card
• 1x DB9 Breakout Cable
• 1x Low Prole Bracket
• 1x Driver CD
• 1x Instruction Manual
System Requirements
• PCI Express enabled computer system with available PCI Express slot
• Available LP4 Molex power connector
• Microsoft® Windows® 2000/ XP/ Server 2003/ Vista/ Server 2008 R2/ 7 (32/64-bit), or
Windows CE 5.0, or Linux® kernel 2.4.x/2.6.x
Instruction Manual
1
Installation
WARNING! PCI Express cards, like all computer equipment, can be severely damaged
by static electricity. Be sure that you are properly grounded before opening your
computer case or touching your PCI Express card. StarTech.com recommends that you
wear an anti-static strap when installing any computer component. If an anti-static
strap is unavailable, discharge yourself of any static electricity build-up by touching a
large grounded metal surface (such as the computer case) for several seconds. Also be
careful to handle the PCI Express card by its edges and not the gold connectors.
Jumper Conguration
LP4 Molex
J5
J6
J8
J7
J1
J2
J4
J3
Each serial port can be congured to output 5V or 12V power on pins 1, 4, 8, 9
depending on the jumper conguration or use the standard RS232 pin signals.
Serial Port 1
Pin Normal 5V 12V
1
J1
J1 J9 J1 J9
connector
JP9 Jumper
4
J3
8
J2
Instruction Manual
J3 J9 J3 J9
J2 J9 J2 J9
2
9
J4
Serial Port 2
Pin Normal 5V 12V
1
J5
4
J7
8
J6
9
J8
J4 J9 J4 J9
J5 J9 J5 J9
J7 J9 J7 J9
J6 J9 J6 J9
J8 J9 J8 J9
Hardware Installation
1. Turn your computer o and any peripherals connected to the computer (i.e. Printers,
external hard drives, etc.). Unplug the power cable from the rear of the power
supply on the back of the computer and disconnect all peripheral devices.
2. Remove the cover from the computer case. See documentation for your computer
system for details.
3. Locate an open PCI Express slot and remove the metal cover plate on the rear of the
computer case (Refer to documentation for your computer system for details.). Note
that this card will work in PCI Express slots of additional lanes (i.e. x4, x8 or x16 slots).
4. Gently insert the card into the open PCI Express slot and fasten the bracket to the
rear of the case.
NOTE: If installing the card into a small form factor/low prole system, replacing the
pre-installed full prole bracket with the included low prole installation bracket may
be necessary.
5. Connect an LP4 Molex power connector from the computer power supply, to the
power connector on the card.
6. Place the cover back onto the computer case.
Instruction Manual
3
7. Connect the DB9 breakout cable to the external 44-pin connector on the card.
8. Insert the power cable into the socket on the power supply and reconnect all other
connectors removed in Step 1.
Driver Installation
Windows 2000/XP/Server 2003
1. Upon starting Windows, if the “Found New Hardware” wizard appears on the screen,
cancel/close the window and insert the included Driver CD into the computer’s CD/
DVD drive.
2. AutoPlay should automatically launch and display all of the folders on the CD. If not,
open “My Computer” and double-click on the CD/DVD drive.
3. Enter the folder “PCIe”, then “OXPCIe952” and double-click the le “Setup.exe”.
4. This should launch the driver Installation wizard. Continue through the wizard
and once complete, all the necessary drivers will be installed.
Windows Vista/7/Server 2008 R2
1. Upon starting Windows, if the “Found New Hardware” wizard appears on the screen,
cancel/close the window or choose not to install the drivers and insert the included
Driver CD into the computer’s CD/DVD drive.
2. AutoPlay should automatically launch and display all of the folders on the CD. If not,
open “Computer” and double-click on the CD/DVD.
3. Enter the folder “PCIe”, then “OXPCIe952” and double-click the le “Setup.exe”.
4. This should launch the driver Installation wizard. Continue through the wizard and
once complete, all the necessary drivers will be installed.
Instruction Manual
4
Verifying Installation
Windows 2000/XP/Server 2003/Vista/Server 2008 R2/7
From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then
select Manage. In the new Computer Management window, select Device Manager
from the left window panel.
Double-click on the “Ports (COM & LPT)” option. Two additional COM ports should be
listed. The serial ports will be assigned a COM port number based upon the available
ports in Windows. This can be changed through the Properties window for each port.
*screenshots are for reference only
Instruction Manual
5
Specications
Host Interface
Form Factor Standard Prole
Chipset ID PLX OXPCIe952
Connectors
Serial Protocol RS-232
Output Voltage 5V / 12V
Surge Protection ±15KV ESD on all signal pins
Maximum Data Transfer Rate 460.8 Kbps
Data Bits 4, 5, 6, 7, 8
Parity None, Odd, Even, Space, Mark
Stop Bits 1,1.5,2
Flow Control None, Xon/Xo, RTS/CTS
Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature -20°C ~ 60°C (4°F ~ 140°F)
Humidity 5% ~ 85% RH
Dimensions 67.0mm x 20.0mm x 120.0mm
Weight 90g
Windows 2000/ XP/ Server 2003/ Vista/
Compatible Operating Systems
Windows CE 5.0, Linux kernel 2.4.x/2.6.x
PCI Express v1.1
(x1 slot connector)
2 x 9-pin DB9 male
1 x LP4 Molex male
Server 2008 R2/ 7 (32/64-bit),
Instruction Manual
6
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to
provide industry-leading solutions. If you ever need help with your product, visit
www.startech.com/support and access our comprehensive selection of online tools,
documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty Information
This product is backed by a lifetime warranty.
In addition, StarTech.com warrants its products against defects in materials
and workmanship for the periods noted, following the initial date of purchase.
During this period, the products may be returned for repair, or replacement with
equivalent products at our discretion. The warranty covers parts and labor costs only.
StarTech.com does not warrant its products from defects or damages arising from
misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their
ocers, directors, employees or agents) for any damages (whether direct or indirect,
special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,
or any pecuniary loss, arising out of or related to the use of the product exceed the
actual price paid for the product. Some states do not allow the exclusion or limitation
of incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
Instruction Manual
7
