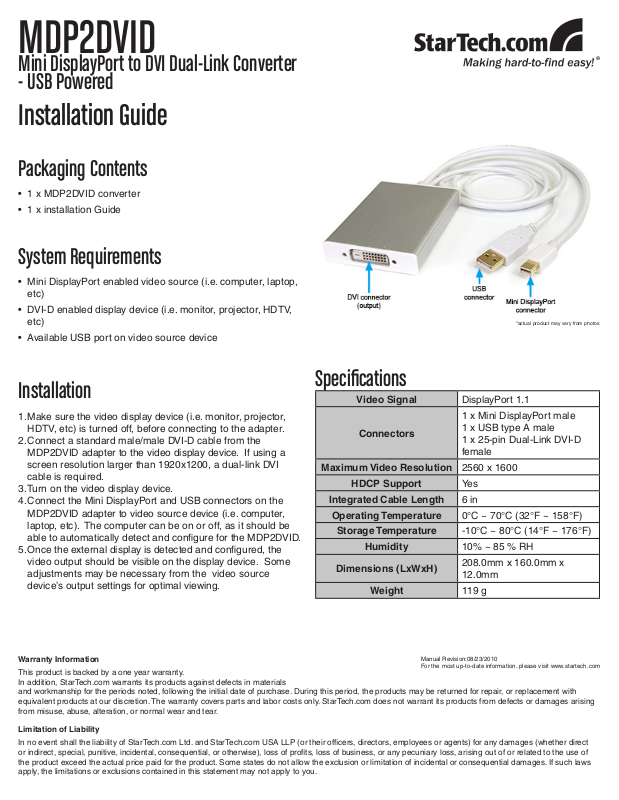

MDP2DVID
Mini DisplayPort to DVI Dual-Link Converter
- USB Powered
Installation Guide
Packaging Contents
• 1 x MDP2DVID converter
• 1 x installation Guide
System Requirements
• Mini DisplayPort enabled video source (i.e. computer, laptop,
etc)
• DVI-D enabled display device (i.e. monitor, projector, HDTV,
etc)
• Available USB port on video source device
*actual product may vary from photos
Specications
Installation
1. Make sure the video display device (i.e. monitor, projector,
HDTV, etc) is turned off, before connecting to the adapter.
2. Connect a standard male/male DVI-D cable from the
MDP2DVID adapter to the video display device. If using a
screen resolution larger than 1920x1200, a dual-link DVI
cable is required.
3. Turn on the video display device.
4. Connect the Mini DisplayPort and USB connectors on the
MDP2DVID adapter to video source device (i.e. computer,
laptop, etc). The computer can be on or off, as it should be
able to automatically detect and configure for the MDP2DVID.
5. Once the external display is detected and configured, the
video output should be visible on the display device. Some
adjustments may be necessary from the video source
device’s output settings for optimal viewing.
Warranty Information
This product is backed by a one year warranty.
In addition, StarTech.com warrants its products against defects in materials
and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with
equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising
from misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct
or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of
the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws
apply, the limitations or exclusions contained in this statement may not apply to you.
Maximum Video Resolution
Video Signal
Connectors
HDCP Support
Integrated Cable Length
Operating Temperature
Storage Temperature
Humidity
Dimensions (LxWxH)
Weight
Manual Revision:08/23/2010
For the most up-to-date information, please visit www.startech.com
DisplayPort 1.1
1 x Mini DisplayPort male
1 x USB type A male
1 x 25-pin Dual-Link DVI-D
female
2560 x 1600
Yes
6 in
0°C ~ 70°C (32°F ~ 158°F)
-10°C ~ 80°C (14°F ~ 176°F)
10% ~ 85 % RH
208.0mm x 160.0mm x
12.0mm
119 g
