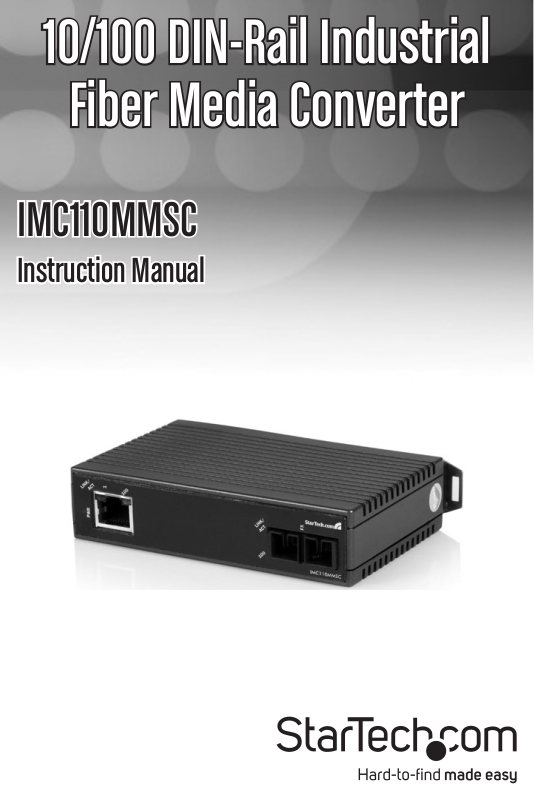

StarTech.com IMC110MMSC User Manual

10/100 DIN-Rail Industrial
Fiber Media Converter
IMC110MMSC
Instruction Manual
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea­sonable protection against harmful interference in a residential installation. This equip­ment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio com­munications. However, there is no guarantee that interference will not occur in a particu­lar installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an en­dorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this doc­ument, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.
Instruction Manual
Instruction Manual
Table of Contents
Introduction .................................................................... 1
Installation ....................................................................... 2
Location ...................................................................................2
Physical Installation .................................................................2
Network Connection ................................................................2
Functionality ................................................................... 3
Connector Pin Layout ..............................................................3
Specifications .................................................................. 4
Technical Support ........................................................... 5
Warranty Information ...................................................... 5
i
Instruction Manual
Introduction
Designed for large, higher speed bandwidth for demanding workgroups that require expansion of fast Ethernet Network in and industrial environ­ment over long distances, the StarTech.com 10/100 DIN-Rail Industrial Fiber Media Converter MM SC (2km) offers industrial grade performance, even in harsh environments.
Featuring convenient DIN Rail mounting and easy to configure instal­lation, the 10/100 Industrial Fiber Media Converter ensures optimum network throughput, helping to prevent unnecessary bottlenecks.
Features
• 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
• Device powers from the Terminal Block power connector
• Din-Rail mounting
• Extends your RJ45 signal over Fiber Ethernet
• Supports 2048 Mac addresses
• Supports a wider temperature range
• Supports IEEE 802.3 10Base-T, 802.3u 100Base-TX and 100Base-FX
industry standards
Package Contents
• 1 x RJ45 to Fiber Converter
• 1 x Information CD
• 1 x Instruction Manual (on CD)
1
Instruction Manual
Installation
Location
When installing the DIN-Rail Industrial Fiber Media Converter, ensure that the chosen location has a temperature between -10° and 60° Celsius and a relative humidity less than 95%, non-condensing.
Physical Installation
To install the DIN-Rail Industrial Fiber Media Converter onto a DIN rail,
lower the converter onto the DIN rail from above using the slot. Push the front of the converter toward the mounting surface until it audibly snaps into place. Once the converter is in place, connect a DC power adapter to the DC terminal on the rear of the converter, then plug the adapter into a standard DC outlet.
Network Connection
When connecting the DIN-Rail Industrial Fiber Media Converter to the
network, ensure that both the converter and the devices being connected to it are powered off and that all connecting cables are available. The fol­lowing chart dictates the correct cable for each speed and distance:
Speed Connector
10Base-T RJ-45 10/20 Mbps
100Base-TX RJ-45
100Base-FX SC, ST
100Base-FX SC, ST
Port Speed
Half/Full
Duplex
100/200
Mbps
100/200
Mbps
100/200
Mbps
2
Cable
2-pair UTP/STP
Cat. 3, 4, 5
2-pair UTP/
STP Cat. 5
MMF
(50 or 62.5μm)
SMF (9 or 10μm)
Max.
Distance
100 m
100 m
2 km
15, 40,
75km
Instruction Manual
Connect the cables to the output of the attached network device and then to the input of the DIN-Rail Industrial Fiber Media Converter. Once both devices are powered on, the installation is complete.
Functionality
Connector Pin Layout
The following table shows the functions of each of the pins on the RJ-45 connectors to the 10/100Base-TX ports on the DIN-Rail Industrial Fiber Media Converter:
Pin Regular Port Uplink Port
1
2
3
4
5
6
7
8
Input Receive Data + Output Transmit Data +
Input Receive Data - Output Transmit Data -
Output Transmit Data + Input Receive Data +
Not Used Not Used
Not Used Not Used
Output Transmit Data - Input Receive Data -
Not Used Not Used
Not Used Not Used
3
Specications
LED Indicators
Material
Maximum Distance
Operating Temperature
Power Supply
Network Standards
Storage Temperature
Connectors
Instruction Manual
Port and Power Status
Plastic
2 km
-10°C to 60°C (14°F to 140°F)
12 to 24V DC, 1.5A
IEEE802.3 10Base-T, IEEE802.3u 100 Base-TX/100Base-DX, IEEE802.3x
-25°C to 85°C (-13°F to 185°F)
1x RJ45 Female Connector 2x Fiber Optic SC Female Connectors
4
Instruction Manual
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commit­ment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/suppor t and access our comprehensive selection of online tools, documentation, and downloads.
Warranty Information
This product is backed by a one year warranty.
In addition, StarTech.com warrants its products against defects in materi­als and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
5
