Introduction
The HDMIPATTERN2 HDMI/DVI Portable Video Signal Generator lets you quickly
test DVI-D (digital) and HDMI-capable displays, making it easier to diagnose and
troubleshoot digital video calibration issues. The device can be powered by either
the included AC adapter or a 9V battery, oering a conveniently portable solution for
mobile installers and technicians.
The video signal generator features 8 built-in video test patterns, including both HD
video test patterns and standard denition patterns, allowing you to quickly analyze
color performance, linearity, and HDCP issues.
Delivering a cost-eective way to test HDMI or DVI-D displays (using an HDMI to DVI
cable - not included), the pattern generator is an ideal solution for AV install experts/
integrators or digital signage installers looking to save time and solve problems with
an HDTV display.
Backed by a StarTech.com 1-year warranty and free lifetime technical support.
Packaging Contents
• 1 x HDMI pattern generator
• 1 x HDMI cable
• 1 x Power Adapter
• 1 x Instruction Manual
System Requirements
• HDMI or DVI-D enabled display device (i.e. monitor, projector, HDTV, etc)
• Available AC power outlet or 9V battery
Instruction Manual
1

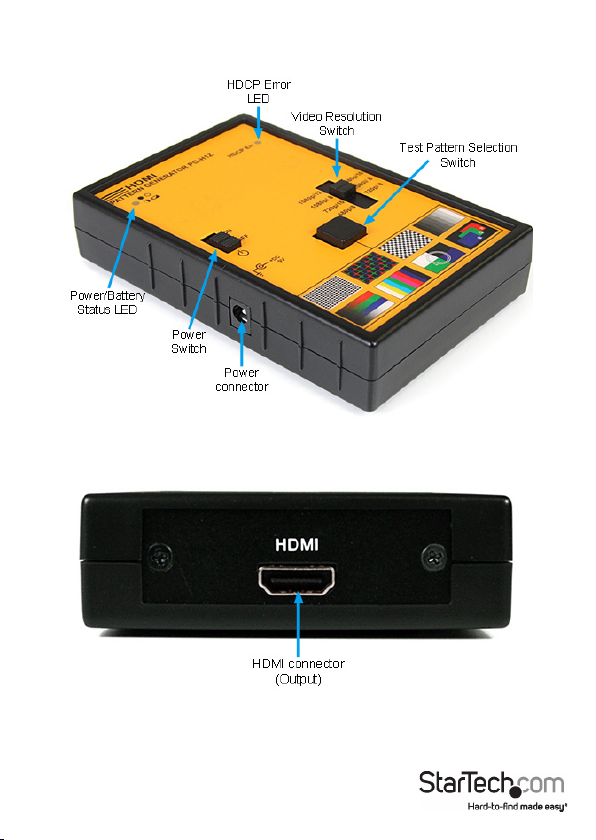

Front View
Top View
Instruction Manual
2
Installation
1. The video generator can be powered either by external power adapter or a 9V
battery. To access the battery compartment, ip the unit over and on the bottom
side, will be the battery door. Push in the small tab that secures the door and lift the
door away from the unit.
2. Set the Video Resolution Switch to the desired output resolution for the display
device (i.e. monitor, HDTV, etc) you wish to calibrate/test
Swtich Setting Description
1080p/12 1080p @ 60Hz (12-bit)
1080p/10 1080p @ 60Hz (10-bit)
1080p/8 1080p @ 60Hz (8-bit)
1080i/8 1080i @ 60Hz (8-bit)
720p/10 720p @ 60Hz (10-bit)
720p/8 720p @ 60Hz (8-bit)
480p/8 480p @ 60Hz (8-bit)
3. Connect the video generator to the display device using an HDMI cable or HDMI-toDVI adapter/cable.
4. Set the Power Switch to the ON position, and the Power LED should light up solid. If
using battery power, then the battery becomes low, the LED will start to ash.
5. If the display device is HDCP compliant, than the HDCP Error LED should NOT light
up. If the LED lights up, then there is a problem with HDCP verication.
6. The current test pattern should be display on the display device. Pressing the Test
Pattern Selection Switch will toggle through each of the available test patterns.

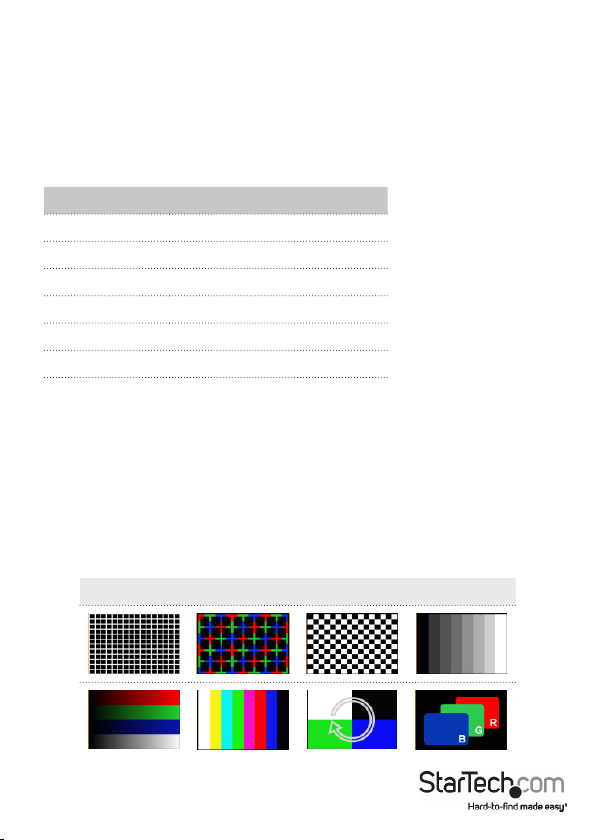

Test Patterns
Instruction Manual
3
Specications
Video Signal High Speed HDMI (1.3)
Connectors
LEDs
Video Resolution Support
HDCP Support HDCP 1.2
Number of Test Patterns 8
Maximum Cable Distance 5 m / 16.4 ft
Enclosure Material Plastic
Power Source
Operating Temperature
Storage Temperature
Humidity
Dimensions 132.0mm x 87.0mm x 28.0mm
Weight 150 g
1 x HDMI type A female
1 x DC Power
1 x Power/Battery Status
1 x HDCP Error
480p (60Hz, 8-bit),
720p (60Hz, 8/10-bit),
1080i (60Hz, 8-bit),
1080p (60Hz, 8/10/12-bit)
9V battery
9VDC, 600mA power adapter
0°C ~ 70°C (32°F ~ 158°F)
-20°C ~ 85°C (-4°F ~ 185°F)
0% ~ 95%
Instruction Manual
4
