Instruction Manual
Gigabit Multi Mode Fiber/Ethernet Media Converter
ET91000LC / ET91000LCGB / ET91000LCEU
ET91000SC
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
*ET91000LC shown
Packaging Contents
• 1 x Fiber Media Converter
• 1 x Power Adapter
• 1 x Instruction Manual
System Requirements
• Multi Mode ber cable
• Cat5e or better UTP Ethernet cable
• Gigabit network infrastructure
• Available AC electrical outlet
Installation
1. Connect the ber network cable to the LC connector on the ber
media converter. Using UTP Ethernet cable, connect the cable to
the RJ45 jack.
2. Set the Auto/Force switch on the media converter, to turn
auto negotiate on or o. If set to Force, set the Duplex
switch (full/half) according to the specications of your
networking equipment.
3. The following example illustrates the connection scheme
when connecting from a 1000Base-T Ethernet port of a hub/
switch to a 1000Base-SX/LX port of another hub/switch,
through the ber media converter:
4. The following example illustrates the connection scheme
when connecting from a 1000Base-T Ethernet port on a hub/
switch to a 1000BASE-T Ethernet Network Interface Card
(NIC) in a computer through the ber media converter:
For the most up-to-date information, please visit: www.startech.com
DIP Switch Conguration
Full/ Half:
The Fiber and UTP Duplex will be congured in Full duplex or Half
duplex.
NOTE: This switch includes an “Auto Reset” function so the powerreset is not necessary when any modication is made here.
LBT:
Loop-back test and get remote side status:
(OFF = Not Active, ON = Active).
NOTE: If the local side loop-back test is active, then LEDs (except
PWR) will all blink rapidly and refresh to display the remote side
status.
LLF:
Link Loss Forwarding (OFF = Not active, On = Active)
Auto/Force:
Auto negotiate duplex mode, or force Full/Half via DIP switches.
LED Conguration
LED Name Status Description
ON Unit is powered
PWR Power
Full Duplex Mode
FX Fiber Link
Loop-back
LBT
LLF
TX Ethernet Link
Test/Get CPE
status
Link Loss
Forwarding
OFF Unit is not powered
Blink LBT mode enabled
ON Fiber side Full Duplex Mode
OFF Half Duplex Mode
ON Fiber link is detected
OFF Fiber link is not detected
Blink Fiber activity
Blink Mode enabled
OFF Mode disabled
ON Mode enabled
OFF Mode disabled
ON UTP link is detected
OFF UTP link is not detected
Blink UTP activity
Manual Revision: 02/23/2011

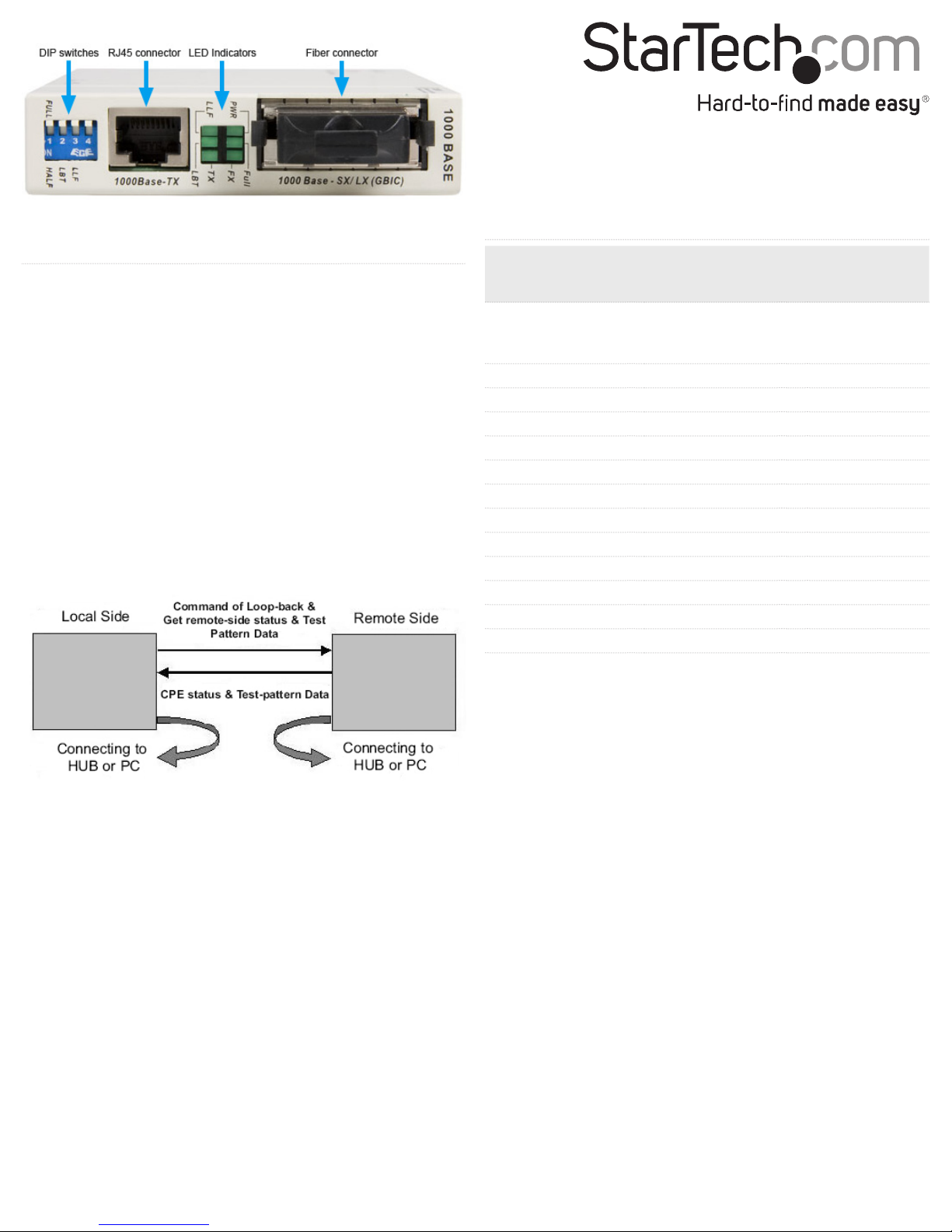

*ET91000SC shown
Loop-back Testing (LBT) & Get CPE status
This ber media converter incorporates a Fiber Loop-back Testing
feature which allows the system to conrm whether or not the ber
or Ethernet circuit loop is complete. The local-side unit will send out
a detect message which includes both command and test-pattern
data to the remote-side unit and request for an answer. When the
remote-side unit receives the message, it will attempt to recognize
the command.
After the remote-side unit recognizes the command message, it
will deliver the received test-pattern data back to the local-side
unit, completing the circuit loop, and enabling the rack mount unit
to easily monitor the remote side unit(s). The remote side status
message includes the ber-side link and duplex status, the UTP-side
link, duplex, speed, power, transmission and ber failure status.
Please note that while Loop-back testing is in process, the ber
side transmission will be halted. If the local-side cannot access the
remote-side while in Loop-back Testing mode, only the power LED
will ash (rapidly):
Specications
Connectors
Fiber Type
Optical Wavelength
Maximum Distance
Duplex Modes
Power Adapter
Enclosure Material
Supported Standards
Operating Temperature
Storage Temperature
Humidity
Dimensions
Weight
ET91000LC /
ET91000LCGB /
ET91000LCEU
1 x RJ45 Ethernet
1 x RJ45 Ethernet
2 x LC Fiber
1 x DC Power
1 x DC Power
Multi Mode
850nm
550m
Full/Half
12VDC, 500mA, center positive
Metal
IEEE 802.3ab, IEEE 802.3z
0°C ~ 50°C (32°F ~ 122°F)
-10°C ~ 70°C (14°F ~ 158°F)
10% ~ 90% RH
123.0mm x 86.0mm x 20.0mm
690g
ET91000SC
2 x SC Fiber
