10/100 Mbps Ethernet Over Coaxial LAN
Extender Kit - 2.4km
EOC110K
EOC110R
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 11/22/2011
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and
Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not
represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. Regardless
of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the property of
their respective holders.
Instruction Manual
Table of Contents
Introduction ...........................................................................................1
System Requirements .............................................................................................................................. 1
Package Contents .....................................................................................................................................1
Front View .................................................................................................................................................... 2
Rear View ...................................................................................................................................................... 2
Installation ..............................................................................................3
Hardware Installation ..............................................................................................................................3
Driver Installation ...................................................................................................................................... 3
Cable Lengths .........................................................................................4
Specications ..........................................................................................5
Technical Support ..................................................................................6
Warranty Information ............................................................................6
Instruction Manual
i
Introduction
The StarTech.com EOC110K Ethernet over Coax extender kit allows you to span a
10/100 network over extremely long distances (up to 1.2km) while still maintaining
high speed network connectivity. Allowing Ethernet connections over existing Coaxial
cable with little to no modication, providing a perfect solution for a broad range of
applications, including connecting isolated user stations from the same or separate
building, or overcoming infrastructure obstacles and distances (e.g. older stone/
concrete architecture) where new wiring or wireless may be impossible.
System Requirements
• 10/100Mbps compatible Ethernet network/equipment
• Coaxial cabling (RG-59/6/7/11)
• Available AC power outlet at converter box locations
Package Contents
• 2 x Ethernet over Coax converter box*
• 2 x Power Adapter*
• Instruction Manual
*EOC110R only contains one unit
Instruction Manual
1

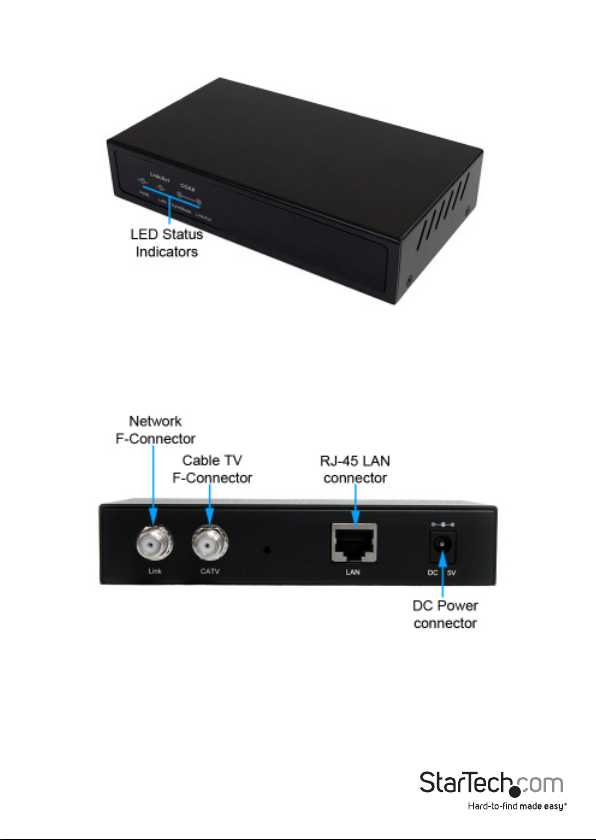

Front View
Rear View
Instruction Manual
2
Installation
Hardware Installation
NOTE: Both of the converter boxes in the EOC110K kit are identical, so they can be
installed at either end, in any order.
1. At one of the locations for the converter box, connect an RJ45 Ethernet cable from
the existing Ethernet network or computer network adapter to the “LAN” port on
the converter box.
2. Connect the coax cable to the “Link” F-Connector on the converter.
3. OPTIONAL: If also transmitting analog cable TV signals over the coax line, connect
the CATV F-Connector to a TV or TV receiver. Digital cable TV signals are not
supported.
4. Connect the included power adapter. The power LED should light up solid. The
LAN Link/Act LED should light up solid when successfully connected to an Ethernet
device on the “LAN” port.
5. Setup additional converter boxes by following the same Steps 1~4 for each location.
6. Once all units are setup, they should be able to automatically locate one another
over the coax cabling. The Coax Link and Sync LEDs should stay solid once
communication is established. The Coax Link LED will ash during communication.
7. The devices plugged into the “LAN” ports should now be able to communicate with
one another freely.
Driver Installation
No driver or software installation is required for these converters on any connected
computer systems.
Instruction Manual
3
Cable Lengths
Maximum bandwidth (Mbps) based on coaxial cable type and length.
Distance
100m ~ 700m
800m 128 144 144 144
900m 112 144 144 144
1000m 96 128 144 144
1100m 80 128 144 144
1200m 64 112 128 144
1300m 80 128 144
1400m 80 128 144
1500m 64 112 144
1600m 96 128
1700m 80 128
1800m 80 128
1900m 64 112
2000m 112
2100m 96
2200m 80
2300m 80
2400m 64
RF
Bandwidth
< 30MHz
RG-59 RG-6 RG-7 RG-11
144 144 144 144
Instruction Manual
4
Specications
Transmission Standards
Connectors
(per unit)
LEDs
(per unit)
Compatible Cabling RG-59, 6, 7, 11
Maximum Distance 2400m (RG-11)
Power Adapter
Operating Temperature
Storage Temperature
Humidity 10% ~ 90% RH
Dimensions (per unit) 280.0mm x 138.0mm x 76.8mm
Weight (per unit) 320g
ITU G.9954, IEEE802.3, IEEE802.3u,
IEEE802.3x
2 x F-Connector female
1 x RJ45 female
1 x DC Power
1 x Power
1 x LAN Link/Activity
1 x Coax Link/Activity
1 x Coax Sync
5VDC, 2000mA, center positive,
type M plug
0°C ~ 55°C (32°F ~ 131°F)
-10°C ~ 65°C (14°F ~ 149°F)
Instruction Manual
5
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to
provide industry-leading solutions. If you ever need help with your product, visit
www.startech.com/support and access our comprehensive selection of online tools,
documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty Information
This product is backed by a two year warranty.
In addition, StarTech.com warrants its products against defects in materials
and workmanship for the periods noted, following the initial date of purchase.
During this period, the products may be returned for repair, or replacement with
equivalent products at our discretion. The warranty covers parts and labor costs only.
StarTech.com does not warrant its products from defects or damages arising from
misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their
ocers, directors, employees or agents) for any damages (whether direct or indirect,
special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,
or any pecuniary loss, arising out of or related to the use of the product exceed the
actual price paid for the product. Some states do not allow the exclusion or limitation
of incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
