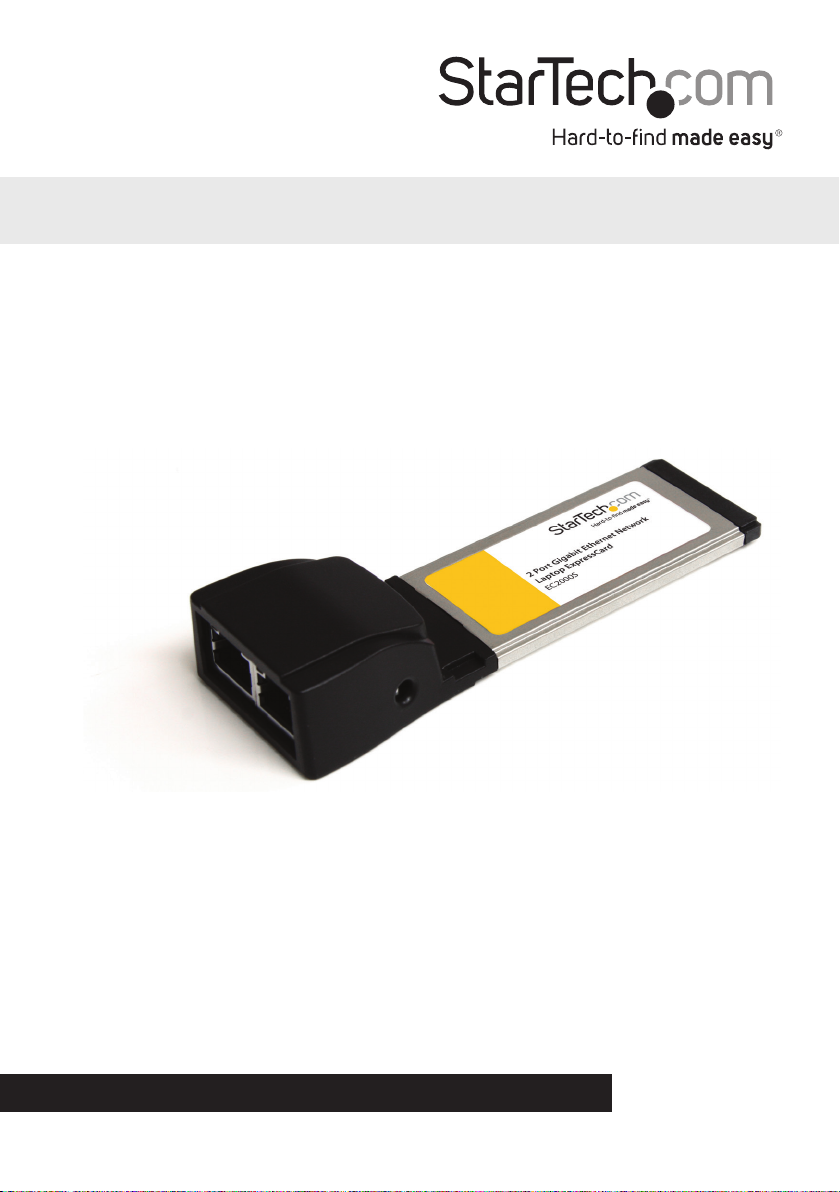

ExpressCard Gigabit Ethernet Network Card
EC2000S
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 08/31/2011
*actual product may vary from photo
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
o and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names
and/or symbols of third-party companies not related in any way to StarTech.com. Where they
occur these references are for illustrative purposes only and do not represent an endorsement of
a product or service by StarTech.com, or an endorsement of the product(s) to which this manual
applies by the third-party company in question. Regardless of any direct acknowledgement
elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks,
registered trademarks, service marks, and other protected names and/or symbols contained in this
manual and related documents are the property of their respective holders.
Instruction Manual
Table of Contents
Introduction ........................................................................................................ 1
Packaging Contents ............................................................................................................................................1
System Requirements ........................................................................................................................................ 1
Installation .......................................................................................................... 2
Hardware Installation ......................................................................................................................................... 2
Driver Installation ................................................................................................................................................2
Specications ...................................................................................................... 4
Technical Support .............................................................................................. 5
Warranty Information ........................................................................................ 5
Instruction Manual
i
Introduction
The EC2000S 2-port ExpressCard Gigabit Ethernet Network Adapter Card adds two
additional 10/100/1000 Mbps Ethernet ports to an ExpressCard enabled laptop or
small form factor system. This can enable easily connecting to two separate physical
networks simultaneously with dedicated bandwidth or providing a dedicated network
port to a virtual machine running on the laptop.
Supporting features such as NDIS5 checksum and large send ooad for lower CPU
utilization, Wake-on-LAN (WOL) and Remote Wake-up power management, jumbo
frames and VLAN tagging, this card is ready to handle a wide variety of scenarios.
With a 34mm ExpressCard form factor, this compact and portable card will t in any
ExpressCard enabled system.
Packaging Contents
• 1 x ExpressCard/34 Ethernet Adapter
• 1 x Driver CD
• 1 x Instruction Manual
System Requirements
• ExpressCard enabled computer system with available ExpressCard slot
• Microsoft® Windows® 2000/XP/Server 2003/Vista/Server 2008 R2/7 (32/64-bit), or
Apple® Mac OS® 10.4/10.5 (Intel), or Linux
®
Instruction Manual
1
Installation
Hardware Installation
The ExpressCard adapter will simply slide into the ExpressCard slot on any compatible
system. Push the card all the way in, until it ‘clicks’ and locks into place. To eject the card,
simply push the card further into the slot until it clicks, and then release and it will then
be automatically ejected from the slot.
NOTE: Some ExpressCard/54 slots do not rmly hold an ExpressCard/34 card so a
34mm to 54mm stabilizer bracket may be necessary (StarTech.com ID: ECBRACKET).
Driver Installation
Windows 2000/XP/Server 2003/Vista/Server 2008 R2/7
1. Upon starting Windows and/or inserting the ExpressCard, if the “Found New
Hardware” wizard appears on the screen, cancel/close the window or choose not
to install the drivers and insert the included Driver CD into the computer’s CD/DVD
drive.
2. AutoPlay may automatically launch and display all of the folders on the CD or give
you the option to view les and folders on the CD. If not, open “My Computer” and
double-click on the CD/DVD drive.
3. Navigate to the folder “\LAN\Realtek\RTL8111B_8111C_8111E”, then the folder for
your operating system version. Double-click the le “Setup.exe”.
4. This will launch the driver Installation wizard. Continue through the wizard and once
complete, driver will be installed.
5. Reboot the computer and the network adapter will be ready for use.
Mac OS 10.4/10.5
1. Upon starting Mac OS or inserting the ExpressCard, insert the included Driver CD into
the computer’s CD/DVD drive.
2. Open a Finder window, and click on the CD icon in the Sidebar.
3. Navigate to the directory “\LAN\Realtek\RTL8111B_8111C_8111E”.
4. Enter the folder for your operating system version and double-click the driver
installation le (*.pkg).
5. This should launch the driver Installation wizard. Continue through the wizard and
once complete, all the necessary drivers will be installed.
6. Reboot the computer to complete the installation and check the “Network”
preferences in “System Preferences” to verify and congure the network adapter.
Instruction Manual
2
Specications
Host Interface ExpressCard 1.0
Form Factor ExpressCard/34 (34mm)
Chipset ID Realtek RTL8111E
External Connectors 2 x RJ45 Ethernet female
LEDs
Supported Standards
Maximum Data Transfer
Rate
Auto MDIX Yes
Full Duplex Support Yes
Buer Size 48 KB
Operating Temperature 0°C ~ 55°C (32°F ~ 151°F)
Storage Temperature -20°C ~ 85°C (-4°F ~ 185°F)
Humidity 5% ~ 95% RH
Dimensions 115.8mm x 34.0mm x 21.0mm
Weight 150g
Compatible Operating
Systems
Windows 2000/XP/Server 2003/Vista/Server 2008
R2/7 (32/64-bit), Mac OS 10.4/10.5, Linux
2 x Gigabit Link
2 x Link/Activity
IEEE 802.3, IEEE 802.3u,
IEEE 802.3ab, IEEE 802.3x,
IEEE 802.1Q
1000 Mbps
Instruction Manual
3
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to provide industryleading solutions. If you ever need help with your product, visit www.startech.com/support and
access our comprehensive selection of online tools, documentation, and downloads.
Warranty Information
This product is backed by a lifetime warranty.
In addition, StarTech.com warrants its products against defects in materials and workmanship for
the periods noted, following the initial date of purchase. During this period, the products may be
returned for repair, or replacement with equivalent products at our discretion. The warranty covers
parts and labor costs only. StarTech.com does not warrant its products from defects or damages
arising from misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers,
directors, employees or agents) for any damages (whether direct or indirect, special, punitive,
incidental, consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss,
arising out of or related to the use of the product exceed the actual price paid for the product.
Some states do not allow the exclusion or limitation of incidental or consequential damages. If
such laws apply, the limitations or exclusions contained in this statement may not apply to you.
Instruction Manual
4
