410VDSLEXT2
1 Port to 4 Port 10/100Mbps VDSL2 Ethernet Extender
Kit over Single Pair Wire – 1 km
*actual product may vary from photos
Instruction Manual
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Changes or modications not expressly approved by StarTech.com could void the user’s
authority to operate the equipment.
Industry Canada Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
CAN ICES-3 (B)/NMB-3(B)
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not
represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. Regardless
of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the property of
their respective holders.
Instruction Manual
i
Table of Contents
Introduction ............................................................................................ 1
Packaging Contents .................................................................................................................................1
System Requirements ..............................................................................................................................1
Product Overview ..................................................................................2
Installation .............................................................................................4
Hardware Installation .............................................................................................................................4
DIP Switch Settings - Transmitter ........................................................5
Conguration ..........................................................................................7
Web Interface ............................................................................................................................................. 7
Welcome Screen ........................................................................................................................................ 7
System ........................................................................................................................................................... 8
Port Management ..................................................................................................................................... 11
VLAN .............................................................................................................................................................. 14
QoS Setting ................................................................................................................................................. 16
Security Filter .............................................................................................................................................. 19
VDSL Setting ............................................................................................................................................... 20
Connector Architecture ......................................................................................................................... 22
Resetting Your Device .............................................................................................................................. 23
Appendix ...................................................................................................................................................... 23
Technical Support ..................................................................................25
Warranty Information ............................................................................ 25
Instruction Manual
ii
Instruction Manual
1
Introduction
Packaging Contents
• 1x 1 Port VDSL2 Ethernet Transmitter
• 1x 4 Port VDSL2 Ethernet Receiver
• 2x Universal Power Adapters (NA/UK/EU)
• 1x RJ45 to VDSL2 Cable
• 1x RJ11 Cables
• 1x Instruction CD
• 1x Instruction Manual
System Requirements
• 10/100 Mbps Ethernet Network
• Available AC electrical outlets
• RJ11 Cable or RJ11 lines in building infrastructure
Instruction Manual
2
DC Input
LED Indicators
LED Indicators
RJ11/RJ45 VDSL
Line Port
RJ11 VDSL Line Port
RJ45
Ports
DC Input
Reset
Receiver Unit
Transmitter Unit
DIP
Switch
RJ45 Port
Transmitter Unit
Receiver Unit
Product Overview
Front / Side View
Rear View
Instruction Manual
3
LED Displays
Transmitter Unit
LAN LED Display
LED Blinking ON OFF
1 Activity Link up Link down
2 100 Mbps 10 Mbps
3 Full duplex Half duplex
VDSL LED Display
LED Blinking ON OFF
1 Activity
Device
Power On
Device Power O
2
-
CPE Mode CO Mode
3
Slowly: Idle
Quickly: Training
Linked Oine
LED Blinking ON OFF
PWR
Device Power
On
Device
Power O
SYS
System Activated
System
Running
CO CO Mode On
CPE CPE Mode On
LINK
Activity
Slowly: Start Connection
Quickly: Data Transmit
Linked
ALM Connection Error
Receiver Unit
Instruction Manual
4
Installation
Hardware Installation
Transmitter Unit
1. Connect the provided power adapter from an AC electrical outlet to the DC Input on
the Transmitter Unit. The “PWR” LED should light up solid.
2. Set all four of the DIP switches to the upward (OFF) position. This places the unit in
CO mode.
3. Connect an RJ45 Ethernet cable to the RJ45 LAN Port on the Transmitter Unit.
4. Connect the other end of the Ethernet cable into your Ethernet network device (eg:
switch, Ethernet modem).
5. Connect an RJ11 phone cable into the VDSL Port on the Transmitter Unit.
6. Connect the opposite end of the RJ11 cable to the DSL Port on the Receiver Unit (or
to your buildings RJ11 phone line infrastructure, depending on your setup).
Optional: Congure DIP switches 2 through 4 as necessary (see “DIP Switch Settings”
section below).
Receiver Unit
1. Place the Receiver Unit at the end-point location.
2. Connect the provided power adapter from an AC electrical outlet to the DC Input on
the Receiver Unit. The “PWR” and “SYS” LED should light up solid.
3. If not previously completed, connect the RJ11 cable that was inserted into the RJ11
VDSL Port on the Transmitter Unit directly to the DSL Port on the Receiver Unit (or
from your buildings existing RJ11 analog telephone wiring, depending on the setup
from step 6 above.
4. If the Transmitter and Receiver Units are able to successfully communicate with each
other, the “LINK” LED should light up solid.
5. Connect each computer or Ethernet networking device to an available RJ45 Port
on the Receiver Unit. The respective “LAN” LED on each individual RJ45 Port should
light up to indicate a successful physical connection.
Instruction Manual
5
DIP Switch Settings - Transmitter
The Transmitter Unit has a 4-position DIP switch for conguration of Side, Channel,
Rate Limit, and SNR.
For initial setup, DIP switch 1 is usually set to the upward (OFF) position, ensuring the
unit is set to CO mode (Receiver Unit set to CPE mode by default).
When using the 410VDSLEXT2, one end (Transmitter or Receiver) must always be set to
“CO” mode, while the opposite end must always be set to “CPE” mode.
Setting each unit to CO or CPE mode is usually based on which direction you want
the most bandwidth delivered. “Download” bandwidth, data sent from CO to CPE, is
generally higher than “Upload” bandwidth from CPE to CO.
• If you need higher bandwidth from the Transmitter Unit to the Receiver Unit, set DIP
switch 1 to the upward (OFF) position.
• If you need higher bandwidth from the Receiver Unit to the Transmitter Unit, set DIP
switch 1 to the downward (ON) position.
See the “Conguration Mode Select” section below to set the Receiver Unit to the
appropriate CO or CPE mode based on the mode that was set on the Transmitter Units
DIP Switch setting.

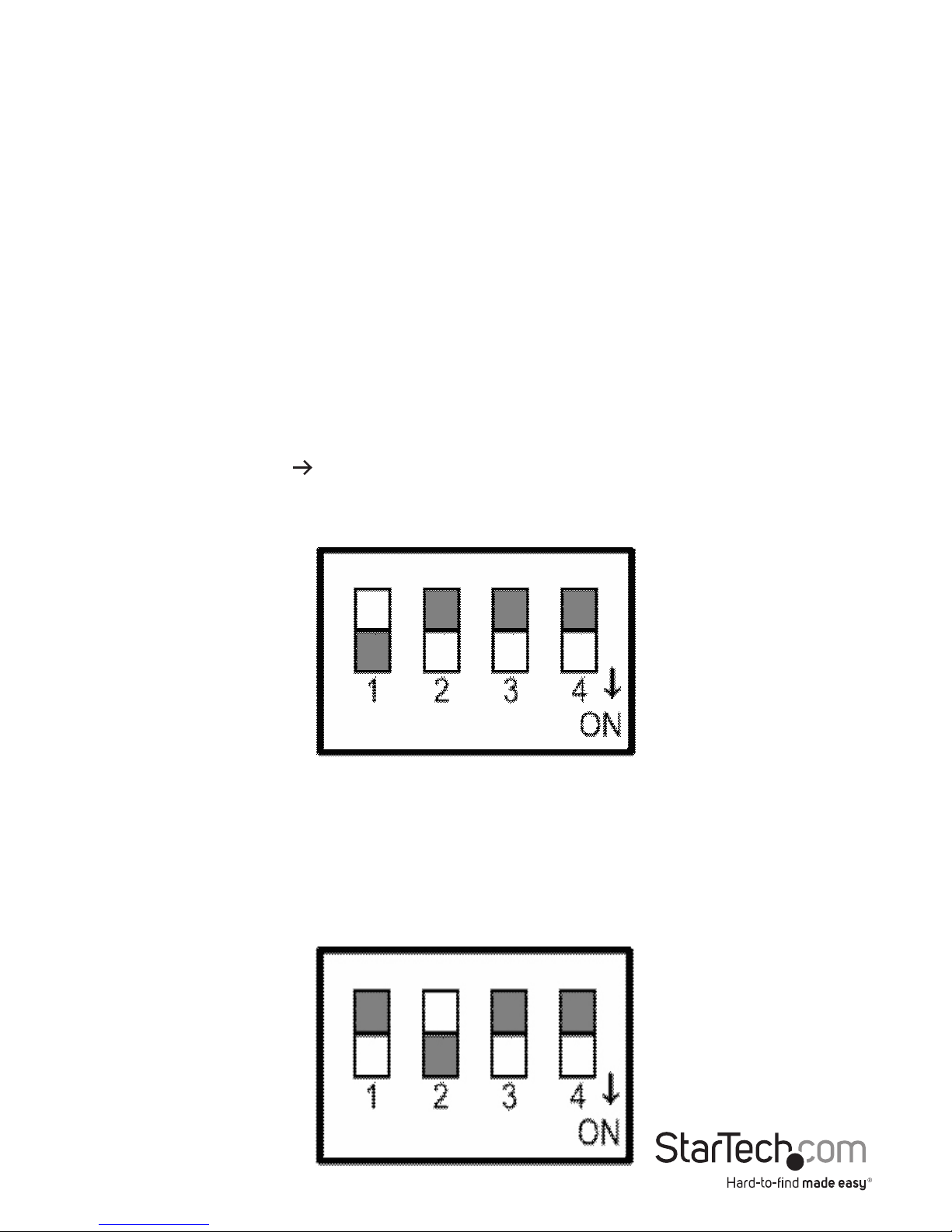

Pin 1 - CO, CPE Switch
OFF: If Pin 1 is in the OFF position, the Transmitter Unit will operate in Central Oce
(CO) mode.
ON: If Pin 1 is in the ON position, the Transmitter Unit will operate in Customer Premise
Equipment (CPE) mode.
Pin 2 - Interleave Noise Protection
Instruction Manual
6

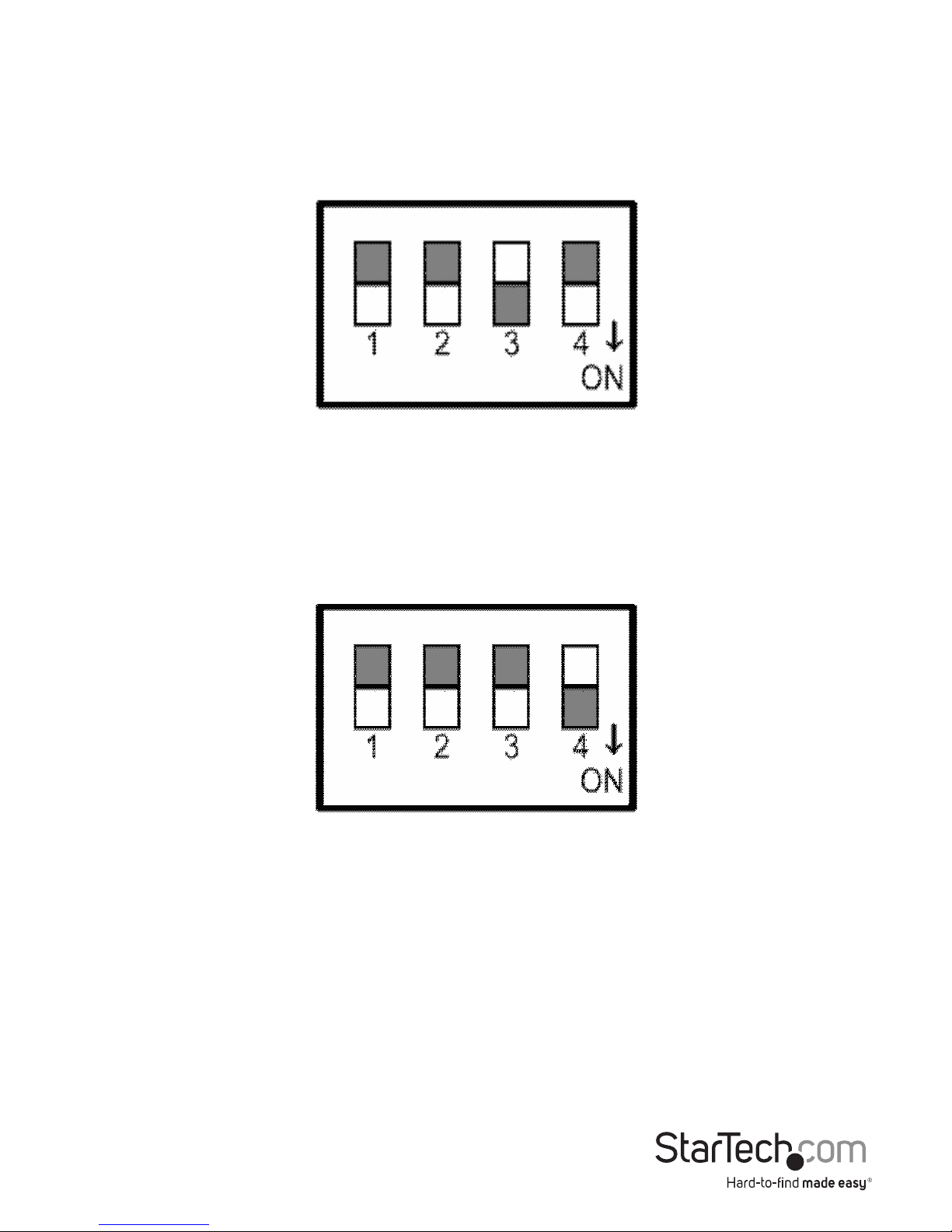

Pin 4 - General Protection
OFF: If Pin 4 is in the OFF position, the Transmitter Unit will operate with a SNR ratio up
to 9 dB.
ON: If Pin 4 is in the ON position, the Transmitter Unit will operate with a SNR ratio of
6 dB.
OFF: If Pin 2 is in the OFF position, the Transmitter Unit will operate in Interleave mode,
with communication protection for up to 250ms of impulse noise with latency less
than 6 ms
ON: If Pin 2 is in the ON position, the Transmitter Unit will operate in Fast mode, with
direct data transmissions having less than 1ms of latency.
Pin 3 - Band Plan
OFF: If Pin 3 is in the OFF position, the Transmitter Unit will operate in Symmetric
mode, with both downstream and upstream transmissions operating on the G.997
band plan.
ON: If Pin 3 is in the ON position, the Transmitter Unit will operate in Asymmetric mode,
with asymmetric short range transmissions operating at the highest available line rate.
Instruction Manual
7
Conguration
Web Interface
The Receiver Unit has a built-in web interface for conguring the settings. There is
no software installation required. To access the Web Interface, open a web browser
(Internet Explorer, Chrome, Firefox, etc.), and navigate to “http://192.168.1.1”
Note: If you had previously changed the IP address, login to the modied IP address.
You will then see a login page. Login to the system with your user name and
password.
The default login information is:
ID: admin
Password: admin
Welcome Screen
After you complete the login process, a main page will be shown. There are ve square
icons at the top-right of the web interface that show the current port status.
Management options are shown on the left side of the web interface. Click on each
heading to customize your 410VDSLEXT2.
Instruction Manual
8
System
Authentication Conguration
Change your login name and password in this area. Press the “Update” button to save
your changes.
System IP Conguration
Set your IP conguration settings, including IP address, subnet mask and gateway.

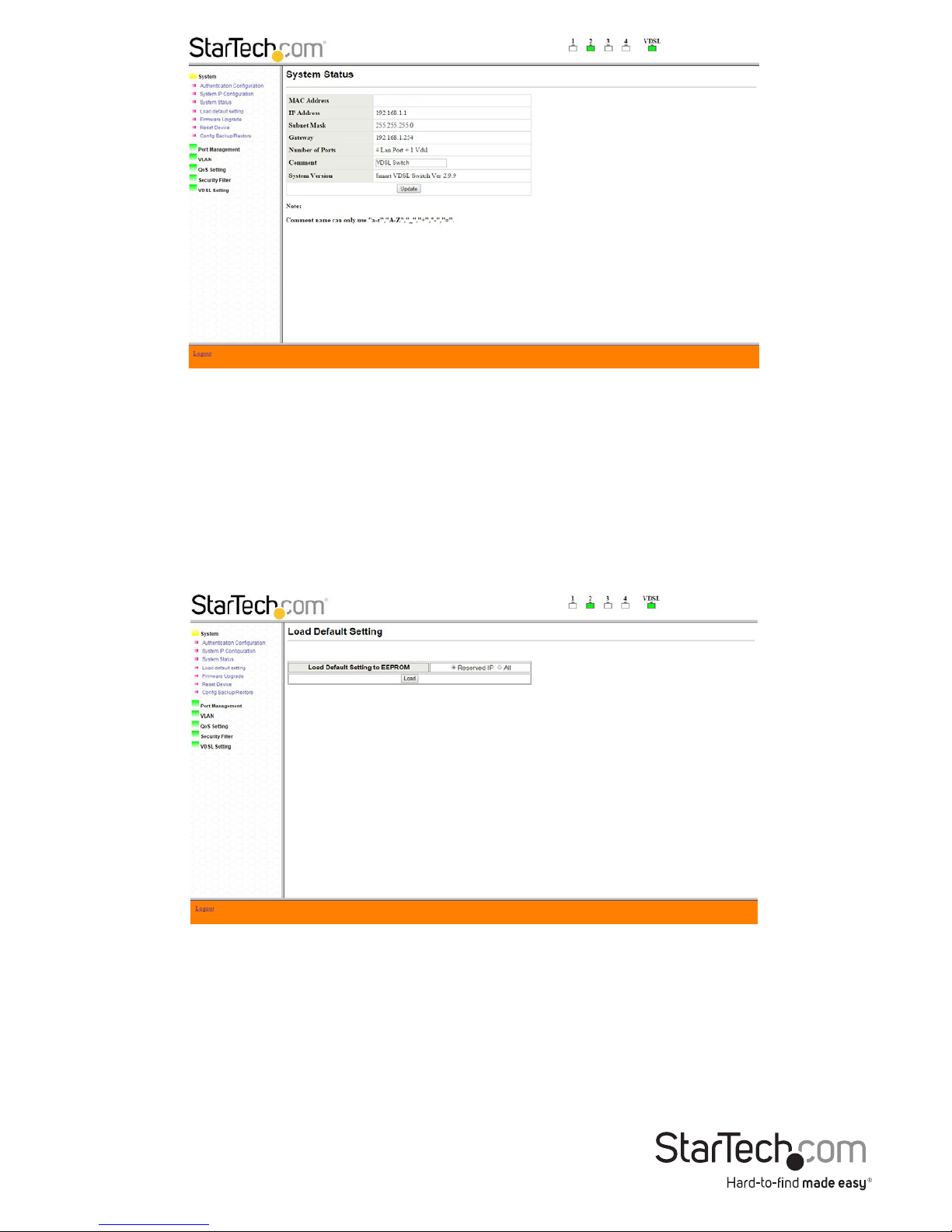

System Status
Review hardware and software information and update device description in the
“Comment” eld if desired.
Instruction Manual
9
Load Default Setting
Provides two methods to restore the 410VDSLEXT2 to default settings.
1. Reserved IP: Allows you to reload the default factory settings without changing
your IP address.
2. All: All settings will be restored to the original default settings, including IP address.
Once you choose a method, press the “Load” button to activate.
Reset Device
Restarts the 410VDSLEXT2. Click on “Conrm” to restart.
Instruction Manual
10
Conguration Backup/ Restore
To create a backup of your settings, click the “Download” button and a pop-up will
display, letting you choose a location to save a backup le.
To recovery a backup, click the “Choose File” button and choose which le to restore
from. Enter your password and click on the “Update” button to start the restore process.
Instruction Manual
11
Port Management
Port Conguration
Set port congurations and select which ports to apply these settings to. Select all four
ports to apply each port with the same settings. Press the “Submit” button to apply the
new settings. All information will be updated in the displayed status table.
Flow Control Setting
Choose to Enable or Disable “Backpressure” and/or “IEEE 802.3x Flow Control”. Click the
“Submit” button to save your settings.
Instruction Manual
12
Port Mirroring
Choose to mirror congurations using two settings, click on “Change Mirror Mode”
button to change your mirror setup style.
In order to use the port mirroring function, you will need the following information:
1. Mirror Port: Select a mirror port to monitor the trac source.
2. Mirror Mode: Modes 1 and 2
• Disable: Port mirroring function is disabled.
• Rx: Copy the incoming packets of the selected source port to the
selected mirror port.
• Tx: Copy the outgoing packets of the selected source port to the selected
mirror port.
• Tx&Rx: Copy both incoming and outgoing packets from the selected
source port to the selected mirror port.
• Mirror source-destination pair: Tx port and Rx port must be dierent
ports.
3. Source Port: The source port trac which will be copied to the mirror port.
4. Destination Port: Only available in Mode 2.
Mode 1
Has four “Mirror Mode” options: Disable, Rx, Tx, and Tx&Rx. In this mode, select your
“Mirror Port Number,” “Source Port Number,” and “Mirror Mode.” Click the “Update”
button to save your settings.
Mode 2
Has two “Mirror Mode” options: Disable or Mirror source-destination pair. In addition,
you need to choose your “Destination Port” and “Source Port.” Click the “Update”
button to save your settings.
Instruction Manual
13
Bandwidth Control
Set bandwidth control on individual ports. Select the port that you wish to control, and
then enter the Tx and Rx rates. Click on the “Update” button to save the settings you’ve
entered, or click on the “Load Default” button to restore settings to the default value
for the selected port. Once settings are saved, the table will show the current values set
up for each port.
Broadcast Storm Control
This section lets you block excessive broadcast packets. Choose which port you wish
to enable protection. Select Enable for the “Broadcast Storm” option to enable this
function, and enter a value for “Threshold”. Broadcast packets will be dropped when
the number is more than entered threshold value.
Instruction Manual
14
CRC Counter
Displays the number of CRC errors while the 410VDSLEXT2 is active. Click the “Clear”
button to reset the counter and the “Refresh” button to update the latest counter
information.
VLAN
The 410VDSLEXT2 provides two options for VLAN setup. By “Port Base” or by “Tag
Base.” If you choose to set up VLAN based on Port, the settings in Tag Base will not be
activated.
Port Base VLAN
Ensure your “VLAN Mode” is correct. If incorrect, click the “Change Mode” button to
switch VLAN mode.
Choose “Port NO” rst, and then select which port should be in the VLAN member. Click
on the “Update” button to save your changes, and click on the “LoadDefault” button to
restore the default value. All current/updated information will be shown in the table.
Instruction Manual
15

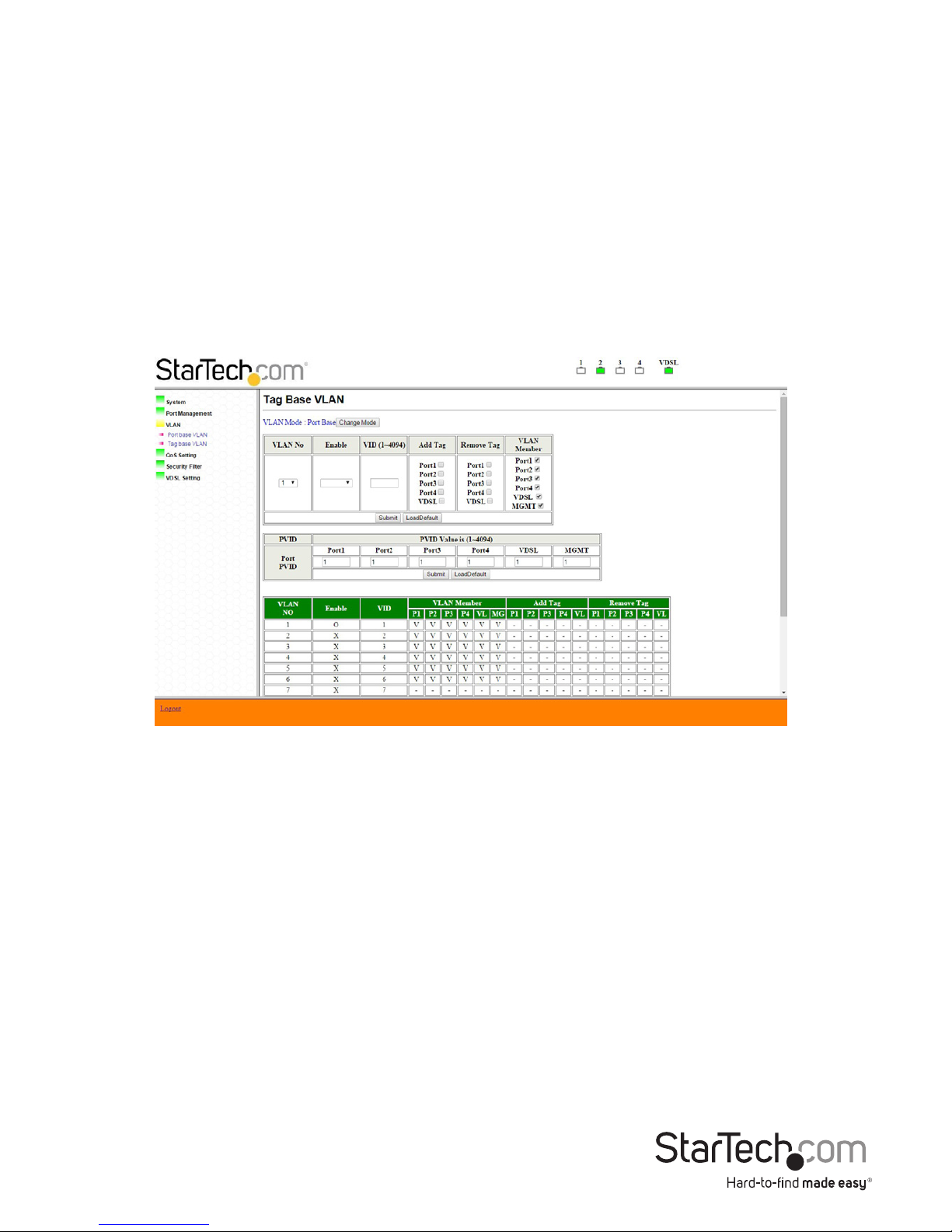

Tag Base VLAN
Select “Tag Base” from the “VLAN Mode” using the “Change Mode” button as need.
In Setup Area 1, you can choose the VLAN number, and which port you want to add or
remove a tag. In addition, you can check all the VLAN members you wish to have in this
VLAN number.
Click on the “Submit” button to save your changes.
A message box saying “Control port will not be able to connect devices” may be
displayed due to some receivers not recognizing VLAN tagging, so you may be not able
to connect to a tagged port.
In Setup Area 2, you can set the PVID of each port. If your PVID is invalid, a warning
message “Invalid VLAN status” will be shown.
Instruction Manual
16
QoS Setting
Priority Classication
Enable QoS function based on the selected priority mode. If you need to start QoS
function, please make sure you visit this page rst and enable the priority mode you
wish to apply; otherwise, the QoS function will not be activated.
Queue Scheduling Mode
There are two modes in “Queue Scheduling Mode”:
1. Strictly Priority: Services the queues based on priority only. As trac comes into
the modem, trac on the highest priority queue, Q3 is transmitted rst. When that
queue empties, trac on the next highest-priority queue, Q2 are transmitted until
Q2 empties, and then trac is transmitted on Q1 and so on. If a higher priority
queue is never empty, then trac on the lower priority will not be sent. The SP class
is typically for video applications that require a xed amount of bandwidth to be
considered for good quality.
2. Weight-Round-Robin: Services on a rotating basis and is activated only when a
port has more trac than it can handle. A queue is given an amount of bandwidth
irrespective of the incoming trac on that port. The queue then moves to the back
of the list. The next queue is given an equal amount of bandwidth, and then moves
to the end of the list, and so on, depending on the number of queues being used.
This works in a looping fashion until a queue is empty.
Choose what kind of algorithm you wish to apply and press the “Update” button to
save the settings.
Instruction Manual
17
Port-Based Priority
Two items should be selected in order to set this priority up.
1. Port number: Choose the port number you wish to apply this policy.
2. Queue number: Choose which queue you wish the selected port to belong to.
VLAN Tag Priority
You can assign VLAN priority and its corresponding queue number in this section.
Instruction Manual
18
TOS/DSCP Priority
You can assign a queue with a DSCP priority. Click on the “Submit” button and the
information will be saved and updated to the table below.
Note: In order to allow QoS running TOS/DSCP priority, make sure you change the
“Priority Classication” option to “TOS/DSCP Priority” rst.

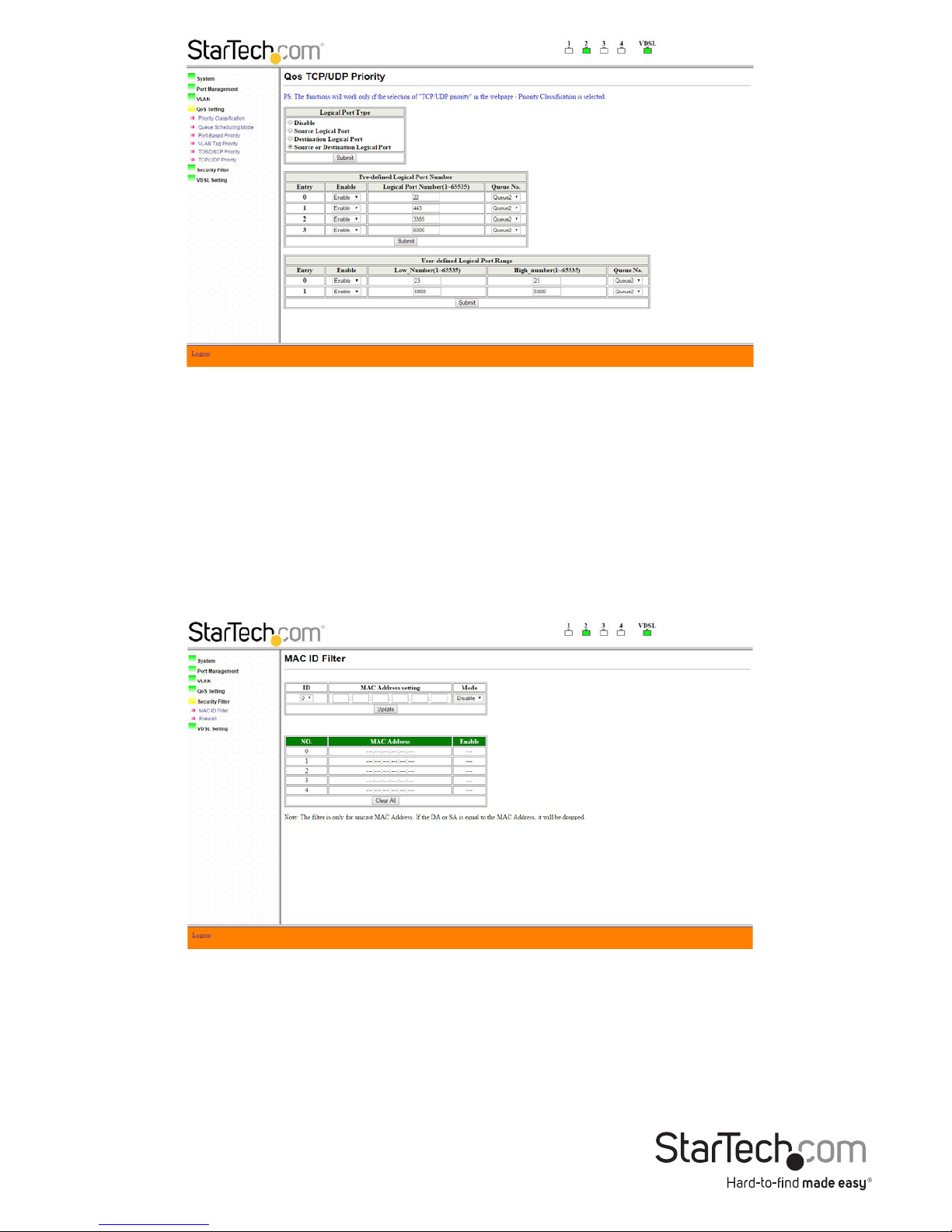

TCP/UDP Priority
First, choose the “Logical Port Type” and press the “Submit” button to start this function.
Then, if you want to run this priority based on pre-dened logical port, assign the
“Pre-dened Logical Port Number” entry and click on the “Submit” button to save the
changes.
If you want to activate this priority by user-dened logical port, you need to assign the
“User-dened Logical Port Range” section and press the “Submit” button to save your
modications.
Note: In order to allow QoS running TCP/UDP priority, make sure you change the
“Priority Classication” option to “TCP/UDP Priority” rst.
Instruction Manual
19
Security Filter
MAC ID Filter
Five MAC addresses can be stored in the “MAC ID Filter”. Choose which entry number
you wish to save the MAC and enter the MAC address in the “MAC Address setting”
eld, as well as its mode.
The below table is then updated to display the MAC address you just saved. If you wish
to remove all the MAC addresses in the table, click on the “Clear All” button to remove
every address.
Firewall
In this section, you can modify data trac to provide greater bandwidth control to
specied IP addresses. You can assign settings to either a specic IP address or to a
range of IP addresses, letting you control, forward, and lter data packets to the IP
addresses specied.
Instruction Manual
20
Specic IP Address: Choose which entry you wish to add this set of data. In this mode, you
need to provide specic IP addresses. Click “Submit” once you nish your modication.
IP Address Range: Click on the “Change to Range Mode” button to switch edit sections.
Then set a range of IP addresses by entering the “start” IP address and the “end” IP address.
VDSL Setting
Port Setting
In this section, you can change VDSL port settings. After you change the settings, click
the “Submit” button to update the 410VDSLEXT2. Click the “Refresh” button to get the
latest status information.
Instruction Manual
21
Mode Select
In this section, you must set the Receiver to CO (Central Oce), or CPE (Customer
Premises Equipment) operating modes. Select the Receiver mode, and once selected,
click the “Submit” button to save the changes.
When using the 410VDSLEXT2, one end (Transmitter or Receiver) must always be set to
“CO” mode, while the opposite end must always be set to “CPE” mode.
Setting each unit to CO or CPE mode is usually based on which direction you want
the most bandwidth delivered. “Download” bandwidth, data sent from CO to CPE, is
generally higher than “Upload” bandwidth from CPE to CO.
• If you need higher bandwidth from the Transmitter Unit to the Receiver Unit, set the
mode to CPE.
• If you need higher bandwidth from the Receiver Unit to the Transmitter Unit, set the
mode to CO.
Note: This setting will restart the 410VDSLEXT2
See the “DIP Switch Settings” section above to set the Transmitter Unit to the
appropriate CO or CPE mode based on the mode set for the Receiver Unit.
Instruction Manual
22
Connector Architecture
Ethernet Ports
The RJ45 Ethernet Port interface is an 8-pin modular jack. The table below displays the
pinout assignments.
Pin Number Assignment (MDI-X)
1 RX+; Receive data +
2 RX-; Receive data -
3 TX+; Transmit data +
4 Not used
5 Not used
6 TX-; Transmit Data -
7 Not used
8 Not used
VDSL Ports
The VDSL Port is standard 8-pin modular jack. The table below displays the pinout
assignments.
Pin Number Assignment (MDI-X)
1 Not used
2 Not used
3 Not used
4 ANALOG Input/Output
5
ANALOG Input/Output
6 Not used
7 Not used
8 Not used
Instruction Manual
23
Resetting Your Device
There is a reset button on the rear of the 410VDSLESXT2 Receiver Unit. Please use a
narrow item such as a pencil or paper clip, and gently press the Reset Button for several
seconds. This will reset all the congurations and you can login to the web interface
using the default IP address, ID, and Password.
Note:
1. Press the button for 2 seconds: Reboots the 410VDSLEXT2 without resetting any
conguration settings.
2. Press the button for 8 seconds: Loads the default factory settings and reboots the
410VDSLEXT2.
Appendix
Default IP Address: http://192.168.1.1
Default Login Information: Default login name is “admin” and the password is “admin”
Term Denition
QoS
Quality of Service
Refers to resource reservation control mechanisms rather than the achieved service
quality. QoS is the ability to provide dierent priority to dierent applications, users,
or data ows, or to guarantee a certain level of performance to a data ow.
SNR
Signal-to-noise Ratio
Is measure used in science and engineering to quantify how much a signal has
been corrupted by noise. It is dened as the ratio of signal power to the noise
power corrupting the signal. A ratio higher than 1:1 indicates more signal than
noise
TOS/
DSCP
Type of Service/ Diserv Codepoint
This uses the upper six bits in the ToS (Type of Service) byte to mark priority trac.
Hence, there are 64 possible codepoints.
VLAN
Tagging
VLAN tagging (IEEE 802.1Q) is a networking standard written by the IEEE 802.1
work group allowing multiple bridged networks to transparently share the same
physical network link without leakage of information between networks. VLAN
tagging denes the meaning of a Virtual LAN (VLAN) with respect to the specic
conceptual model underpinning bridging at the MAC layer and to the IEEE 802.1D
spanning tree protocol. This protocol allows for individual VLANs to communicate
with one another with the use of a switch with Layer-3 capabilities, or a router.
Instruction Manual
24
Instruction Manual
25
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to
provide industry-leading solutions. If you ever need help with your product, visit
www.startech.com/support and access our comprehensive selection of online tools,
documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty Information
This product is backed by a two year warranty.
In addition, StarTech.com warrants its products against defects in materials
and workmanship for the periods noted, following the initial date of purchase.
During this period, the products may be returned for repair, or replacement with
equivalent products at our discretion. The warranty covers parts and labor costs only.
StarTech.com does not warrant its products from defects or damages arising from
misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their
ocers, directors, employees or agents) for any damages (whether direct or indirect,
special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,
or any pecuniary loss, arising out of or related to the use of the product exceed the
actual price paid for the product. Some states do not allow the exclusion or limitation
of incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
Instruction Manual
26
Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.
StarTech.com is your one-stop source for every connectivity part you need. From
the latest technology to legacy products — and all the parts that bridge the old and
new — we can help you nd the parts that connect your solutions.
We make it easy to locate the parts, and we quickly deliver them wherever they need
to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to
the products you need in no time.
Visit www.startech.com for complete information on all StarTech.com products and
to access exclusive resources and time-saving tools.
StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology
parts. StarTech.com was founded in 1985 and has operations in the United States,
Canada, the United Kingdom and Taiwan servicing a worldwide market.
Loading...
