Cabinet Console
1UCABCONS
1UCABCONS17
1UCABCONS19
*actual product may vary from photo
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 02/10/2011
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instruc tions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
o and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names
and/or symbols of third-party companies not related in any way to StarTech.com. Where they
occur these references are for illustrative purposes only and do not represent an endorsement of
a product or service by StarTech.com, or an endorsement of the product(s) to which this manual
applies by the third-party company in question. Regardless of any direct acknowledgement
elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks,
registered trademarks, service marks, and other protected names and/or symbols contained in this
manual and related documents are the property of their respective holders.
Table of Contents
Introduction ..............................................................................................................................1
System Requirements ............................................................................................................2
Assembly ....................................................................................................................................5
Installation .................................................................................................................................10
Connecting to a USB Controlled Computer .............................................................10
Connecting to a PS2 Controlled Computer ..............................................................11
Connecting to a KVM Switch .........................................................................................11
Operation ...................................................................................................................................12
Front Panel Functions .......................................................................................................12
Keyboard Replacement .........................................................................................................13
Touchpad Replacement ........................................................................................................14
Specications ............................................................................................................................15
Technical Support ...................................................................................................................17
Warranty Information ............................................................................................................17
Screen Quality & Pixel Policy ...............................................................................................17
Instruction Manual
i
Introduction
Thank you for purchasing a StarTech.com 1U Cabinet Console. This console
oers the ultimate in computer management, especially for applications
where space is at a premium.
The console drawer can be pulled out from the rack for operation, on sliding
rails that latch in the extended position; when not in use, the Active Matrix
TFT display can be folded down, locked, and secured while pushed in. With
dierent rear bracket & extension kits, the console can be mounted on rack
cabinets of various depths.
Features
• 1UCABCONS: Flip-open 15” TFT LCD panel supports
1024 x 768 @60/70/75
1UCABCONS17: Flip-open 17” TFT LCD panel supports
1280 x 1024 @60/70/75
1UCABCONS19: Flip-open 19” TFT LCD panel supports
1280 x 1024 @60/70/75
• Standard 19” 1U rack drawer
• Modular design
• Full 105 key, low-prole, sturdy keyboard built-in
• Standard connectors for PC connection
• Supports replaceable keyboard, mouse and module selection
• Locking mechanism locks the drawer when pulled out, pushed in or
folded down
• For rack cabinets with depth from 20” (50cm) and up (with appropriate rear
bracket and extension kit)
• Quick and easy installation
• Optional KVM switches available
Instruction Manual
1
System Requirements
The following are required to install the console:
• 1U Cabinet Console - assembled “LCD panel + keyboard + mouse
pad” drawer
• Rear bracket & extension kit - This kit contains two pieces of rear
brackets and two extensions. Make sure you have the correct kit to t
the depth of your cabinet.
Note: the following length is measured between front and rear poles,
inside the rack cabinet not the outside depth of a rack
Front pole to rear
pole distance
( Depth )
Minimum 59 23.2 59 23.2 59 23.2
Maximum 96 37.8 96 37.8 123 48.4
Front pole to rear
pole distance
( Depth )
Minimum 57.5 22 5/8 77.5 30 1/2
Maximum 70.5 27 3/4 90.5 35 5/8
1UCABCONS 1UCABCONS17 1UCABCONS19
cm inch cm inch cm inch
CABCONS30KIT CABCONS42KIT
cm inch cm inch
Instruction Manual
Please see diagram on the following page
2
Overhead Diagram
KVM Module
KVM Module
Depth
Depth
Console
Drawer
Console
Drawer
The KVM Module can be connected to a console, or be used as a stand-alone
KVM Switch. There are three major categories: PS/2, USB and Sun Interfaces:
Type PS/2 KVM
Model name CAB832DS CAB1631D CAB1631D1U
No. of Console Ports 2 1 1
No. of Computer Ports 8 16 16
OSD Menu Yes Yes Yes
Height 1U 2U 1U
Cable Type SVPS23N1_xx, PS23N1THINxx SVECONxx
Continued next page
Instruction Manual
3
Type Hybrid KVM
Model name CAB831HD CAB1631HD
Interface PS/2, USB
No. of Console Ports 1 1
No. of Computer Ports 8 16
OSD Menu Yes
Height 1U 2U
Cable Type
PS2 – SVECONx
USB - SVECONUSx
Type IP KVM
Model name CAB1641HDI
Interface PS/2, USB
No. of Console Ports 1
No. of Computer Ports 16
OSD Menu Yes
Height 1U
Cable Type
PS2 – SVECONx
USB - SVECONUSx
Instruction Manual
4
Assembly
1. Choose a proper position for the rack drawer. Mount the rear brackets (from
the Rear bracket & extension kit) and lightly fasten them onto the rear
vertical poles. Both will be removed later.
2. Remove the safety stopper from the console drawer. The safety
stopper is designed to prevent the drawer from sliding out during
transportation. Please note that once the Safety Stopper is removed,
the drawer is free to slide out when the console is tilted. Be cautious,
as this could cause injury.
Instruction Manual
5

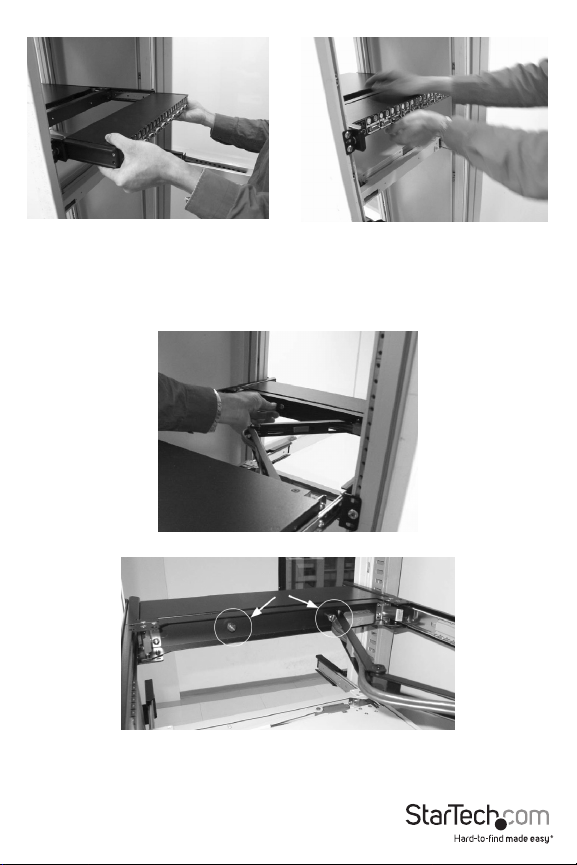

3. Slide the assembled drawer into the rack cabinet from the front and insert
the two slide rails of the assembled drawer into the pockets of the rear
brackets.
4. Fasten the assembled drawer onto the front brackets using the four screws
provided.
5. Remove both of the rear brackets. The front brackets now hold the
assembled drawer.
Instruction Manual
6
6. Attach the extensions (from the Rear bracket & extension kit) to both
sides of the KVM switch module. Please note the length of the
extensions and mount them as shown. For a 2U module, the
extensions are mounted to the lower half of the module.
NOTE: the orientation of the wide side of the extension
7. The rear brackets, extensions and slide rails have a tight t. Make sure you
follow these steps for easy installation.
A. Slide the rear brackets onto the extensions.
B. Insert both sliding rails of the assembled drawer into the tight space
formed by the rear brackets and the extensions. The KVM module should
be pushed in evenly on both right and left sides.
Instruction Manual
7
8. Push the KVM switch module evenly toward the drawer:
9. Slide the console drawer out and fasten both units together using the
screws provided:
Instruction Manual
8
10. Make sure the C-36 connectors are rmly connected:
8mm (5/16”)
C36 Connector
11. Connect the power supply to the power jack on the KVM module to
complete the assembly.
Instruction Manual
9
Installation
Please note: You can only connect to a computer using either the PS/2
or USB port not both simultaneously.
Connecting to a USB Controlled Computer
Connect the standard VGA cable and a USB A-B cable to the computer and
1UCABCONS as shown below. The computer can be a USB-ready PC, Sun, HP
server, or a Mac.
Male-to-Female
HDB15 for VGA
Instruction Manual
10
Connecting to a PS2 Controlled Computer
Connect the standard VGA cable and two mini-DIN6 male-to-male cables to
the computer and 1UCABCONS as shown below. There are two mini-DIN6
female connectors marked with keyboard and mouse, be sure not to swap the
connections.
Male-to-Female
HDB15 for VGA
Connecting to a KVM Switch
When cascading with a KVM switch, 1UCABCONS can be used to control
up to 16 computers. The connection is exactly the same as is shown above
(see Connecting to a USB Controlled Computer, or Connecting to a PS/2
Controlled Computer). The only dierence is the connection would be made
to the “CONSOLE PORT” (could be “PS/2” or “USB” interface) of the KVM switch
instead, of a computer.
Please choose either PS/2 or USB to connect, prior to turning on your
computer!
Instruction Manual
11

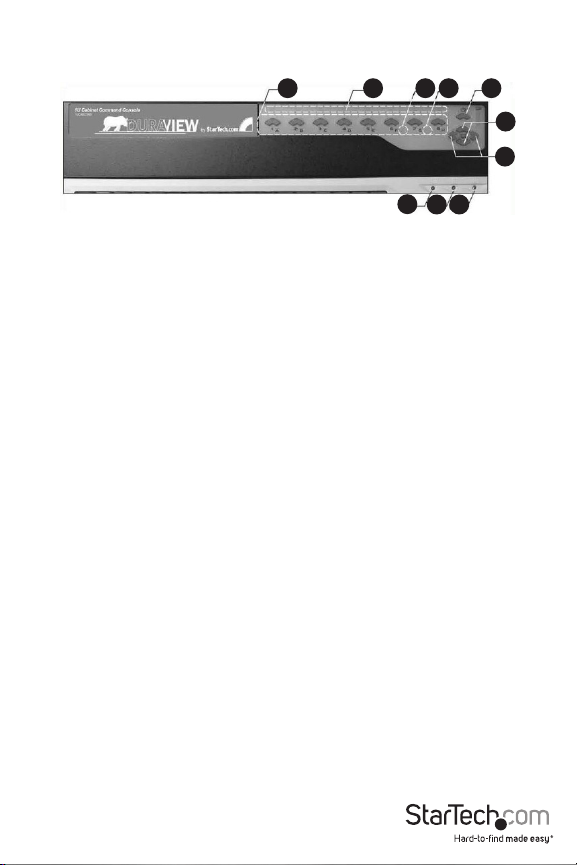

Operation
1 2 3 4
7
Front Panel Functions
KVM Control and Status:
(This section is eective only when a KVM switch module is connected.)
1. Computer Selection Pad - Press one of these pushbuttons to select a
computer. For 16 port models, 1-8 represent the lower 8 ports, while
A-H indicates the higher 8 ports. Port 1 and A share the same push
button; if port 1 is already selected, tap its pushbutton to select port A.
If port 1 is not selected, press and hold pushbutton 1 for two seconds
to select port A.
2. Selected Computer Indicator - One of the indicators turns red when
a corresponding computer is selected by pushbuttons, hotkey or OSD
menu.
3. Local Console in Operation - When a computer is accessed through
the console, this will illuminate green.
4. Remote Console in Operation - This will illuminate green when a
computer is accessed by another set of keyboard/mouse/monitor
connected to the Remote console when the KVM Switch Function
Module is a 2-console KVM.
LCD Panel Control:
5. LCD Panel Menu - These buttons invoke the OSD menu for the LCD
panel and acts as menu selection.
6. LCD Panel Adjustment - Lets you adjust settings for the LCD panel.
Keyboard Status and LCD Panel Power Switch:
7. Num Lock - Keyboard Num Lock status
8. Caps Lock - Keyboard Caps Lock status
10
98
5
6
Instruction Manual
12
9. Scroll Lock - Keyboard Scroll Lock status
10. LCD Panel Power Switch
Keyboard Replacement
The keyboard is replaceable, in the event of language changes or
maintenance. To replace the key-board, tilt it up, locate the mini-USB
cable underneath the keyboard and unplug it gently. While installing the
replacement keyboard, please ensure that you extend just enough of the
cable to keep the keyboard at inside the tray.
Triangular Mark
Please note: There is a round hole under the drawer, which can be used to
pass one nger through allowing for easier removal of the keyboard (pushing
upwards).
Please note: The triangular mark on the mini USB connector must face
outwards.
Instruction Manual
13
Touchpad Replacement
The built-on Touchpad oers “wheel mouse” functionality. The area of the
Touch Pad to the right side of the two small triangular marks is the simulated
“wheel” as shown below:
Triangular Marker
Scroll
Wheel
Area
Left Mouse Button
To remove the Touch Pad, press the tab underneath it upward to release the
latch, then slide it outwards until the Touch Pad can be lifted up clear from the
notches, as shown in the gure below (right side). The Touchpad is attached by
a piece of mini-USB cable. To install the Touchad, extend just enough mini-USB
cable and slide the Touch Pad all the way in till you hear a click sound as it is
locked in position.
Triangular Mark**
**Please note that the triangular mark must face outward
Instruction Manual
Right Mouse Button
14
Specications
1UCABCONS 1UCABCONS17 1UC ABCONS19
Active Display Area (mm)
Pixel Pitch (mm)
Resolution
Color Pixel Arrangement
Display Mode
Brightness (cd/m2)
Contrast Ratio
Display Color
User Control
Input Signal
Plug-n-Play VESA
Power Consumption
Viewing Angle
Backlight Unit
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Power Supply Input
Voltage
Regulatory Certications
Power Management
304.1 x 228.1 337.920 x 270.336 376.32 x 301.056
0.297(H) x 0.297(V) 0.264 (H) x 0.264 (V) 0.294(H) x 0.294(V)
1024 x 768
@60/70/75Hz
250 (center) 350 (center) 300 (center)
350:1 1000:1 2000:1
16.7M colors (RGB 6-bits)
OSD Control (auto saving)
RGB analog, H/V separate
23.2W 26.5W 28W
-70° ~ 70°(H)
-60° ~ 60°(V) ( Typ.)
2 CCFLs edge-light
(top/bottom)
0°C ~ 50 °C (32°F ~ 122°F)
-20°C ~ 60°C (-4°F ~ °140F)
Relative Humidity 8% ~ 95%
Full range, 100V AC to 240V AC
CE, FCC for the product. UL, TUV, CE for power supply
1280 x 1024 @60/70/75Hz
RGB vertical strip
Normally White
VESA DDC 1/2B
-80° ~ 80°(H)
-80° ~ 80°(V) ( Typ.)
4 CCFLs edge-light (top/bottom)
95% RH
VESA DPMS compliant
STANDBY mode <= 1W
SUSPEND mode <= 1W
OFF mode <= 1W
16.7M colors (RGB
8-bits)
-85° ~ 85°(H)
-85° ~ 85°(V) ( Typ.)
Instruction Manual
15
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to provide industryleading solutions. If you ever need help with your product, visit www.startech.com/support and access
our comprehensive selection of online tools, documentation, and downloads.
Warranty Information
This product is backed by a one year warranty.
In addition, StarTech.com warrants its products against defects in materials and workmanship for the
periods noted, following the initial date of purchase. During this period, the products may be returned
for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor
costs only. StarTech.com does not warrant its products from defects or damages arising from misuse,
abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors,
employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,
consequential, or other wise), loss of prots, loss of business, or any pecuniary loss, arising out of or
related to the use of the product exceed the actual price paid for the product. Some states do not allow
the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or
exclusions contained in this statement may not apply to you.
Screen Quality & Pixel Policy
During the manufacturing process, certain cosmetic imperfections can occur which do not constitute
defects in the screen requiring an RMA replacement. Defective or “dead” pixels or sub-pixels are common
to all manufacturers of LCD displays. Visual imperfections are caused by one or more defective pixels or
sub-pixels.
A pixel is comprised of one red, one green, and one blue sub-pixel. If a defective whole pixel is always on,
it will appear as a bright spot, typically white, yellow or other bright color, while if it is always o, it will
appear as a dark brown of black spot visible on a bright background. A defective sub-pixel is less visible
than a defective whole pixel as it is smaller, and dependent on the color of the defective sub-pixel as
contrasted to the background color.
A display is not deemed defective if it contains less than and up to:
• 3 bright dots (pixel always on)
• 5 dark dots (pixel always o )
• 5 total bright and dark dots (on and o pixels)
If your display appears to have defective pixels or sub-pixels, or if you should have any questions relating
to this policy, please contact StarTech.com technical support either by phone, online live chat, or email.
Instruction Manual
16
StarTech.com has been making “hard-to-nd easy” since 1985, providing high
quality solutions to a diverse IT and A/V customer base that spans many channels,
including government, education and industrial facilities to name just a few. We
oer an unmatched selection of computer parts, cables, A/V products, KVM and
Server Management solutions, serving a worldwide market through our locations
in the United States, Canada, the United Kingdom and Taiwan.
Visit www.startech.com today for complete information about all our products
and to access exclusive interactive tools such as the Cable Finder, Parts Finder
and the KVM Reference Guide. StarTech.com makes it easy to complete almost
any IT or A/V solution. Find out for yourself why our products lead the industry in
performance, support, and value.
Loading...
