Startech WIFI2HD2 User Manual
WiFi to HDMI® Wireless Video Extender with Audio
WIFI2HD2
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/15/2013
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and
Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not
represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. Regardless
of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the property of
their respective holders.
Instruction Manual
2
Table of Contents
Introduction .................................................................................................. 1
Packaging Contents .......................................................................................................................................1
System Requirements ...................................................................................................................................1
Front View ..........................................................................................................................................................2
Rear View ............................................................................................................................................................2
Installation .................................................................................................... 3
Software and Driver Installation ................................................................................................................3
Hardware Installation ....................................................................................................................................4
Wireless Network Conguration ...............................................................................................................5
How to Use .................................................................................................... 6
Advanced Settings .........................................................................................................................................8
Web Interface Conguration ......................................................................................................................9
UPnP Media Streaming .................................................................................................................................11
Troubleshooting ........................................................................................... 12
UPnP Supported Formats ........................................................................... 18
Specications ................................................................................................ 21
Technical Support ........................................................................................ 22
Warranty Information .................................................................................. 22
Instruction Manual
i
Introduction
Packaging Contents
• 1 x WiFi to HDMI Converter
• 1 x Universal Power Adapter
• 3 x Power Adapter Plugs (NA/ UK/ EU)
• 1 x Installation CD
• 1 x Instruction Manual
System Requirements
• CPU: 2nd Gen Intel® Core™ or better
• RAM: 2GB DDR2-800 or better
• IEEE 802.11N or G wireless network
• HDMI enabled display device (i.e. monitor, projector, HDTV, etc.) with HDMI cable
• Available AC electrical outlet
• Microsoft® Windows® 8, 7, Vista, XP (32/64-bit)
Instruction Manual
1
Front View
Power LED
Rear View
USB connector
3.5mm Audio connector
(Output)
DC Power
connector
Power Button
RJ45 Ethernet
connector
HDMI
HDMI connector
(Output)
Instruction Manual
2
Installation
Software and Driver Installation
1. Insert the included installation CD into the computer’s CD/DVD drive.
2. If AutoPlay runs, choose the option to browse/open the folder. Otherwise you
can access the les on the CD by going into My Computer and double-clicking
the CD/DVD drive.
*photos/screenshots for reference only
3. Run the PC2TV application to begin the driver/software installation wizard.
4. Proceed through the installation wizard until the benchmark application runs.
5. The Benchmark application will test the capabilities/performance of the
computer system to run the video extender software. It will provide a rating
out of 5 stars (see below for description). Click the “Analysis” button to begin.
Instruction Manual
3
Rating Description
1 Star CPU and graphics performance are below minimum recommended levels.
2 Star
3 Star Good Music playback and Photo viewing quality. Video playback may still lag.
4 Star Video playback should be smooth.
5 Star Best performance for video playback and all features.
Music and Photo viewing and web surng are acceptable. Video playback at a very low
screen resolution may be possible.
6. After the benchmark is complete, reboot the computer.
7. After the computer has rebooted, there will be an icon for PC2TV that will launch
the software for the video extender.
Hardware Installation
1. Connect a male/male HDMI cable from the rear panel of the video extender
to the remote display.
2. Connect the included power adapter from an electrical outlet to the
video extender.
OPTIONAL: Connect a USB peripheral, such as keyboard/mouse, to the USB
hub port on the wireless video extender.
3. Turn on the remote display.
4. Turn on the video extender by pressing the power button on the front panel.
5. Wait at least 60 seconds for the remote display to show the ready screen from
the video extender.
6. You can now connect to the video extender over WiFi.
(SSID: WIFI2HD2)
Instruction Manual
4
Wireless Network Conguration
The video extender can operate in two wireless modes: Wireless Access Point
mode (AP) or Client Mode (STA).
• AP Mode (default): The video extender will act as a wireless access point (i.e.
wireless router) for other wireless enabled computers. This mode is useful if
there is no existing wireless network where the video extender will be used, or
you do not wish to have the video extender on your main network.
• Client Mode: The video extender will act as a regular wireless client and connect
to an existing wireless network. This mode is useful if there is an existing wireless
access point (i.e. wireless router) already setup or if the computers need Internet
access at the same time.
NOTE: The wireless AP must have DHCP enabled.
To set the video extender into Client mode:
1. By default, the wireless video extender will be set to AP Mode. Check your
computer’s wireless network settings for the network called “WIFI2HD2”.
2. Connect to the WIFI2HD2 network. No encryption/security should be
enabled yet.
3. Once connected, run the PC2TV application from the desktop icon.

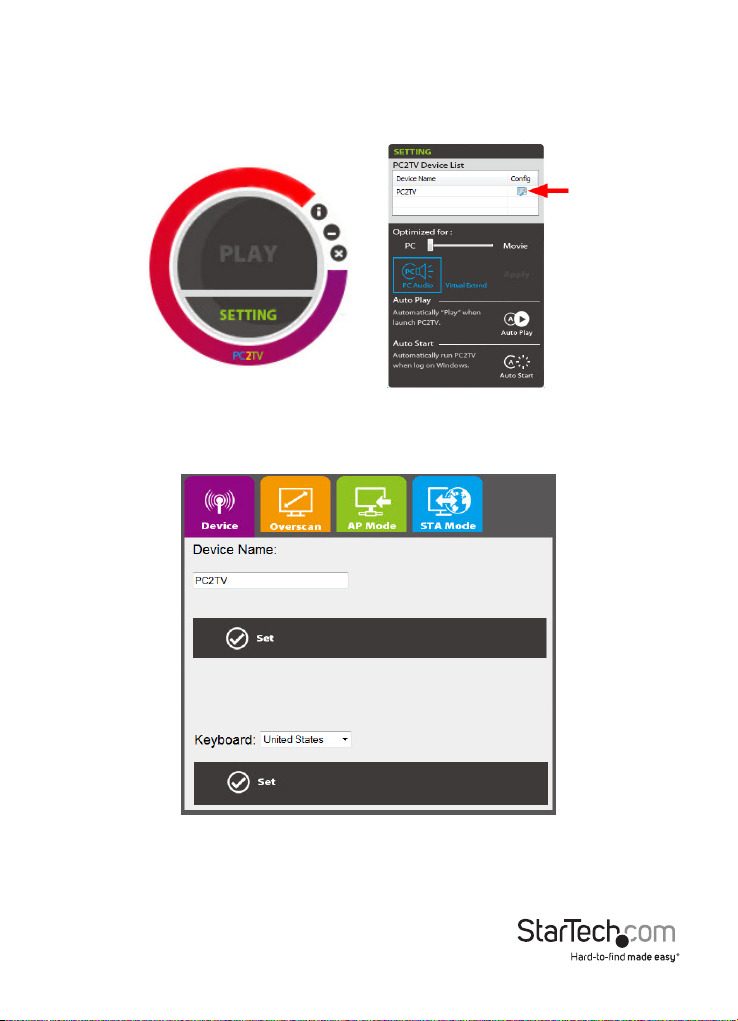

4. Open the “Setting” menu and then click on the Conguration button.
Instruction Manual
5

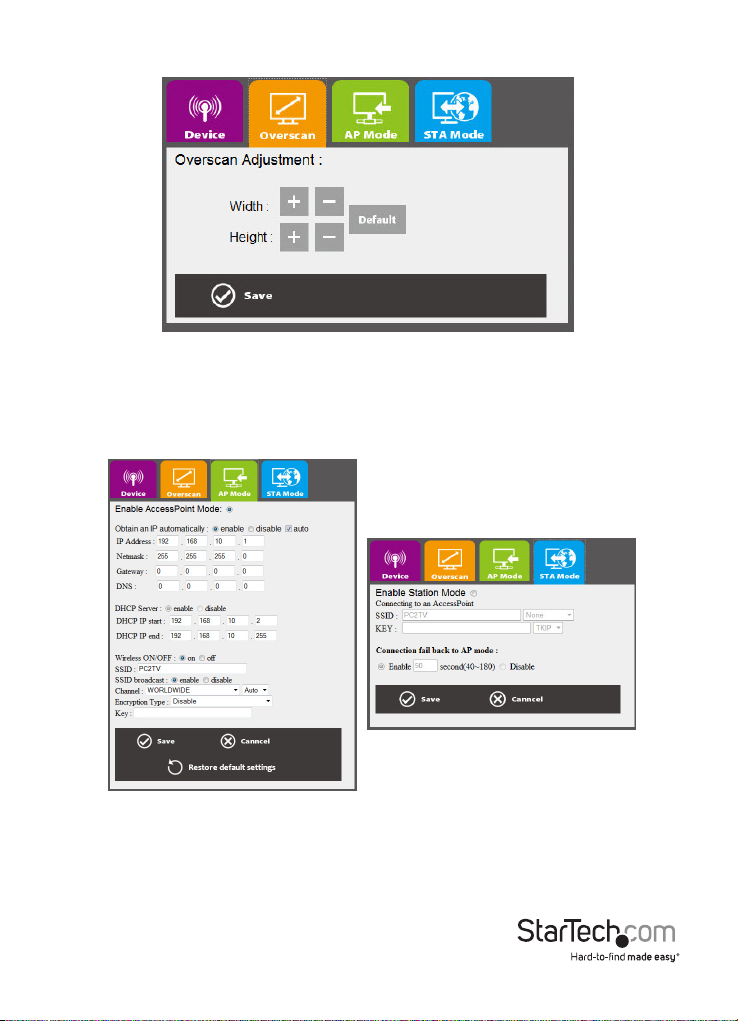

5. From the Conguration window, click on the “STA Mode” tab then click the
“Enable” option. Enter the required information for connecting to your existing
wireless network (i.e. SSID, encryption type and network key). Click the SAVE
button once complete.
NOTE: Client/STA mode does not support static IP addresses. The wireless AP
must have DHCP enabled.
OPTIONAL: If connecting multiple wireless video adapters to this network, be
sure to set a unique Device Name for each one for easy identication under the
“Device” tab.
6. Restart the wireless video adapter by unplugging and reconnecting the power.
How to Use
NOTE: It is recommended to turn o the screensaver on your computer when
using this product
1. Double-click the PC2TV icon from the desktop.
Instruction Manual
6
Loading...
