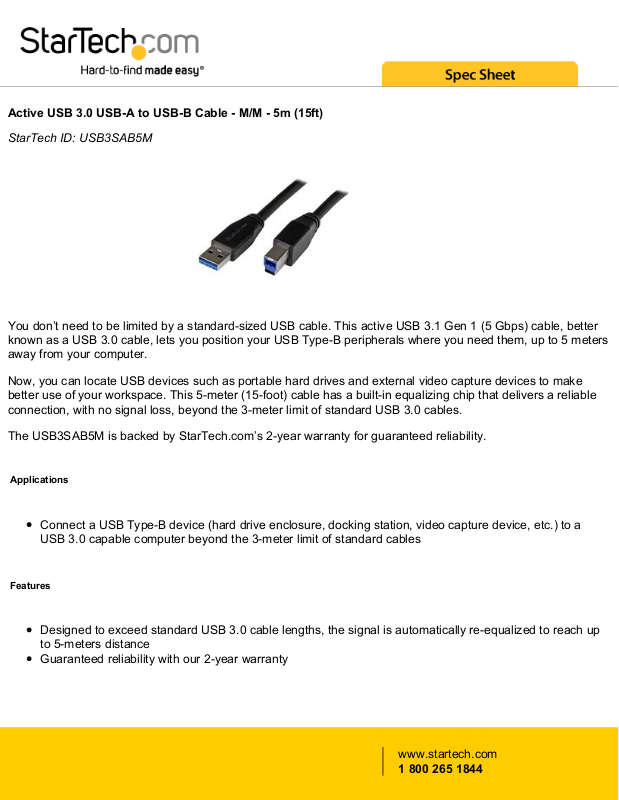

Startech USB3SAB5M User Manual

Active USB 3.0 USB-A to USB-B Cable - M/M - 5m (15ft)

StarTech ID: USB3SAB5M

You don’t need to be limited by a standard-sized USB cable. This active USB 3.1 Gen 1 (5 Gbps) cable, better
known as a USB 3.0 cable, lets you position your USB Type-B peripherals where you need them, up to 5 meters
away from your computer.

Now, you can locate USB devices such as portable hard drives and external video capture devices to make
better use of your workspace. This 5-meter (15-foot) cable has a built-in equalizing chip that delivers a reliable
connection, with no signal loss, beyond the 3-meter limit of standard USB 3.0 cables.

The USB3SAB5M is backed by StarTech.com’s 2-year warranty for guaranteed reliability.

Applications

Connect a USB Type-B device (hard drive enclosure, docking station, video capture device, etc.) to a
USB 3.0 capable computer beyond the 3-meter limit of standard cables

Features

Designed to exceed standard USB 3.0 cable lengths, the signal is automatically re-equalized to reach up
to 5-meters distance
Guaranteed reliability with our 2-year warranty

www.startech.com

1 800 265 1844

Technical Specifications

Warranty 2 Years
Cable Jacket Type PVC - Polyvinyl Chloride
Cable Shield Type Aluminum-Mylar Foil with Braid
Connector Plating Nickel
Type and Rate USB 3.0 - 5 Gbit/s
Connector A 1 - USB 3.0 A (9 pin; SuperSpeed) Male
Connector B 1 - USB 3.0 B (9 pin; SuperSpeed) Male
Cable Length 16.4 ft [5 m]
Color Black
Connector Style Straight
Product Length 16.4 ft [5 m]
Product Weight 9.4 oz [266 g]
Wire Gauge 24/28 AWG
Package Quantity 1
Shipping (Package) Weight 12 oz [340 g]
Included in Package 1 - 5m Active USB 3.0 A to B Cable - M/M

Certifications, Reports and Compatibility
