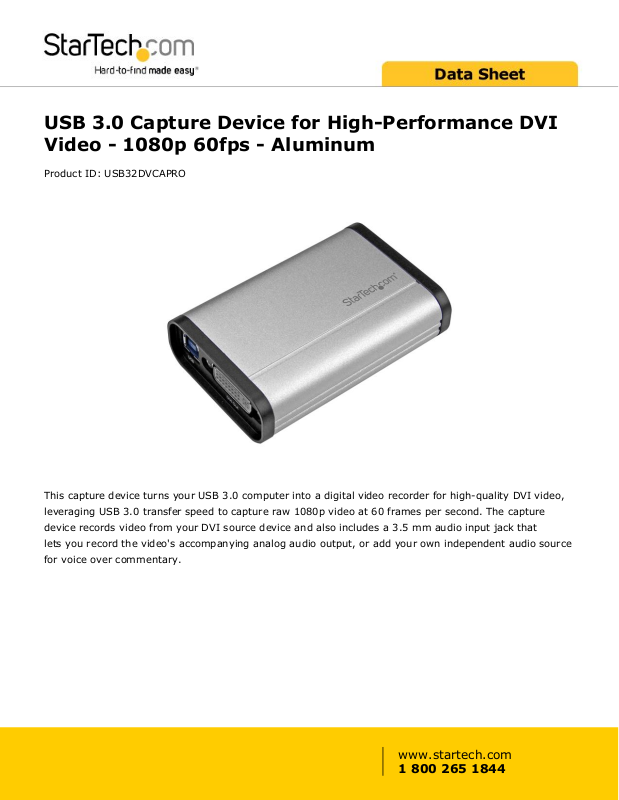

USB 3.0 Capture Device for High-Performance DVI
Video - 1080p 60fps - Aluminum
Product ID: USB32DVCAPRO
This capture device turns your USB 3.0 computer into a digital video recorder for high-quality DVI video,
leveraging USB 3.0 transfer speed to capture raw 1080p video at 60 frames per second. The capture
device records video from your DVI source device and also includes a 3.5 mm audio input jack that
lets you record the video's accompanying analog audio output, or add your own independent audio source
for voice over commentary.
www.startech.com
1 800 265 1844
Seamless picture quality at 1080p 60 FPS
Record lossless video at 60 FPS, ensuring every frame of content is saved, unlike 30-frame-per-
second capture devices that only catch half the action. 1080p60 exactly matches the output of
most computer video cards, which is great for recording the output from your PC, server, or POS
station, when creating software training and tutorial videos. With support for 1080p video, you can ensure
crystal-clear capture quality at high-definition resolution, and create high-quality video to distribute
internally throughout your business or distribution over the internet.
Use your own software, with DirectShow compatibility
This USB capture card is capable of capturing lossless raw video, making it compatible with Microsoft®
DirectShow. With raw video capture, you can record video using your preferred third-party
DirectShow software such as Open Broadcaster Software (OBS).
H.264 encoding for wide device compatibility
The software that's included with the capture card encodes in H.264 -- the most widely adopted video
codec in the world. H.264 encoding capability ensures the video files you save will be compatible with
almost any video player, such as the media software on your PC, Mac, iOS or Android™ devices, with
no editing or converting needed. H.264 is also widely supported by most software titles, including Adobe
Premiere® and Windows Media® Encoder.
The USB32DVCAPRO is backed by a 2-year StarTech.com warranty and free lifetime technical support.
www.startech.com
1 800 265 1844
Certifications, Reports
and Compatibility
Applications
• Record video for training and tutorial purposes from technologies that
output DVI
• Capture raw, uncompressed video using your preferred DirectShow
compatible software
Features
• Seamless picture quality with USB 3.0 bandwidth enabling you to
capture 1080p video at 60 FPS
• Wide device playback support with H.264 encoded video files
• Use your own capture software, with lossless raw video capture
ensuring DirectShow compatibility
• Separate 3.5 mm audio input
www.startech.com
1 800 265 1844
Warranty 2 Years
Hardware Audio Yes
Converter Type Format Converter
Industry Standards MPEG4 (H.264)
Performance Audio Specifications 2-channel stereo audio
Maximum Analog Resolutions 1920 x 1200 60 FPS
Supported Resolutions 1920 x 1200, 1920 x 1080, 1280 x 720, 1024 x 768, 800 x
600
Wide Screen Supported Yes
Connector(s) Connector A 1 - 3.5 mm Mini-Jack (3 Position) Female Input
1 - DVI-I (29 pin) Female Input
Connector B 1 - USB Type-B (9 pin) USB 3.0 Female
Software OS Compatibility Windows® 10, 8.1, 8, 7
Power Power Source USB-Powered
Environmental Humidity 20% to 80% (non-condensing)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -5°C to 40°C (23°F to 105°F)
Physical
Characteristics
Product Height 1 in [24.3 mm]
Product Length 3.6 in [92.2 mm]
Product Weight 3.6 oz [102 g]
Product Width 2.4 in [61.1 mm]
Packaging
Information
Shipping (Package) Weight 1 lb [0.5 kg]
What's in the Box Included in Package 1 - USB 3.0 capture device for DVI video
1 - USB 3.0 cable
1 - quick start guide
Product appearance and specifications are subject to change without notice.
