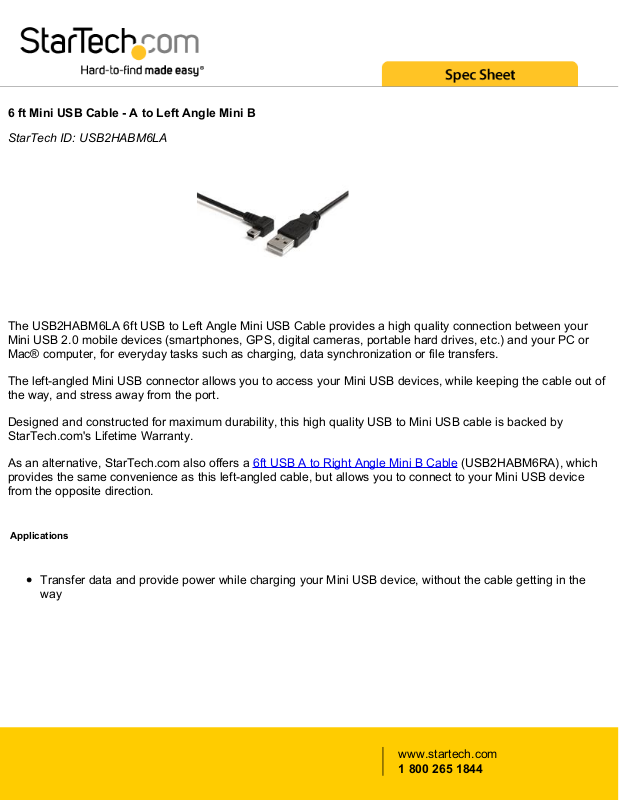

Startech USB2HABM6LA User Manual

6 ft Mini USB Cable - A to Left Angle Mini B

StarTech ID: USB2HABM6LA

The USB2HABM6LA 6ft USB to Left Angle Mini USB Cable provides a high quality connection between your
Mini USB 2.0 mobile devices (smartphones, GPS, digital cameras, portable hard drives, etc.) and your PC or
Mac® computer, for everyday tasks such as charging, data synchronization or file transfers.

The left-angled Mini USB connector allows you to access your Mini USB devices, while keeping the cable out of
the way, and stress away from the port.

Designed and constructed for maximum durability, this high quality USB to Mini USB cable is backed by
StarTech.com's Lifetime Warranty.

As an alternative, StarTech.com also offers a 6ft USB A to Right Angle Mini B Cable (USB2HABM6RA), which
provides the same convenience as this left-angled cable, but allows you to connect to your Mini USB device
from the opposite direction.

Applications

Transfer data and provide power while charging your Mini USB device, without the cable getting in the
way

www.startech.com

1 800 265 1844

Features

Supports high-speed data transfer rates of up to 480 Mbps
Aluminum-Mylar Foil with Braided Shielding
Molded connectors with strain relief

Technical Specifications

Warranty Lifetime
Cable Length 6 ft [1.8 m]
Color Black
Wire Gauge 28 AWG
Cable Jacket Type PVC - Polyvinyl Chloride
Type and Rate USB 2.0 - 480 Mbit/s
Connector A 1 - USB A (4 pin) Male
Connector B 1 - USB Mini-B (5 pin) Male
Package Quantity 1
Shipping (Package) Weight 0.1 lb [0 kg]
Included in Package 1 - 6 ft Mini USB Cable - A to Left Angle Mini B

Certifications, Reports and Compatibility
