USB to DVI External Dual Monitor Video Adapter
USB to VGA External Dual Monitor Video Adapter
USB2DVIE3
USB2VGAE3
*actual product may vary from photo
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 08/10/2011
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and
Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not
represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. Regardless
of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the property of
their respective holders.
Instruction Manual
Table of Contents
Introduction ............................................................................................1
Packaging Contents ................................................................................................................................. 1
System Requirements .............................................................................................................................. 1
Installation ..............................................................................................2
Driver Installation (Windows) ...............................................................................................................2
Multiple USB Video Adapter Installation .......................................................................................... 3
Verifying Installation ................................................................................................................................ 3
Conguring the USB Video Adapter ....................................................4
Windows XP/Vista ..................................................................................................................................... 4
Display ID ...........................................................................................................................................................................4
Display Resolution ..........................................................................................................................................................4
Display Rotation ..............................................................................................................................................................4
Display Modes ............................................................................................................................................ 5
“EXTENDED” Display Mode (Default) .......................................................................................................................5
“MIRROR” Display Mode ...............................................................................................................................................5
“PRIMARY” Display Mode .............................................................................................................................................5
“OFF” Display Mode ........................................................................................................................................................6
Identify Monitors .......................................................................................................................................6
Multi-Display Control Panel ................................................................................................................... 6
Display Settings .........................................................................................................................................7
Windows 7 ................................................................................................................................................... 7
Supported Resolutions ......................................................................... 8
Specications ..........................................................................................9
Technical Support ..................................................................................10
Warranty Information ............................................................................10
Instruction Manual
i
Introduction
The USB Multi Monitor External Video Adapter lets you add a high-resolution
1920x1200 external DVI (USB2DVIE3) or VGA (USB2VGAE3) output to your desktop or
laptop computer system, using an available USB 2.0 port.
A cost-eective solution for systems that lack the outputs required for a multi-monitor
setup, this high-performance USB Video Adapter can be used to mirror your primary
display and show the same image on both screens, or extend your desktop to double
your workspace.
This small form factor USB video adapter can be used with up to 4 additional (5
total) USB2DVIE3 or USB2VGAE3 USB video adapters, creating multiple DVI or VGA
connections to add additional displays quickly and easily - all without having to open
the computer case to add extra video cards.
Packaging Contents
• 1 x USB to DVI Adapter (USB2DVIE3)
or
1 x USB to VGA Adapter (USB2VGAE3)
• 1 x Driver and Software CD
• 1 x Instruction Manual
System Requirements
• USB enabled computer system with available USB port
• DVI or VGA enabled display device (e.g. monitor, projector, HTDV, etc)
• Single Video Adapter:
CPU: Intel/AMD single core 1.5 GHz or higher
RAM: 512 MB or more
• 2-3 Video Adapters:
CPU: Intel/AMD single core 2.4 GHz or higher
RAM: 1 GB or more
• 4-5 Video Adapters:
CPU: Intel/AMD dual core 2.0 GHz or higher
RAM: 2 GB or more
• Microsoft® Windows® XP/Vista/7 (32/64-bit)
Instruction Manual
1
Installation
Please ensure that the driver installation is complete prior to the physical
installation (plugging in) of the USB 2.0 Video Adapter
Driver Installation (Windows)
1. Insert the Driver CD into your CD/DVD-ROM drive.
2. If the installation program does not begin automatically, locate the Setup.exe
application. This le will be located in the root directory of the Driver CD (e.g. D:\).
3. Executing the Setup.exe application will
launch the following screen. Please click
on Next:
*Ensure that the USB Video Adapter is
not connected to the host computer.
*installation photos for reference only
4. Once the Windows has nished the driver installation, it will prompt you to restart
the computer. Select “Yes, I want to restart my computer now”, and click the “Finish”
button.
5. While the computer is restarting, connect the DVI or VGA cord running from the
secondary monitor/display to the adapter. Turn the monitor/display on.
6. Once Windows has fully loaded, plug the USB Video Adapter into an available USB
2.0 port of your PC or Notebook.
7. Windows will automatically install the drivers. Wait until a message appears
conrming the successful installation.
8. The USB Video Adapter is now ready for use.
Instruction Manual
2
Multiple USB Video Adapter Installation
Ensure you have the latest version of the drivers installed, otherwise, please download
them from the StarTech.com website (www.startech.com).
1. Complete the standard driver installation steps, up to when you plug in the rst USB
Video Adapter.
2. Connect another monitor/display to the second USB Video Adapter, then turn on
the display.
3. Connect the USB type A connector on the second USB Video Adapter to an available
USB 2.0 port on the host computer. The driver installation will begin automatically.
Repeat these steps for each additional USB Video Adapter you wish to install. Once all
USB Video Adapters are installed, reboot the computer. After rebooting, you may be
prompted to reboot one nal time; please do so.
Verifying Installation
From the main desktop, right-click on “My Computer” (“Computer” in Vista), then select
Manage. In the new Computer Management window, select Device Manager from the
left window panel.
Double-click the Universal Serial Bus Controllers category and the USB adapter should
be visible.
Instruction Manual
*actual device name may vary
3
Conguring the USB Video Adapter
Look for the USB Video Adapter icon ( ) on your Windows System Tray (next to
clock). Right-click this icon to access the variety of functions associated to the adapter.
Windows XP/Vista
Display ID
The USB Video Adapter supports the VESA
dened DDC/EDID standard. The utility will
show the display device ID whenever it is
attached to the USB Video Adapter.
If there is no display device attached to
the USB Video Adapter, an “Unknown
Monitor” ID will be shown. In some cases,
if the attached display device does not
support EDID, the ID will also be dened as
“Unknown Monitor”.
Display Resolution
Select the desired video display resolution for
the connected monitor.
The default setting resolution is: 1024 x 768
* 32-bit.
Display Rotation
4 options available: 0°, 90°, 180°, 270° when
used with the Extended or Primary display
modes. It is a useful function for some
rotatable display devices.
Instruction Manual
4

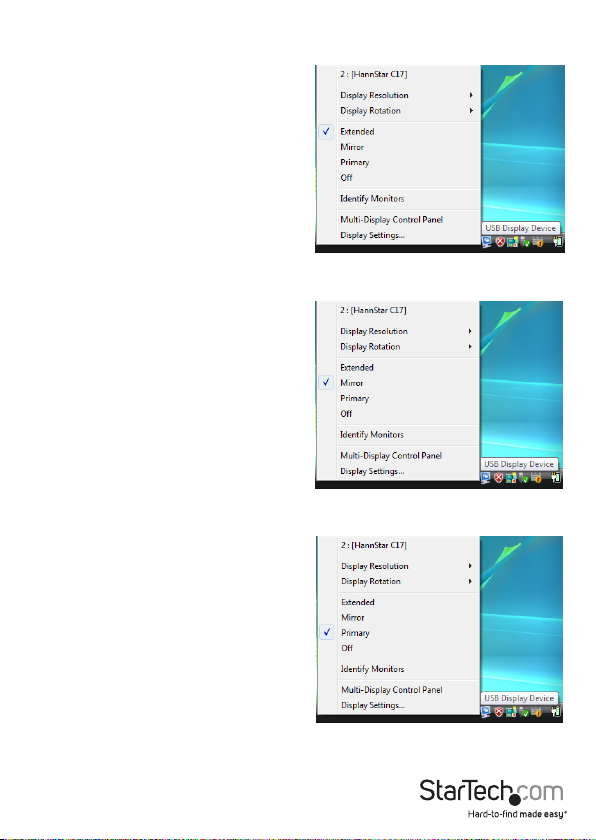

Display Modes
“EXTENDED” Display Mode (Default)
A default display mode; this feature allows the
attached USB Video Adapter enabled display
to work as an “Extended” display to the onboard display. The extended working space
improves work eciency.
You may change the relative position of
this extended display through the Display
Settings.
“MIRROR” Display Mode
This feature allows the same content from the
on-board display to be duplicated (mirroring)
to the USB Video Adapter enabled display.
The screen resolution setting on the USB
Video Adapter enabled device will match the
on-board displays’s resolution. For example, if
the on-board displays resolution is
1024 x 768*32-bit, then the USB Video
Adapter will use the same resolution.
“PRIMARY” Display Mode
A unique feature to allow the USB Video
Adapter to act as the main working display.
The USB Video Adapter will work as the main
graphics adapter on the system. The on-board
display will work as the extended display.
Please be advised that some display utilities
and drivers that shipped with certain AGP
and built-in display adapters may prevent this
option from working on some systems. You
may be able to disable the other utility program (usually found in the same toolbar
located on the bottom right hand corner) to make this function work properly.
Instruction Manual
5
“OFF” Display Mode
This option disables the video output from the USB Video Adapter.

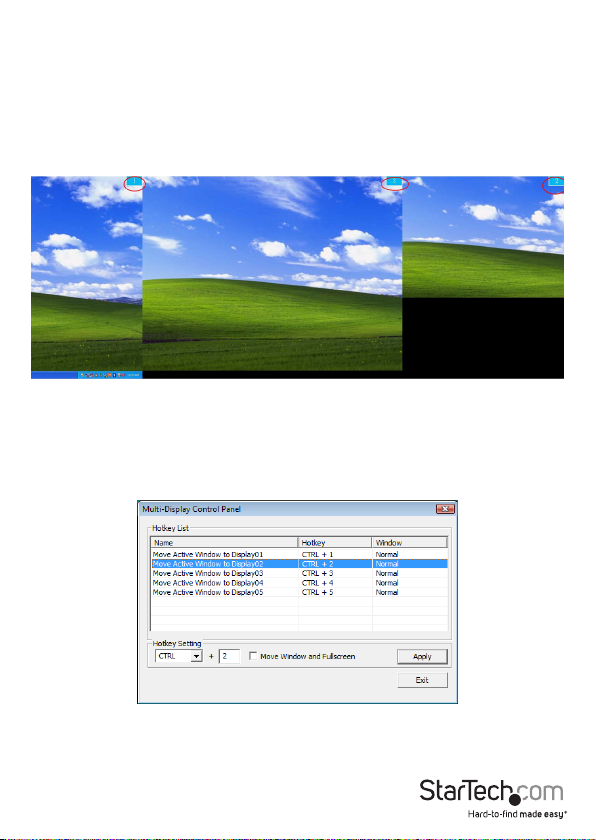

Identify Monitors
Easy display identication via an overlay will be shown in the upper right corner of all
attached display devices.
Multi-Display Control Panel
A unique feature to allow quicker and simpler management of a multi-display
environment. A series of hotkeys to quickly move the active window or mouse cursor
to the desired display (either on-board or each USB Video Adapter).
The default setting of the hotkeys can be found in the Hotkey List of “Multi-Display
Control Panel”.
For example: Ctrl + 2 means: to move the window to Display 2
Instruction Manual
6

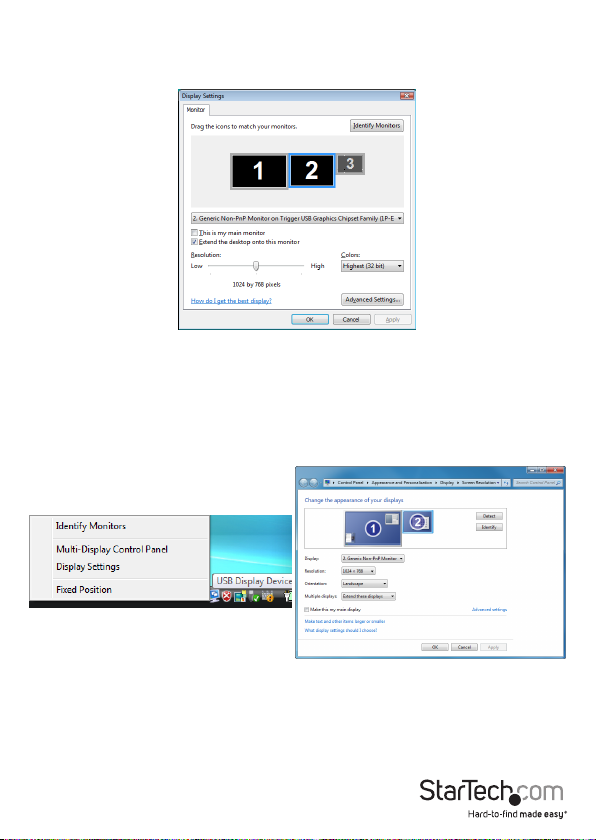

Display Settings
Quick access to the Windows “Display Settings” window.
Windows 7
The USB Video Adapter drivers allow for all adjustments through the built-in Display
Settings window. These settings can be accessed by right-clicking on the Windows
Desktop and selecting “Screen Resolution” or by right-clicking on the USB Video
Adapter icon in the system tray and selecting “Display Settings”.
Select the physical display you wish to change the settings on, from the “Display” drop
down menu. Display Mode, resolution and rotation can be changed from this screen.
Instruction Manual
7
Supported Resolutions
Screen Resolution
(Widescreen)
1920 x 1200 1600 x 1200
1920 x 1080 1400 x 1050
1680 x 1050 1280 x 1024
1600 x 900 1280 x 960
1440 x 900 1152 x 864
1360 x 768 1024 x 768
1280 x 800 800 x 600
1280 x 768
1280 x 720
*16/32-bit color depth, 50/60Hz refresh rates supported
Screen Resolution
(Standard)
Instruction Manual
8
Specications
USB2DVIE3 USB2VGAE3
Video Signal DVI (digital) VGA (RGBHV)
Host Interface USB 2.0
Chipset ID MCT T2-285B MCT T2-285A
Connectors
LEDs N/A
Onboard Memory 32 MB
Maximum Video Resolution 1920 x 1200 (widescreen)
Maximum Number of Adapters 5
Operating Temperature -10°C ~ 55°C (14°F ~ 131°F)
Storage Temperature -25°C ~ 75°C (-13°F ~ 167°F)
Humidity 0% ~ 95% RH
Built-in Cable Length 50cm / 20in
Dimensions (LxWxH)
Weight 92g 80g
Compatible Operating Systems Windows 2000/XP/Vista/7 (32/64-bit)
1 x USB type A male
1 x DVI-I 29-pin female
90.5mm x 52.5mm x
18.0mm
1 x USB type A male
1 x DE-15 VGA female
88.0mm x 52.5mm x
18.0mm
Instruction Manual
9
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to
provide industry-leading solutions. If you ever need help with your product, visit
www.startech.com/support and access our comprehensive selection of online tools,
documentation, and downloads.
Warranty Information
This product is backed by a two year warranty.
In addition, StarTech.com warrants its products against defects in materials
and workmanship for the periods noted, following the initial date of purchase.
During this period, the products may be returned for repair, or replacement with
equivalent products at our discretion. The warranty covers parts and labor costs only.
StarTech.com does not warrant its products from defects or damages arising from
misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their
ocers, directors, employees or agents) for any damages (whether direct or indirect,
special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,
or any pecuniary loss, arising out of or related to the use of the product exceed the
actual price paid for the product. Some states do not allow the exclusion or limitation
of incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
Instruction Manual
10
Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.
StarTech.com is your one-stop source for every connectivity part you need. From
the latest technology to legacy products — and all the parts that bridge the old and
new — we can help you nd the parts that connect your solutions.
We make it easy to locate the parts, and we quickly deliver them wherever they need
to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to
the products you need in no time.
Visit www.startech.com for complete information on all StarTech.com products and
to access exclusive resources and time-saving tools.
StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology
parts. StarTech.com was founded in 1985 and has operations in the United States,
Canada, the United Kingdom and Taiwan servicing a worldwide market.
Loading...
