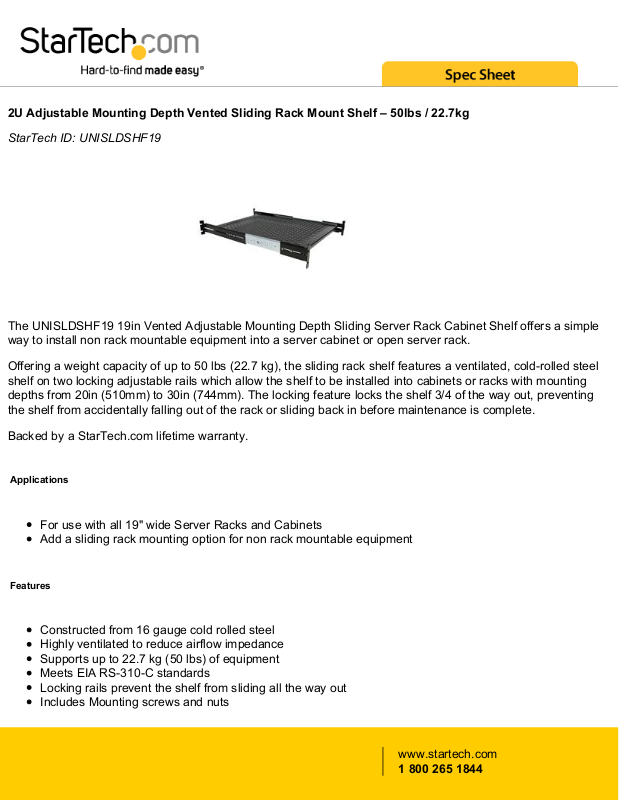

Startech UNISLDSHF19 User Manual

2U Adjustable Mounting Depth Vented Sliding Rack Mount Shelf – 50lbs / 22.7kg

StarTech ID: UNISLDSHF19

The UNISLDSHF19 19in Vented Adjustable Mounting Depth Sliding Server Rack Cabinet Shelf offers a simple
way to install non rack mountable equipment into a server cabinet or open server rack.

Offering a weight capacity of up to 50 lbs (22.7 kg), the sliding rack shelf features a ventilated, cold-rolled steel
shelf on two locking adjustable rails which allow the shelf to be installed into cabinets or racks with mounting
depths from 20in (510mm) to 30in (744mm). The locking feature locks the shelf 3/4 of the way out, preventing
the shelf from accidentally falling out of the rack or sliding back in before maintenance is complete.

Backed by a StarTech.com lifetime warranty.

Applications

For use with all 19" wide Server Racks and Cabinets
Add a sliding rack mounting option for non rack mountable equipment

Features

Constructed from 16 gauge cold rolled steel
Highly ventilated to reduce airflow impedance
Supports up to 22.7 kg (50 lbs) of equipment
Meets EIA RS-310-C standards
Locking rails prevent the shelf from sliding all the way out
Includes Mounting screws and nuts

www.startech.com

1 800 265 1844

Technical Specifications

Warranty Lifetime
Frame Type Steel
Industry Standards EIA RS310-C
U Height 2U
Weight Capacity 50.1 lb [22.7 kg]
Color Black
External Depth 24 in [610 mm]
External Height 3.5 in [88.6 mm]
External Width 18.9 in [480 mm]
Maximum Mounting Depth 29.3 in [744 mm]
Minimum Mounting Depth 20.1 in [510 mm]
Product Weight 9.1 lb [4.1 kg]
Shipping (Package) Weight 296.5 oz [8400 g]
Included in Package 1 - Sliding Shelf
Included in Package 8 - M6 Screws
Included in Package 8 - M6 Cage Nuts

Certifications, Reports and Compatibility
