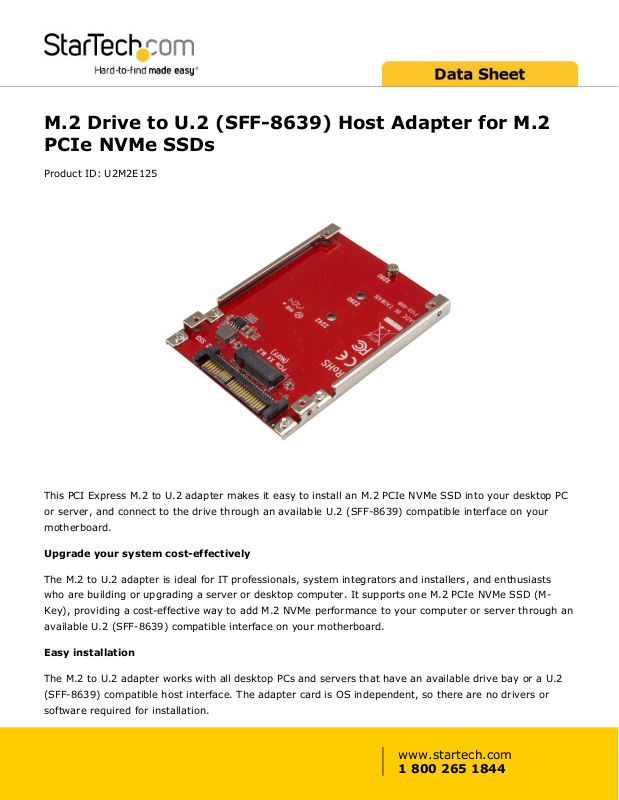

M.2 Drive to U.2 (SFF-8639) Host Adapter for M.2
PCIe NVMe SSDs
Product ID: U2M2E125
This PCI Express M.2 to U.2 adapter makes it easy to install an M.2 PCIe NVMe SSD into your desktop PC
or server, and connect to the drive through an available U.2 (SFF-8639) compatible interface on your
motherboard.
Upgrade your system cost-effectively
The M.2 to U.2 adapter is ideal for IT professionals, system integrators and installers, and enthusiasts
who are building or upgrading a server or desktop computer. It supports one M.2 PCIe NVMe SSD (M-
Key), providing a cost-effective way to add M.2 NVMe performance to your computer or server through an
available U.2 (SFF-8639) compatible interface on your motherboard.
Easy installation
The M.2 to U.2 adapter works with all desktop PCs and servers that have an available drive bay or a U.2
(SFF-8639) compatible host interface. The adapter card is OS independent, so there are no drivers or
software required for installation.
www.startech.com
1 800 265 1844
The U2M2E125 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
www.startech.com
1 800 265 1844
Certifications, Reports
and Compatibility
Applications
• Connect an M.2 NVMe SSD to your computer or server through an
available U.2 (SFF-8639) slot to boost system speed and increase
internal data storage
• Ideal for IT professionals, system integrators and installers, and
enthusiasts who are building or upgrading a computer or server
solution
• Get ultra-fast data access, ideal for high-performance workstations
Features
• Increase your system speed and performance cost-effectively, by
adding an M.2 PCIe NVMe SSD to your PC or server
• Adapter supports one M.2 PCIe NVMe SSD (M-Key)
• U.2 (SFF-8639) host interface
• Fast and easy setup with native OS support
• Backward compatible with earlier versions of PCIe
www.startech.com
1 800 265 1844
Warranty 2 Years
Hardware Bus Type PCI Express
Compatible Drive Types M.2 (NGFF, M-Key, PCIe x4)
Drive Installation Fixed
Fan(s) No
Interface U.2 (SFF-8639; PCIe x4)
Number of Drives 1
Supported Drive Height(s) 2242
2260
2280
Connector(s) Drive Connectors 1 - M.2 (NGFF, M-Key, PCIe x4)
Host Connectors 1 - U.2 (SFF-8639, x4 PCIe, NVMe)
Software OS Compatibility OS independent; No software or drivers required
Environmental Humidity 15% - 90% RH
Operating Temperature +5⁰C to +50⁰C (41°F to 122°F)
Storage Temperature -25⁰C to +70⁰C (-13°F to 158°F)
Physical
Characteristics
Color Red
Max Drive Height 89.8 in [2280 mm]
Product Height 0.3 in [7 mm]
Product Length 3.9 in [100 mm]
Product Weight 1.2 oz [33.4 g]
Product Width 2.8 in [70 mm]
Packaging
Information
Shipping (Package) Weight 3.4 oz [95 g]
What's in the Box Included in Package 1 - M.2 drive to U.2 adapter
4 - adapter-mounting screws
1 - set of drive-mounting hardware
1 - quick-start guide
Product appearance and specifications are subject to change without notice.
