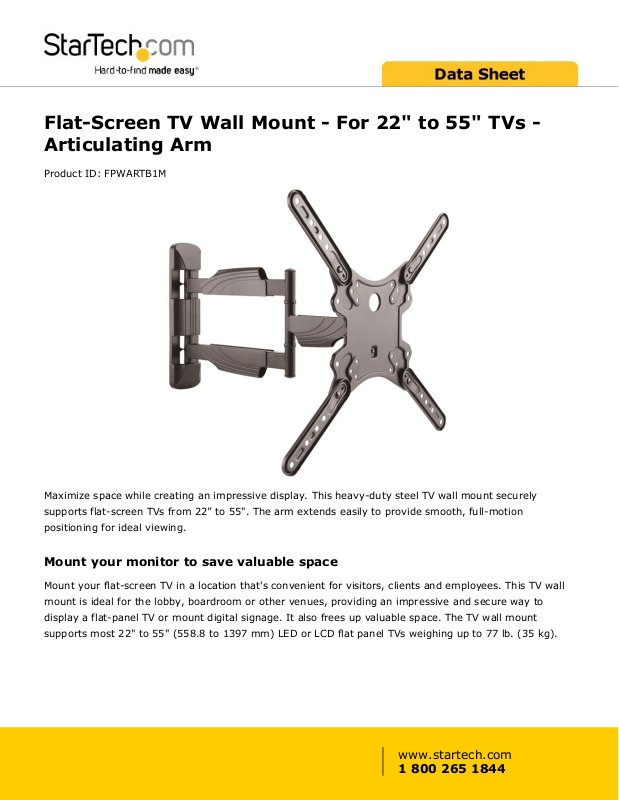

Flat-Screen TV Wall Mount - For 22" to 55" TVs Articulating Arm
Product ID: FPWARTB1M
Maximize space while creating an impressive display. This heavy-duty steel TV wall mount securely
supports flat-screen TVs from 22” to 55". The arm extends easily to provide smooth, full-motion
positioning for ideal viewing.
Mount your monitor to save valuable space
Mount your flat-screen TV in a location that's convenient for visitors, clients and employees. This TV wall
mount is ideal for the lobby, boardroom or other venues, providing an impressive and secure way to
display a flat-panel TV or mount digital signage. It also frees up valuable space. The TV wall mount
supports most 22" to 55" (558.8 to 1397 mm) LED or LCD flat panel TVs weighing up to 77 lb. (35 kg).
www.startech.com
1 800 265 1844
Page 2
Full-motion adjustment
The TV wall mount provides full-motion adjustment capability. The arm extends up to 19.8” (503 mm)
from the wall to provide a wide range of movement and accommodate different screen positions and
angles. The arm can also fold to tuck-in closely to the wall, providing a minimized profile, which enables
you to position your display just 1.9" (49 mm) from the wall.
The TV wall mount swivels +90° / -90° to provide maximum viewing flexibility. The mount also tilts +2°
/ -12°, letting you angle your TV display toward your audience. With the tilt feature, you can mount your
TV lower or higher than eye level and still view it comfortably.
Heavy-duty construction
The robust steel design safely and securely supports your flat-screen TV, to protect your investment. The
TV wall mount also includes plastic brackets for cable management to keep cables neatly out of sight.
The FPWARTB1M is backed by a StarTech.com 2-year warranty and free lifetime technical support.
www.startech.com
1 800 265 1844
Page 3
Certifications, Reports
and Compatibility
Applications
• Safely and securely wall-mount your flat-screen TV for easy viewing
in boardrooms, lobbies, lecture halls, classrooms and meeting spaces
• Keep your guests informed or entertained, ideal in hotels,
restaurants and other hospitality venues
• Save wall and desk space in your home theater
Features
• Heavy-duty steel TV wall mount with articulating arm
• Supports most 22"-55" LED, LCD flat panel TVs up to 77 lb. (35kg)
• Fits curved TVs, with compatible VESA mount
• Full-motion adjustment with arm extension up to 19.8” (503 mm)
• The arm can also tuck-in closely to the wall, extending only 1.9" (49
mm)
• Tilts +2° / -12° for easy angle adjustment
• Arm swivels +90° / -90° to provide maximum viewing flexibility
• Built-in level adjustment allows ideal positioning
• Supports VESA mount compliant TVs: 100x100, 100x150, 200x100,
200x200, 400x200, 300x300, 300x200, 400x300, 400x400
• Cable management
www.startech.com
1 800 265 1844
Page 4
Warranty 2 Years
Hardware # of Displays Supported 1
Articulating Yes
Cable Management Yes
Mounting Options Wall-Mount
VESA Hole Pattern(s) 100x100 mm
100x150 mm
200x100 mm
200x200 mm
400x200 mm
300x300 mm
400x400 mm
400x300 mm
300x200 mm
Wallmountable Yes
Performance Anti-theft No
Fits Curved TV Yes
Maximum Arm Extension 19.8 in [503 mm]
Maximum Display Size 55"
Minimum Display Size 22"
Swivel / Pivot +90° / -90°
Tilt +2° / -12°
Video Wall No
Weight Capacity (Per Display) 77.4 lb [35 kg]
Physical
Characteristics
Color Black
Enclosure Type Steel and Plastic
Product Height 15.7 in [400 mm]
Product Length 24.2 in [614 mm]
Product Weight 6.2 lb [2.8 kg]
Product Width 15.7 in [400 mm]
www.startech.com
1 800 265 1844
Page 5
Packaging
Information
Shipping (Package) Weight 3473.38
What's in the Box Included in Package 1 - wall mount
4 - VESA extension brackets
4 - bracket screws
4 - nuts
1 - wrench
4 - M5x14 mm screws
4 - M6x14 mm screws
4 - M6x30 mm screws
4 - M8x30 mm screws
4 - M8x50 mm screws
4 - small washers
4 - large washers
8 - small spacers
8 - large spacers
4 - screws
4 - concrete screws
4 - bracket washers
1 - instruction manual
Product appearance and specifications are subject to change without notice.
