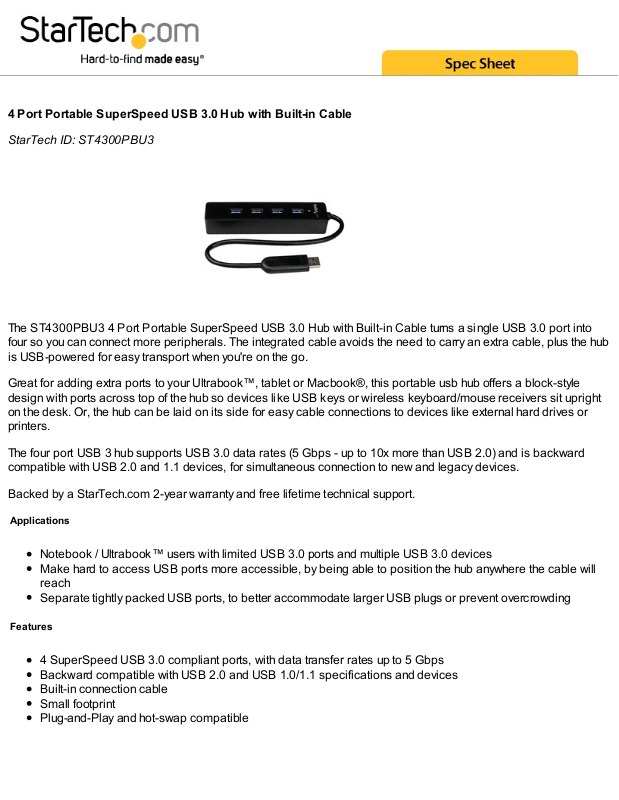

Startech ST4300PBU3 User Manual

4 Port Portable SuperSpeed USB 3.0 Hub with Built-in Cable

StarTech ID: ST4300PBU3

The ST4300PBU3 4 Port Portable SuperSpeed USB 3.0 Hub with Built-in Cable turns a single USB 3.0 port into
four so you can connect more peripherals. The integrated cable avoids the need to carry an extra cable, plus the hub
is USB-powered for easy transport when you're on the go.

Great for adding extra ports to your Ultrabook™, tablet or Macbook®, this portable usb hub offers a block-style
design with ports across top of the hub so devices like USB keys or wireless keyboard/mouse receivers sit upright
on the desk. Or, the hub can be laid on its side for easy cable connections to devices like external hard drives or
printers.

The four port USB 3 hub supports USB 3.0 data rates (5 Gbps - up to 10x more than USB 2.0) and is backward
compatible with USB 2.0 and 1.1 devices, for simultaneous connection to new and legacy devices.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

Notebook / Ultrabook™ users with limited USB 3.0 ports and multiple USB 3.0 devices
Make hard to access USB ports more accessible, by being able to position the hub anywhere the cable will
reach
Separate tightly packed USB ports, to better accommodate larger USB plugs or prevent overcrowding

Features

4 SuperSpeed USB 3.0 compliant ports, with data transfer rates up to 5 Gbps
Backward compatible with USB 2.0 and USB 1.0/1.1 specifications and devices
Built-in connection cable
Small footprint
Plug-and-Play and hot-swap compatible

Technical Specifications

Warranty 2 Years
Bus Type USB 3.0
Chipset ID VIA - VL812
Interface USB 3.0
Ports 4
External Ports 1 - USB 3.0 A (9 pin; SuperSpeed) Male
External Ports 4 - USB 3.0 A (9 pin; SuperSpeed) Female
Maximum Data Transfer Rate 5 Gbps
Type and Rate USB 3.0 - 5 Gbit/s
OS Compatibility Windows® 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64), 2000

Windows® Server 2008 R2, 2003(32/64)

Mac OS 10.4 – 10.8
Cable Length 10 in [254 mm]
Color Black
Enclosure Type Plastic
Product Height 0.9 in [22 mm]
Product Length 5.4 in [137 mm]
Product Weight 2.9 oz [82 g]
Product Width 1.2 in [30 mm]
LED Indicators 1 - Power
Power Adapter Included USB-Powered
Humidity 20~80% RH
Operating Temperature -5°C to 45°C (23°F to 113°F)
Storage Temperature -10°C to 75°C (14°F to 167°F)
System and Cable Requirements Available USB port
Shipping (Package) Weight 4.8 oz [137 g]
Included in Package 1 - USB 3.0 Hub
Included in Package 1 - Instruction Manual
