HDMI over IP Extender Kit with USB
and Serial
ST12MHDLANU
*actual product may vary from photos
FR: Guide de l’utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l’uso - it.startech.com
For the latest information, technical specications, and support for
this product, please visit www.startech.com/ ST12MHDLANU.
Manual Revision: 10/06/2015
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Changes or modications not expressly approved by StarTech.com could void the user’s
authority to operate the equipment.
Industry Canada Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
CAN ICES-3 (B)/NMB-3(B)
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not
represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. Regardless
of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the property of
their respective holders.
Instruction manual
Table of Contents
Introduction ............................................................................................1
Packaging contents .................................................................................................................................. 1
System requirements ...............................................................................................................................1
Product diagram ....................................................................................2
Transmitter Unit .........................................................................................................................................2
Receiver Unit ............................................................................................................................................... 3
Installation ..............................................................................................4
Preparing your site....................................................................................................................................4
Hardware installation .............................................................................................................................. 4
Software installation ................................................................................................................................ 6
Technical support ................................................................................... 7
Warranty information ............................................................................7
Instruction manual
i
Introduction
Packaging contents
• 1 x HDMI over IP transmitter
• 1 x HDMI over IP receiver
• 2 x power adapters
• 2 x screws
• 1 x screwdriver
• 2 x Cat5 cables
• 2 x mounting brackets
• 1 x quick install guide
System requirements
• HDMI enabled video source (e.g. acomputer or Blu-ray™ player)
• HDMI enabled display device(s) (e.g. television, projector), one for each receiver
• HDMI cabling for your video source and each display
• Available AC electrical outlet for the transmitter and each receiver
• Network cabling for the extender and each receiver
• Standard USB A to USB B cable (optional for USB peripheral extension)
• Up to four USB peripheral devices (optional for USB peripheral extension)
Instruction manual
1
Product diagram

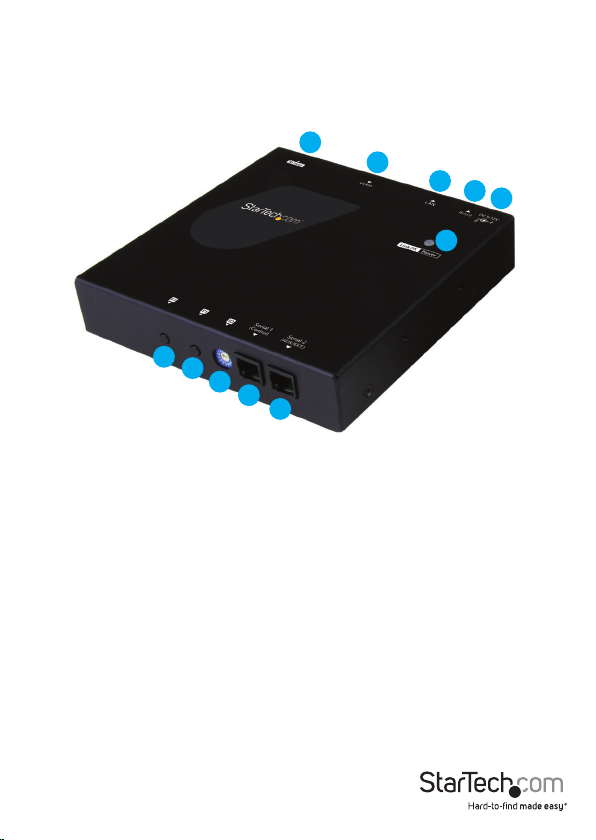

Transmitter Unit
1
7
8
9
10
11
1. USB host port
2. Video input port (HDMI)
3. LAN port (RJ-45 connector)
4. Reset button
5. Power jack
6. Link and power LED
7. Function 2 button
8. Function 1 button
9. Dip rotary switch
10. Serial control (not active)
11. Serial extension (for extending RS232 signal)
2
3
4
5
6
Instruction Manual
2
Receiver Unit
1
7
8
9
1. USB peripheral ports
2. Video output port (HDMI)
3. LAN port (RJ-45 connector)
4. Reset button
5. Power jack
6. Link and power LED
7. Function 2 button
8. Function 1 button
9. Dip rotary switch
10. Serial control (not active)
11. Serial extension (for extending RS232 signal)
2
10
3
4
5
6
11
Note: Serial 1 (control) ports are not active. To control the ST12MHDLANU please
download our free mobile application. (see Page *.)
(Additional receiver units sold separately, StarTech.com SKU: ST12MHDLANUR)
Instruction manual
3
Installation
Preparing your site
Note: The ST12MHDLANU HDMI extender kit lets you extend your video and USB
signals over a Gigabit LAN network – beyond the typical cable length restriction of 330
ft. (100m) of Gigabit network portals.
Refer to the manufacturer of the network equipment to determine the length
restriction and to ensure the transmitter unit and receiver unit(s) are all within the
restricted range of the nearest network portal.
Ensure the transmitter unit, and receiver unit(s) are all situated near AC electrical
outlets.
1. Determine where the local video source (i.e. computer, Blu-ray player) will be
located and set up the transmitter device near that location.
2. Determine where the remote display will be located and set up the receiver near
that location.
3. (Optional) If using additional displays determine where they will be located and
set the additional receiver unit(s) near that location.
Hardware installation
Video wall or point to multi-point installation with a Gigabit LAN network
1. Install the transmitter unit
a) Connect a video source device, such as a computer or Blu-ray player, to the
transmitter’s video input port.
b) (Optional) If you’re using the ST12MHDLANU extender kit to extend USB peripheral
devices, use a standard USB A to USB B cable to connect the USB host port on the
transmitter unit to a USB port on a video source device such as a computer or Bluray player.
c) Connect the transmitter’s DC 9-12V power jack to an AC electrical outlet, using one
of the included power adapters.
2. Install the receiver unit(s)
a) Connect a display to the receiver unit’s video output port using an HDMI cable.
b) (Optional) If you are using the ST12MHDLANU extender kit to extend USB peripheral
devices, connect up to four USB peripheral devices to the receiver unit’s USB ports.
c) Connect the receiver unit’s power jack to an AC electrical outlet, using one of the
included power adapters.
Instruction manual
4
d) (Optional) If you are using additional ST12MHDLANUR receivers (sold separately),
repeat steps [a) through c)] for each additional receiver.
Note: The rotary dip switches on the transmitter and each receiver connected to the
network must be set in the same position for the devices to communicate.
3. Connect the devices to a Gigabit LAN network
a) Connect an RJ-45 terminated Cat5e or Cat6 Ethernet cable to the LAN port on the
transmitter unit, and to each of the receiver units.
b) Connect the other end of the Cat5e or Cat6 cable to a Gigabit LAN hub, router or
switch.
Note: Your router must support IGMP snooping. Please refer to your network switch or
router documentation to ensure IGMP snooping is supported and enabled.
4. Verify that the image from your video source appears on video display(s) attached
to the receiver unit(s).
(Additional receiver units sold separately, StarTech.com SKU: ST12MHDLANUR)
Instruction Manual
5
Software installation
The HDMI distribution kit features video control software that helps you manage your
IP video distribution and video wall conguration. The software is available on iOS
for your iPhone or iPad, Android™ for your smartphone or tablet, and for the Google
Chrome™ browser.
To install the software:
1. Visit http://www.StarTech.com/ST12MHDLANU, using the device you intend to
install software on.
2. Under the overview tab, select the link for the store that corresponds with your
device.
3. Select the option to download and install the software from the store page.
4. Open the software, to verify that it has installed correctly.
Please note: A full production manual with details regarding operation of the
application is available at: http://www.startech.com/ST12MHDLANU
Instruction Manual
6
Technical support
StarTech.com’s lifetime technical support is an integral part of our commitment to
provide industry-leading solutions. If you ever need help with your product, visit
www.startech.com/support and access our comprehensive selection of online tools,
documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty information
This product is backed by a two-year warranty.
StarTech.com warrants its products against defects in materials and workmanship
for the periods noted, following the initial date of purchase. During this period,
the products may be returned for repair, or replacement with equivalent
products at our discretion. The warranty covers parts and labor costs only.
StarTech.com does not warrant its products from defects or damages arising from
misuse, abuse, alteration, or normal wear and tear.
Limitation of liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their
ocers, directors, employees or agents) for any damages (whether direct or indirect,
special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,
or any pecuniary loss, arising out of or related to the use of the product exceed the
actual price paid for the product. Some states do not allow the exclusion or limitation
of incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
