HDMI® Video Over IP Gigabit LAN Ethernet Extender Kit - 1080p

StarTech ID: ST12MHDLAN

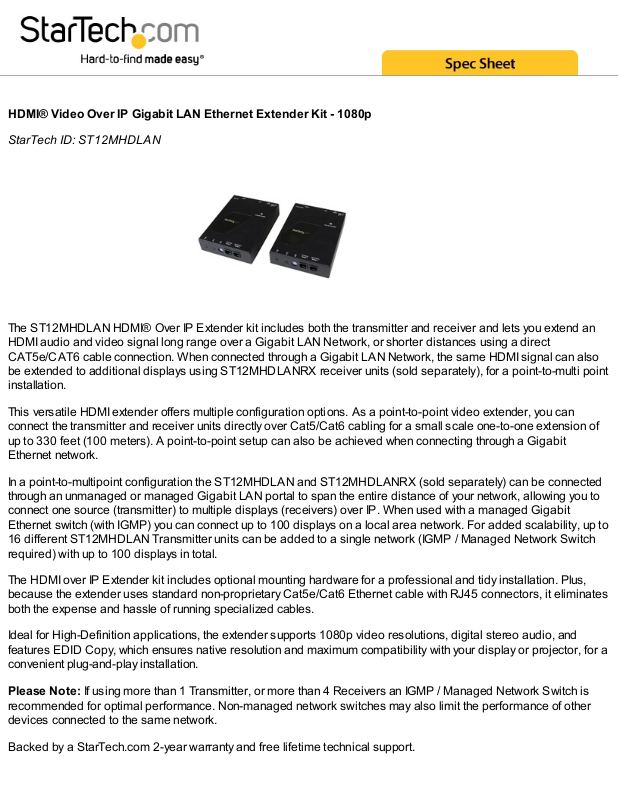

The ST12MHDLAN HDMI® Over IP Extender kit includes both the transmitter and receiver and lets you extend an
HDMI audio and video signal long range over a Gigabit LAN Network, or shorter distances using a direct
CAT5e/CAT6 cable connection. When connected through a Gigabit LAN Network, the same HDMI signal can also
be extended to additional displays using ST12MHDLANRX receiver units (sold separately), for a point-to-multi point
installation.

This versatile HDMI extender offers multiple configuration options. As a point-to-point video extender, you can
connect the transmitter and receiver units directly over Cat5/Cat6 cabling for a small scale one-to-one extension of
up to 330 feet (100 meters). A point-to-point setup can also be achieved when connecting through a Gigabit
Ethernet network.

In a point-to-multipoint configuration the ST12MHDLAN and ST12MHDLANRX (sold separately) can be connected
through an unmanaged or managed Gigabit LAN portal to span the entire distance of your network, allowing you to
connect one source (transmitter) to multiple displays (receivers) over IP. When used with a managed Gigabit
Ethernet switch (with IGMP) you can connect up to 100 displays on a local area network. For added scalability, up to
16 different ST12MHDLAN Transmitter units can be added to a single network (IGMP / Managed Network Switch
required) with up to 100 displays in total.

The HDMI over IP Extender kit includes optional mounting hardware for a professional and tidy installation. Plus,
because the extender uses standard non-proprietary Cat5e/Cat6 Ethernet cable with RJ45 connectors, it eliminates
both the expense and hassle of running specialized cables.

Ideal for High-Definition applications, the extender supports 1080p video resolutions, digital stereo audio, and
features EDID Copy, which ensures native resolution and maximum compatibility with your display or projector, for a
convenient plug-and-play installation.

Please Note: If using more than 1 Transmitter, or more than 4 Receivers an IGMP / Managed Network Switch is
recommended for optimal performance. Non-managed network switches may also limit the performance of other
devices connected to the same network.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

Connect your video source to multiple displays in a point-to-multipoint configuration, over a Gigabit Network
using additional ST12MHDLANRX Receivers
Connect the transmitter and receiver point-to-point directly over Cat5/Cat6 cabling, for a small scale one-to­one video extension up to 330 feet (100 meters)
Connect the transmitter and receiver point-to-point over a Gigabit Ethernet Network for long range HDMI
extension
Place the display in a convenient viewing area, while the HDMI source equipment is placed elsewhere in a
separate, secured environment
Display the same HDMI audio / video signal on over 100 displays, for large scale digital signage applications
Extend HDMI using existing infrastructure
Run multiple transmitters and receivers over the same network using a managed switch

Features

Connect up to 100 displays on a single Gigabit managed network (IGMP, managed switch required)
Stereo Audio
Optional mounting hardware included
Connect through a Gigabit LAN Network, or Point-to-Point
High Definition support for resolutions up to 1080p (1920x1080)
Local transmitter and one remote receiver unit included (additional receiver units available separately)
EDID emulation ensures maximum resolution and compatibility with your display or projector
