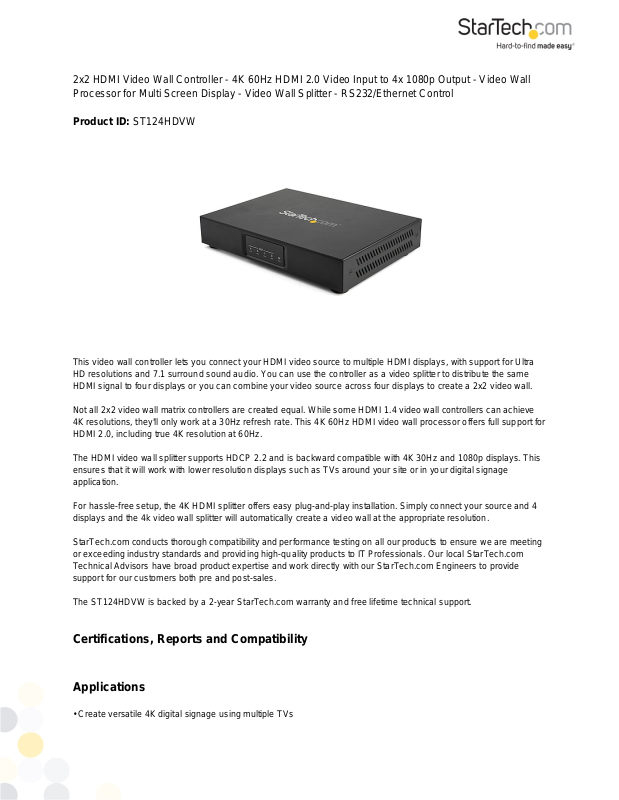

Startech ST124HDVW Product Data Sheet

2x2 HDMI Video Wall Controller - 4K 60Hz HDMI 2.0 Video Input to 4x 1080p Output - Video Wall
Processor for Multi Screen Display - Video Wall Splitter - RS232/Ethernet Control

Product ID: ST124HDVW

This video wall controller lets you connect your HDMI video source to multiple HDMI displays, with support for Ultra
HD resolutions and 7.1 surround sound audio. You can use the controller as a video splitter to distribute the same
HDMI signal to four displays or you can combine your video source across four displays to create a 2x2 video wall.

Not all 2x2 video wall matrix controllers are created equal. While some HDMI 1.4 video wall controllers can achieve
4K resolutions, they'll only work at a 30Hz refresh rate. This 4K 60Hz HDMI video wall processor offers full support for
HDMI 2.0, including true 4K resolution at 60Hz.

The HDMI video wall splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This
ensures that it will work with lower resolution displays such as TVs around your site or in your digital signage
application.

For hassle-free setup, the 4K HDMI splitter offers easy plug-and-play installation. Simply connect your source and 4
displays and the 4k video wall splitter will automatically create a video wall at the appropriate resolution.

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting
or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com
Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide
support for our customers both pre and post-sales.

The ST124HDVW is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Certifications, Reports and Compatibility

Applications

• Create versatile 4K digital signage using multiple TVs

• 2x2 video wall function allows you to combine four separate displays into one large format display

Hardware

Warranty

2 Years

AV Input

HDMI - 2.0

AV Output

HDMI - 2.0

Audio

Yes

Performance

Video Revision

HDMI 2.0

Supported Resolutions

HDMI: 40962160 (4K) / 60Hz
Additional resolutions and refresh rates may be supported

Wide Screen Supported

Yes

Audio Specifications

HDMI - 7.1 Channel Audio

Connector(s)

Connector A

HDMI (19 pin)

RJ-45

DB 9-pin Serial

Features

• 2x2 HDMI VIDEO WALL CONTROLLER: Hardware-based video wall processor can split & scale a 4K 60Hz
(4096x2160) HDMI video input into 4x HDMI 1080p output signals to create a large image across 4 displays for digital
signage; 7.1ch audio, HDCP 2.2/1.4

• EASY SETUP: The 2x2 video wall setup is pre-configured by default; HDMI video wall splitter w/ EDID emulation
allows source video to be detected and properly split w/ the correct video format; Bezel compensation ensures
accurate image display

• SERIAL & IP CONTROL: Features RS232 & Ethernet ports for input/output control & configuration features w/the
Windows-only app, command line, Telnet/UDP; Various layouts: 2x2/1x1/1x4/mirror-duplication

• MOUNT ANYWHERE: Flexible environment/system setup with durable & ventilated metal housing; Built-in mounting
brackets for wall/surface mount; Supports screw locking cables (HDMI & power); ESD protection

• STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; 4-screen video wall controller backed
for 2-years by StarTech.com incl. free 24/5 North America based multi-lingual tech support
