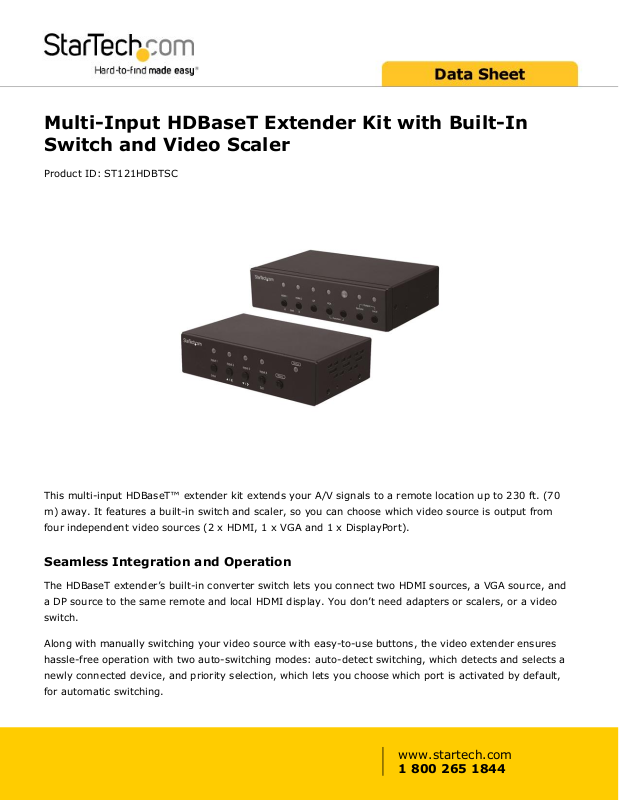

Multi-Input HDBaseT Extender Kit with Built-In
Switch and Video Scaler
Product ID: ST121HDBTSC
This multi-input HDBaseT™ extender kit extends your A/V signals to a remote location up to 230 ft. (70
m) away. It features a built-in switch and scaler, so you can choose which video source is output from
four independent video sources (2 x HDMI, 1 x VGA and 1 x DisplayPort).
Seamless Integration and Operation
The HDBaseT extender’s built-in converter switch lets you connect two HDMI sources, a VGA source, and
a DP source to the same remote and local HDMI display. You don’t need adapters or scalers, or a video
switch.
Along with manually switching your video source with easy-to-use buttons, the video extender ensures
hassle-free operation with two auto-switching modes: auto-detect switching, which detects and selects a
newly connected device, and priority selection, which lets you choose which port is activated by default,
for automatic switching.
www.startech.com
1 800 265 1844
Page 2
Built-In Video Scaling
This HDBaseT extender features a built-in scaler that scales the image to 1080p, so you can rest assured
your HDMI display will intuitively work with any source that’s connected through it. Scaling is easy to
do, with an intuitive OSD that's accessible using buttons on the remote receiver. Newer HDMI displays no
longer support legacy resolution video signals. Without support for these common VGA resolutions, your
source may not work with your new HDMI display.
High-Definition 1080p Video at 230 Feet (70 Meters)
The extender kit maintains your HD picture quality, even at 230 ft. (70 m) away from your video source,
ensuring you can provide the best possible viewing experience.
The ST121HDBTSC is backed by a 2-year StarTech.com warranty and free lifetime technical support.
www.startech.com
1 800 265 1844
Page 3
Certifications, Reports
and Compatibility
Applications
• Create brilliant digital signage displays in large public settings such
as hospitals, shopping centers or stadiums
• Automatically switch between your set-top box or computer, for
remote entertainment displays, in hospitality settings such as
restaurants, bars or hotels
Features
• Save hassle and expense with a switch and extender in one device,
that accommodates VGA, DP and HDMI inputs
• Ensure perfect video connectivity, every time, with a built-in video
scaler
• Get crystal-clear picture quality at impressive distances with 1080
resolution at up to 230 ft.
www.startech.com
1 800 265 1844
Page 4
Warranty 2 Years
Hardware Audio Yes
Cabling Cat 5e UTP or better
Daisy-Chain No
Rack-Mountable Yes
Performance Audio Specifications 2-channel
Max Distance 70 m / 230 ft
Maximum Cable Length 229.6 ft [70 m]
Maximum Digital Resolutions 1920x1200 @ 60 Hz
Supported Resolutions 1920x1200 @ 60 Hz, 1920x1080 (1080p), 1680x1050,
1600x1200, 1440x900, 1400x1050, 1366x768, 1280x800,
1360x768, 1280x1024, 1280x720 (720p), 1024x768,
800x600, 640x480
Lower resolutions and refresh rates are also supported.
Wide Screen Supported Yes
Connector(s) Local Unit Connectors 2 - HDMI (19 pin) Female Input
1 - DisplayPort (20 pin) Female Input
1 - 3.5 mm Mini-Jack (3 Position) Female Input
1 - VGA (15 pin, High Density D-Sub) Female Input
1 - HDMI (19 pin) Female Output
2 - IrDA (Infrared, SIR/FIR) Female
1 - RJ-45 Female Output
1 - RJ-11 Female
Remote Unit Connectors 1 - RJ-45 Female Input
1 - HDMI (19 pin) Female Output
1 - RJ-11 Female
Indicators LED Indicators 4 - selected port LEDs (transmitter)
2 - status LEDs (transmitter)
4 - input LEDs (receiver)
1 - status LED (receiver)
4 - selected port LEDs (receiver)
Power Center Tip Polarity Positive
Input Current 0.6 A
www.startech.com
1 800 265 1844
Page 5
Input Voltage 100 ~ 240 AC
Output Current 1.5 A
Output Voltage 12 DC
Plug Type M
Power Consumption (In Watts) 18
Power Source AC Adapter Included
Environmental Humidity 0% - 80 % RH (non-condensing)
Operating Temperature 0° to 40°C (32°F to 104°F)
Storage Temperature -10° to 60°C (14°F to 140°F)
Physical
Characteristics
Color Black
Enclosure Type Aluminum
Product Height 2.6 in [67 mm]
Product Length 4.2 in [106 mm]
Product Weight 5.1 oz [145 g]
Product Width 2.4 in [61 mm]
Packaging
Information
Package Quantity 1
Shipping (Package) Weight 6.9 oz [195 g]
What's in the Box Included in Package 1 - HDBaseT transmitter
1 - HDBaseT scaler receiver
1 - remote control
1 - RJ-11 to RS-232 adapter
1 - CAT5 cable
1 - RJ-11 cable
2 - sets of mounting brackets
1 - universal power adapter (NA/JP, EU, UK, ANZ)
1 - IR blaster
1 - IR receiver
2 - sets of rubber feet
1 - quick-start guide
Product appearance and specifications are subject to change without notice.
