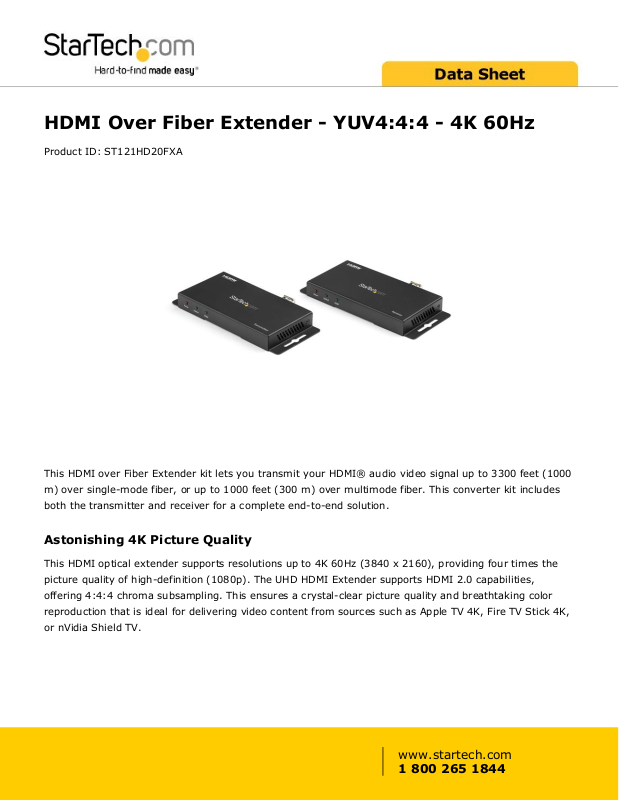

HDMI Over Fiber Extender - YUV4:4:4 - 4K 60Hz
Product ID: ST121HD20FXA
This HDMI over Fiber Extender kit lets you transmit your HDMI® audio video signal up to 3300 feet (1000
m) over single-mode fiber, or up to 1000 feet (300 m) over multimode fiber. This converter kit includes
both the transmitter and receiver for a complete end-to-end solution.
Astonishing 4K Picture Quality
This HDMI optical extender supports resolutions up to 4K 60Hz (3840 x 2160), providing four times the
picture quality of high-definition (1080p). The UHD HDMI Extender supports HDMI 2.0 capabilities,
offering 4:4:4 chroma subsampling. This ensures a crystal-clear picture quality and breathtaking color
reproduction that is ideal for delivering video content from sources such as Apple TV 4K, Fire TV Stick 4K,
or nVidia Shield TV.
www.startech.com
1 800 265 1844
Long-Distance Transmission
The Long Range HDMI Extender allows you to extend an HDMI signal up to 3300 feet (1000 m) over
single-mode fiber and 1000 feet (300 m) over multimode fiber. Not only is this an incredibly long
range solution that can extend an HDMI signal across or between buildings, but because fiber optics
transmit data using light rather than copper, it will not cause or be affected by electromagnetic
Interference (EMI).
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we
are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our
local StarTech.com Technical Advisors have broad product expertise and work directly with our
StarTech.com Engineers to provide support for our customers both pre and post-sales.
ST121HD20FXA is backed by 2-year StarTech.com warranty with free lifetime technical support.
www.startech.com
1 800 265 1844
Certifications, Reports
and Compatibility
Features
• Delivers astonishing picture quality with UHD 4K 60Hz up to 3300
feet (1000 m) over single-mode fiber or up to 1000 feet (300 m)
over multimode fiber
• No software or drivers required
• Dolby® Atmos, TrueHD, DTS-HD Master Audio, 7.1 channel
• Lifelike colors with HDR and 4:4:4 chroma subsampling support
• Ensured compatibility with HDCP 2.2 devices and displays
www.startech.com
1 800 265 1844
Warranty 2 Years
Hardware Audio Yes
Cabling Fiber Optic
Daisy-Chain No
Ports 1
Rack-Mountable Optional
Performance Audio Specifications Supports Dolby® TrueHD, DTS-HD MA, Atmos
IR Interface Bi-directional
38Khz / ±10° / 5M
Max Distance 1 km (0.6 mi)
Maximum Cable Length 3.3 ft [1 m]
Maximum Data Transfer Rate 18 Gbps
Maximum Digital Resolutions 4096 x 2160 (4K) @ 60 Hz
Supported Resolutions Single Mode
1000 Meters at 4096 x 2160 60Hz
Multimode
300 Meters at 4096 x 2160 60Hz
Wide Screen Supported Yes
Connector(s) Local Unit Connectors 1 - HDMI (19 pin) Female
1 - Fiber Optic LC Simplex Female
1 - IrDA (Infrared, SIR/FIR) Female
Remote Unit Connectors 1 - HDMI (19 pin) Female
1 - Fiber Optic LC Simplex Female
1 - IrDA (Infrared, SIR/FIR) Female
Power Center Tip Polarity Positive
Input Voltage 100 - 240 AC
Output Current 1A
Output Voltage 5V DC
Plug Type M
Power Consumption (In Watts) 3
Power Source 2 AC Adapters Included
Environmental Humidity 0-80%
Operating Temperature 0°C to 40°C (32°F to 104°F)
www.startech.com
1 800 265 1844
Storage Temperature -10°C to 60°C (14°F to 140°F)
Physical
Characteristics
Color Black
Material Steel
Product Height 26.000
Product Length 3.9 in [10 cm]
Product Width 66.000
Weight of Product 900.000
Packaging
Information
Package Height 55.000
Package Length 183.000
Package Width 248.000
Shipping (Package) Weight 915.000
What's in the Box Included in Package 1 - Local HDMI® Extender Unit
1 - Remote HDMI® Receiver Unit
2 - IR Receiver
2 - IR Blaster
2 - Mounting Brackets
1 - 7ft. [2.1m] Fiber Optic Patch Cable
2 - Foot Pad Set
2 - Universal Power Adapter NA / UK / EU / AU
1 - User Manual
Product appearance and specifications are subject to change without notice.
