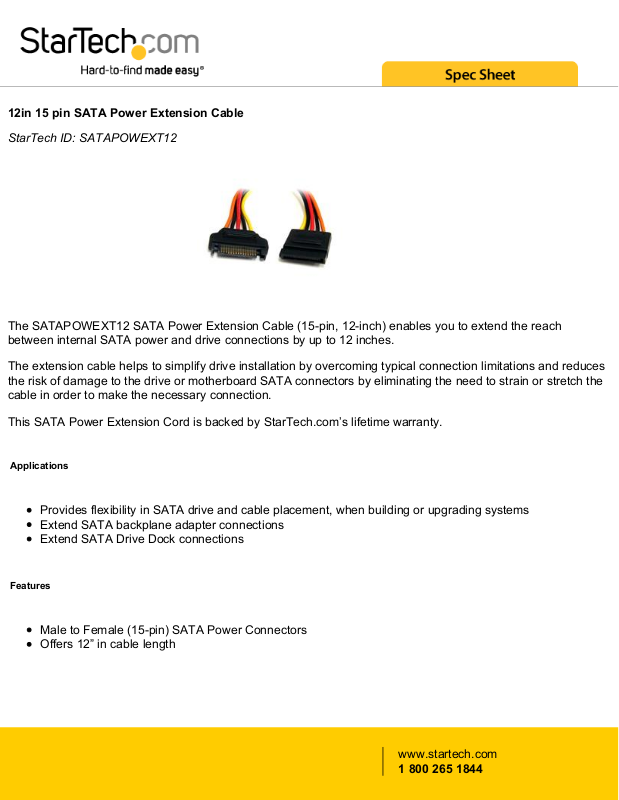

Startech SATAPOWEXT12 User Manual

12in 15 pin SATA Power Extension Cable

StarTech ID: SATAPOWEXT12

The SATAPOWEXT12 SATA Power Extension Cable (15-pin, 12-inch) enables you to extend the reach
between internal SATA power and drive connections by up to 12 inches.

The extension cable helps to simplify drive installation by overcoming typical connection limitations and reduces
the risk of damage to the drive or motherboard SATA connectors by eliminating the need to strain or stretch the
cable in order to make the necessary connection.

This SATA Power Extension Cord is backed by StarTech.com’s lifetime warranty.

Applications

Provides flexibility in SATA drive and cable placement, when building or upgrading systems
Extend SATA backplane adapter connections
Extend SATA Drive Dock connections

Features

Male to Female (15-pin) SATA Power Connectors
Offers 12” in cable length

www.startech.com

1 800 265 1844

Technical Specifications

Warranty Lifetime
Connector A 1 - SATA Power (15 pin) Plug
Connector B 1 - SATA Power (15 pin) Receptacle
Cable Length 12 in [304.8 mm]
Product Height 0.4 in [10 mm]
Product Length 12 in [304.8 mm]
Product Weight 0 lb [0 kg]
Product Width 1 in [25 mm]
Wire Gauge 18 AWG
Package Quantity 1
Shipping (Package) Weight 0.1 lb [0 kg]
Included in Package 1 - 12in 15 pin SATA Power Extension Cable
