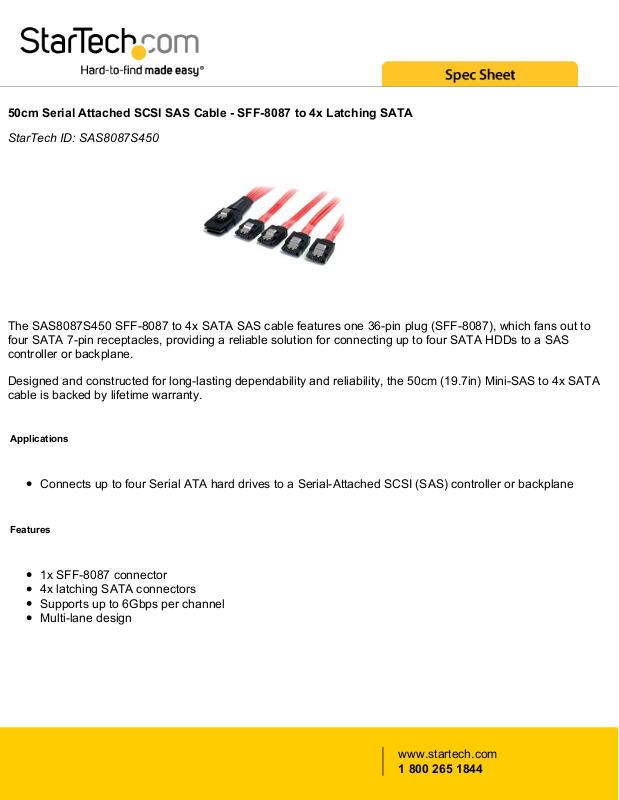

Startech SAS8087S450 User Manual

50cm Serial Attached SCSI SAS Cable - SFF-8087 to 4x Latching SATA
StarTech ID: SAS8087S450
The SAS8087S450 SFF-8087 to 4x SATA SAS cable features one 36-pin plug (SFF-8087), which fans out to four SATA 7-pin receptacles, providing a reliable solution for connecting up to four SATA HDDs to a SAS controller or backplane.
Designed and constructed for long-lasting dependability and reliability, the 50cm (19.7in) Mini-SAS to 4x SATA cable is backed by lifetime warranty.
Applications
Features
1x SFF-8087 connector 4x latching SATA connectors Supports up to 6Gbps per channel Multi-lane design
www.startech.com
1 800 265 1844
Technical Specifications
Warranty Lifetime Number of Conductors 2 Type and Rate SATA III (6 Gbps) Connector A 1 - SFF-8087 (36 Pin; Internal Mini-SAS) Latching Plug Connector B 4 - SATA (7 pin; Data) Latching Receptacle Cable Length 19 in [48.3 cm] Color Red Connector Style Latching Product Weight 0.1 lb [0.1 kg] Wire Gauge 30 AWG Shipping (Package) Weight 0.1 lb [0.1 kg] Included in Package 1 - 50cm Serial Attached SCSI SAS Cable - SFF-8087 to 4x Latching SATA
Certifications, Reports and Compatibility
