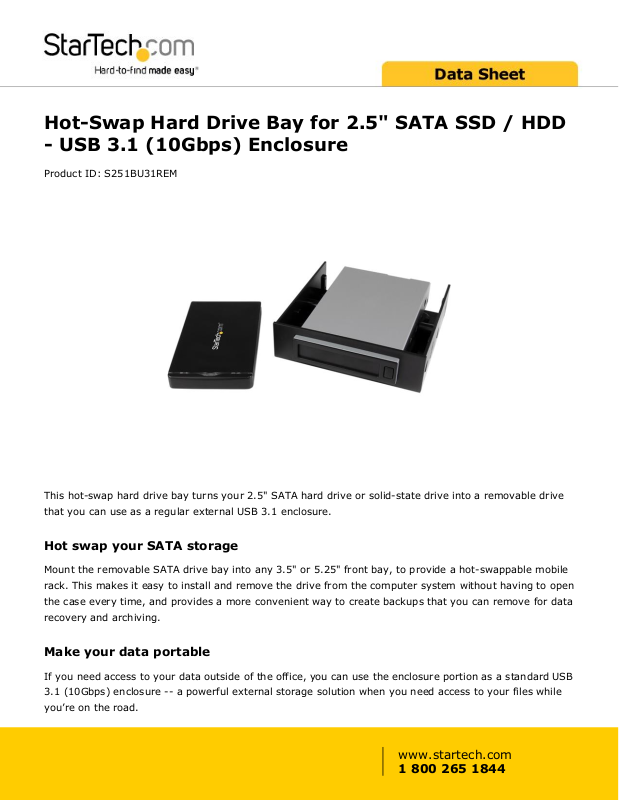

Hot-Swap Hard Drive Bay for 2.5" SATA SSD / HDD
- USB 3.1 (10Gbps) Enclosure
Product ID: S251BU31REM
This hot-swap hard drive bay turns your 2.5" SATA hard drive or solid-state drive into a removable drive
that you can use as a regular external USB 3.1 enclosure.
Hot swap your SATA storage
Mount the removable SATA drive bay into any 3.5" or 5.25" front bay, to provide a hot-swappable mobile
rack. This makes it easy to install and remove the drive from the computer system without having to open
the case every time, and provides a more convenient way to create backups that you can remove for data
recovery and archiving.
Make your data portable
If you need access to your data outside of the office, you can use the enclosure portion as a standard USB
3.1 (10Gbps) enclosure -- a powerful external storage solution when you need access to your files while
you’re on the road.
www.startech.com
1 800 265 1844
Page 2
Simply eject the enclosure from the bay for portable data storage. Its lightweight, compact design makes
it easy to tuck into a laptop bag or carrying case. The enclosure includes a Micro-USB to USB-A and a
Micro-USB to USB-C cable, so you can plug the enclosure into your laptop and access your data anywhere
you go.
Add scalability to your storage
For even more versatility, StarTech.com offers the S251BU31REMD, an extra 2.5" SATA Drive Enclosure
for the S251BU31REM, providing multiple enclosures that can be swapped in and out of the main
computer.
The S251BU31REM backed by a StarTech.com 2-year warranty and free lifetime technical support.
www.startech.com
1 800 265 1844
Page 3
Certifications, Reports
and Compatibility
Applications
• Add a hot-swap bay to a server or workstation computer, for a
removable data backup solution
• Switch between fast internal storage and portable external storage
• Environments where storage drives need to be replaced and removed
regularly
Features
• Hot-swap your 2.5" SSD and HDD drives
• Unique enclosure style design provides the option to use as an
internal mobile rack or an external USB 3.1 enclosure
• Access your data offline with a portable USB 3.1 (10Gbps) drive
enclosure
• One USB-C to Micro-USB cable and one USB-A to Micro-USB cable
included for compatibility with your USB-C and USB-A laptop
• Front-mount drive bay design installs into any standard 3.5" or 5.25"
bay
• Push-button drive ejection from the front-mount bay
• High-quality vented metal enclosure provides enhanced heat
dissipation
• Compatible with SATA revision 1/2/3 (1.5/3.0/6.0Gbps) drives
• Supports 2.5" form factor SATA hard drives (HDD) and solid-state
drives (SSD)
www.startech.com
1 800 265 1844
Page 4
Warranty 2 Years
Hardware Bus Type USB 3.1 Gen 2
Chipset ID ASMedia - ASM1351
Compatible Drive Types SATA
Drive Installation Removable
Drive Size 2.5in
Front Door Key Lock No
Interface SATA
USB 3.1 Gen 2
Number of Drives 1
Supported Drive Height(s) 5mm
7mm
9.5mm
Performance 4Kn Support Yes
Max Drive Capacity Currently tested with hard drives up to 2TB at 7200 RPM.
Maximum Data Transfer Rate 10Gbps
MTBF 100,000 hours
TRIM Support Yes
Type and Rate USB 3.1 Gen 2 - 10 Gbit/s
SATA III (6 Gbps)
UASP Support Yes
Connector(s) Drive Connectors 1 - SATA Data & Power Combo (7+15 pin) Receptacle
Host Connectors 1 - USB 3.1 USB Type Micro-B (10 pin, Gen 2, 10 Gbps)
Female
1 - SATA (7 pin, Data) Plug
1 - SP4 (4 pin, Small Drive Power) Male
Software OS Compatibility OS independent; No software or drivers required
Special Notes /
Requirements
System and Cable Requirements Available 3.5" or 5.25" front bay
Available internal SATA data connector
Available SATA or LP4 Molex internal power connector
Indicators LED Indicators 1 - Power(Green)
www.startech.com
1 800 265 1844
Page 5
1 - Activity(Red)
Power Power Source USB-Powered
Environmental Humidity Operation Humidity: 10% ~ 90% RH
Storage Humidity: 5% ~ 95% RH
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 65°C (14°F to 149°F)
Physical
Characteristics
Color Black
Enclosure Type Aluminum and Plastic
Max Drive Height 0.4 in [9.5 mm]
Product Height 1.6 in [41.6 mm]
Product Length 6.1 in [154.8 mm]
Product Weight 15 oz [426 g]
Product Width 5.7 in [145.8 mm]
Packaging
Information
Shipping (Package) Weight 25.2 oz [715 g]
What's in the Box Included in Package 1 - 2.5” SATA enclosure
1 - 3.5” front-panel drive bay
1 - 3.5” to 5.25” front bay adapter bracket
1 - SATA data cable
1 - SATA power cable
1 - Molex power cable
1 - USB-C to Micro-B cable
1 - USB-A to Micro-B cable
1 - set of drive-mounting hardware
4 - bay-mounting screws
4 - bracket-mounting screws
1 - quick-start guide
Product appearance and specifications are subject to change without notice.
