Introduction
Packaging Contents
• 1 x Wireless-N USB 2.0 AirPrint™ Server
• 1 x Universal Power Adapter (NA/UK/EU)
• 1 x Driver CD
• 1 x Instruction Manual
System Requirements
• Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64), Windows Server®
2012, 2008 R2, 2003(32/64), Mac OS® 10.8 and up (Tested up to 10.9)
Installation
Hardware Installation
1. Power o the printer that will be used with the print server and leave the print
server power adapter disconnected.
2. Connect your printer to the USB port on the print server.
3. Power on your printer so it is ready for use.
4. Connect the Power Adapter to the print server - the Power LED will light up. When
the LAN indicator lights up, the print server is correctly connected to the network.
Software Installation
To congure the print server to be used from a PC or Mac, you will rst need to install
the included software, outlined in the steps below.
Windows
1. Connect a Cat 5 (or better) Ethernet cable to the LAN port on the print server, then
to your router / network.
Note: Initial conguration must be done from a wired connection. Once the device
has been connected to an existing access point and set with proper IP settings for
your wireless network, the LAN cable can be disconnected.
2. From your computer that is connected to the same router/network, insert the
included CD into your CD/DVD drive.
3. Browse to the “Windows” folder and run the Setup.exe application.
Instruction Manual
1
4. Follow the on-screen instructions to complete the installation.
5. Start the USB Device Server Control Center to search for available print servers on
the network.
6. Select your print server from the list and click Congure Server.
7. Login with your username / password (Default: admin / admin).
8. Congure your desired IP address (Static / DHCP), user account name / password
and security settings.
Note: To prevent unauthorized access / changes to the print server, it is
recommended to change the default username / password for logging into the
device, and to enable encryption on the wireless connection.
9. If you want to connect the print server to the network wirelessly, click the Connect
to Another AP button to view a list of available networks and choose the access
point you would like the server to connect to.
Instruction Manual
2
10. Once the wireless connection has been established, the LAN cable can be
disconnected from the print server.
Instruction Manual
3
Mac OS
1. Connect a Cat 5 (or better) Ethernet cable to the LAN port on the print server, then
to your router / network.
Note: Initial conguration must be done from a wired connection. Once the device
has been connected to an existing access point and set with proper IP settings for
your wireless network, the LAN cable can be disconnected.
2. From your computer that is connected to the same router/network, insert the
provided CD into your DVD/CD-ROM drive.
3. Browse to your DVD/CD-ROM drive, then to the “Mac OS” folder on the disc.
4. Mount the StarTech.com USB Device Server Control Center Installer.dmg le,
and then run the StarTech.com USB Device Server Control Center Installer.pkg
application to start the install.
5. Follow the on-screen instructions to complete the installation.
6. Start the USB Device Server Control Center to search for available print servers on
the network.
7. Select your print server from the list and click the Home button to congure the
server.
8. Login with your username / password (Default: admin / admin).
9. Congure your desired IP address (Static / DHCP), user account name / password
and security settings.
Note: To prevent unauthorized access / changes to the print server, it is
recommended to change the default username / password for logging into the
device, and to enable encryption on the wireless connection.
Instruction Manual
4
10. If you want to connect the print server to the network wirelessly, click the
Connect to Another AP button to view a list of available networks and choose the
access point you would like the server to connect to.
11. Once the wireless connection has been established, the LAN cable can be
disconnected from the print server.
Instruction Manual
5
Operation
Printing Using AirPrint™
AirPrint is an Apple technology that lets you print wirelessly from your iOS device,
without the need to download or install drivers.
Supported devices:
• iPad (all models)
• iPhone (3GS or later)
• iPod touch (3rd generation or later)
1. Ensure that your iOS device is connected to the same wireless access point that the print server is using.
2. Tap the or icons, which are at the bottom of your screen.
3. Tap the printer icon ( ).
4. Choose your printer, the number of copies you want, and then tap Print.
Note: If you are printing for the rst time, ensure that you are within range of your printer. All AirPrintenabled printers within range will be displayed.
Adding a Printer
Windows
1. Start the USB Device Server Control Center software and allow it to nd the print
server on your LAN / Wireless connection.
2. Select the printer that you would like to connect and click the Connect button to
automatically map the network printer. If this is the rst time you’re connecting the
printer, Windows may take a moment to install the printer and detect / prompt for
drivers.
Instruction Manual
6
Note: Only one PC at a time can Connect the printer using this method
3. Once you are done using the printer, click the Disconnect button.
Auto-Connecting the Printer
The print server also supports an Auto-Connect function so that you don’t have to
connect / disconnect manually, after the driver for the printer has been installed (i.e.
after the rst manual connect operation or physical connection to the computer).
1. In the USB Device Server Control Center Software, click Auto-
Connect Printer, then Set Auto-Connect Printer.
2. In the window that opens, select your printer and click Apply.
3. When you send a print job, the software will automatically connect the printer
and send the print job to it, as long as the control center software is running.
Mac OS
1. Start the USB Device Server Control Center software and allow it to nd the print
server on your LAN / Wireless connection.
2. Select the printer that you would like to connect and click the Connect button to
automatically map the network printer. If this is the rst time you’re connecting the
printer, Mac OS may take a moment to install the printer and detect / prompt for drivers
Note: Only one PC at a time can Connect the printer using this method
3. Once you are done using the printer, click the Disconnect button.
Instruction Manual
7
Auto-Connecting the Printer
The print server also supports an Auto-Connect function so that you don’t have to
connect / disconnect manually, after the driver for the printer has been installed (i.e.
after the rst manual connect operation or physical connection to the computer).

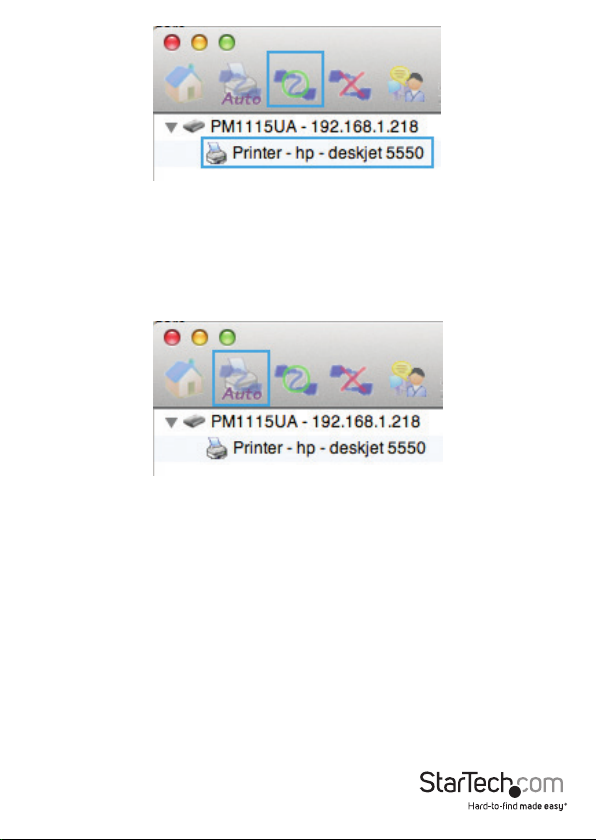

4. In the USB Device Server Control Center Software, click the Auto-Connect button.
5. In the window that opens, select your printer and click Apply.
6. When you send a print job, the software will automatically connect the printer and
send the print job to it, as long as the control center software is running.
For complete operating instructions, please visit www.startech.com/PM1115UA
Instruction Manual
8
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to
provide industry-leading solutions. If you ever need help with your product, visit
www.startech.com/support and access our comprehensive selection of online tools,
documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty Information
This product is backed by a two year warranty.
In addition, StarTech.com warrants its products against defects in materials
and workmanship for the periods noted, following the initial date of purchase.
During this period, the products may be returned for repair, or replacement with
equivalent products at our discretion. The warranty covers parts and labor costs only.
StarTech.com does not warrant its products from defects or damages arising from
misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their
ocers, directors, employees or agents) for any damages (whether direct or indirect,
special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,
or any pecuniary loss, arising out of or related to the use of the product exceed the
actual price paid for the product. Some states do not allow the exclusion or limitation
of incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
Instruction Manual
9
Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.
StarTech.com is your one-stop source for every connectivity part you need. From
the latest technology to legacy products — and all the parts that bridge the old and
new — we can help you nd the parts that connect your solutions.
We make it easy to locate the parts, and we quickly deliver them wherever they need
to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to
the products you need in no time.
Visit www.startech.com for complete information on all StarTech.com products and
to access exclusive resources and time-saving tools.
StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology
parts. StarTech.com was founded in 1985 and has operations in the United States,
Canada, the United Kingdom and Taiwan servicing a worldwide market.
Loading...
