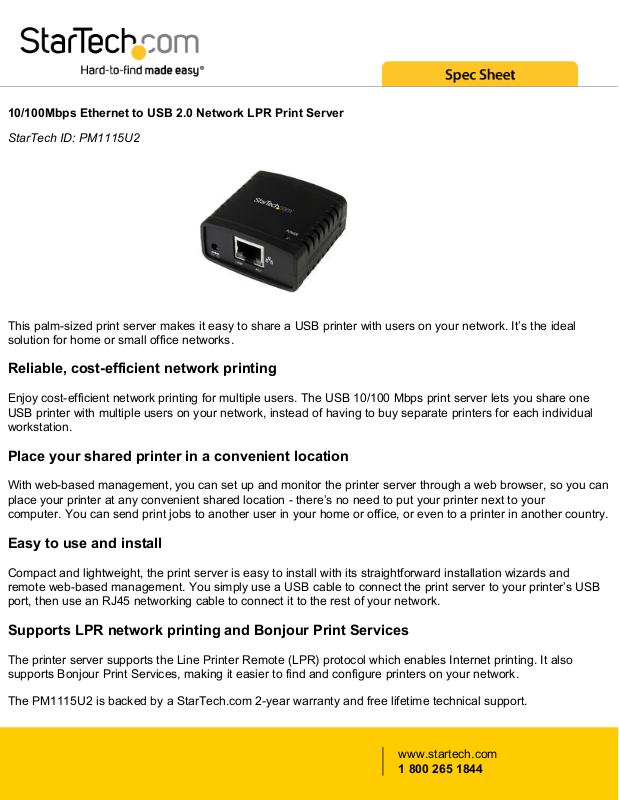

Startech PM1115U2 User Manual

10/100Mbps Ethernet to USB 2.0 Network LPR Print Server
StarTech ID: PM1115U2
This palm-sized print server makes it easy to share a USB printer with users on your network. It’s the ideal solution for home or small office networks.
Reliable, cost-efficient network printing
Enjoy cost-efficient network printing for multiple users. The USB 10/100 Mbps print server lets you share one USB printer with multiple users on your network, instead of having to buy separate printers for each individual workstation.
With web-based management, you can set up and monitor the printer server through a web browser, so you can place your printer at any convenient shared location - there’s no need to put your printer next to your computer. You can send print jobs to another user in your home or office, or even to a printer in another country.
Easy to use and install
Compact and lightweight, the print server is easy to install with its straightforward installation wizards and remote web-based management. You simply use a USB cable to connect the print server to your printer’s USB port, then use an RJ45 networking cable to connect it to the rest of your network.
Supports LPR network printing and Bonjour Print Services
The printer server supports the Line Printer Remote (LPR) protocol which enables Internet printing. It also supports Bonjour Print Services, making it easier to find and configure printers on your network.
The PM1115U2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
www.startech.com
1 800 265 1844
Applications
Allows multiple users on an Ethernet network to share one USB printer Provides a reliable network printing solution for home, small office, educational and government institutions and any other environments that require printer sharing
Features
Share a single USB printer with multiple users over a network Print from any network computer, across the office or over the Internet Provides a reliable Ethernet connection with 10Base-T/100Base-TX auto-sensing Compliant with USB 2.0 Compatible with most standard printers Easy to configure using Windows based setup program or web-based management Supports LPR network printing, Bonjour Print Services Full-duplex support Jumbo frame support Auto MDI-X support Compact housing
www.startech.com
1 800 265 1844
Technical Specifications
Warranty 2 Years Chipset ID EST2862B Industry Standards Compliant with IEEE 802.3 10BASE-T and IEEE 802.3u 100BASE-TX Ports 1 Auto MDIX Yes Full Duplex
Support
Yes
Jumbo Frame Support
9K max.
Max Distance 100 m / 330 ft Maximum Data
Transfer Rate
100 Mbps
Remote Management Ability
Yes
Supported Protocols
LPR
External Ports 1 - RJ-45 Female External Ports 1 - USB A (4 pin) Female OS Compatibility Windows® XP, 7, 8 / RT
Windows Server® 2003, 2008 R2, 2012 Mac OS® 10.6 to 10.10
Note OS Compatibility refers to the included software only - the Print Server itself can be used
without software on most platforms that support network printing
System and Cable Requirements
Printer with USB connection
System and Cable Requirements
USB printer cable not included
LED Indicators 1 - Power LED Indicators 1 - Link LED Indicators 1 - Activity Center Tip Polarity Positive Input Current 0.3 Input Voltage 100 ~ 240 AC Output Current 1A
www.startech.com
1 800 265 1844
Output Voltage 5 DC Plug Type B Power
Consumption
200mA
Power Source AC Adapter Included Humidity 10% ~ 90% RH Operating
Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Color Black Enclosure Type Plastic Product Height 0.9 in [23 mm] Product Length 2.1 in [53 mm] Product Weight 2.2 oz [62 g] Product Width 2.1 in [54 mm] Shipping
(Package) Weight
11.5 oz [326 g]
Included in Package
1 - USB 2.0 network LPR print server
Included in Package
1 - universal power adapter (NA / UK / EU, AU)
Included in Package
1 - RJ45 network cable
Included in Package
1 - quick start guide
Included in Package
1 - software CD
www.startech.com
1 800 265 1844
Certifications, Reports and Compatibility
