Startech PEXSAT34RH User Manual

4 Port PCIe SATA III 6Gbps RAID Controller Card
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 04/30/2013
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.
Instruction Manual
Table of Contents
Introduction ............................................................................................1
Packaging Contents ................................................................................................................................. 1
System Requirements .............................................................................................................................. 1
Product Diagram ....................................................................................2
Installation ..............................................................................................3
Hardware Installation ..............................................................................................................................3
Driver Installation ...................................................................................................................................... 4
Management Utility Installation (Optional - Windows only) ..................................................... 5
Verifying Installation ................................................................................................................................ 7
Port Multiplier ........................................................................................ 7
Operation ................................................................................................8
RAID Conguration ..................................................................................................................................8
Administration Console Method ......................................................................................................... 9
HyperDuo Conguration ........................................................................................................................ 11
Card BIOS Method ....................................................................................................................................11
Administration Console Method ......................................................................................................... 12
HyperDuo Management (Windows only) ........................................................................................13
Specications ..........................................................................................15
Technical Support ..................................................................................16
Warranty Information ............................................................................16
Instruction Manual
i
Introduction
The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs).
Featuring HyperDuo technology, the SATA card oers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-eectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed les to the faster SSD drive(s) for improved data throughput – up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with Windows® XP, Vista, 7 and 8 only)
The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Plus, the SATA controller card oers an eective hardware RAID solution, with native RAID (0, 1, 1+0) support.
Packaging Contents
• 1x PCIe SATA Controller Card
• 1x Low Prole Bracket
• 1x Driver CD
• 1x Instruction Manual
System Requirements
• PCI Express enabled computer with an available PCI Express x2 slot
• Windows® XP (32/64-bit)/ Server 2003(32/64-bit)/ Vista (32/64-bit)/ 7 (32/64-bit)/ Server 2008 R2/ 8 (32/64-bit), or Apple® Mac OS® 10.6/ 10.7/ 10.8, or Linux®
Instruction Manual
1
Product Diagram
4x SATA III ports
Instruction Manual
2
Installation
Hardware Installation
WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. Also be careful to handle the PCI Express card by its edges and not the gold connectors.
1. Turn your computer o and any peripherals connected to the computer (i.e. Printers, external hard drives, etc.). Unplug the power cable from the rear of the power supply on the back of the computer and disconnect all peripheral devices.
2. Remove the cover from the computer case. See documentation for your computer system for details.
3. Locate an open PCI Express x2 slot and remove the metal cover plate on the rear of the computer case (Refer to documentation for your computer system for details).
NOTE: This card will work in PCI Express slots of additional lanes (i.e.x4, x8, or x16 slots).
4. Gently insert the card into the open PCI Express slot and fasten the bracket to the rear of the case.
NOTE: If installing the card into a small form factor/low prole system, replacing the pre-installed full prole bracket with the included low prole installation bracket may be necessary.
5. Connect SATA cables from the ports on the card to the SATA devices inside the computer.
6. Place the cover back onto the computer case.
7. Insert the power cable into the socket on the power supply and reconnect all other connectors removed in Step 1.
Instruction Manual
3
Driver Installation
Windows XP
NOTE: The latest driver is available from www.startech.com.
1. Once the computer has started and the operating system is fully loaded, insert the provided Driver CD into the computer’s CD/DVD drive.
2. AutoPlay should give you the option to browse the les on the CD or automatically open the CD.
If AutoPlay does not start, go into “My Computer” and access the CD/DVD drive that the CD is in.
3. Open the folder “SATA6G_M9128”. Run the le ‘drvSetup.exe’. Follow the onscreen
instructions to complete the driver installation.
Windows Vista/ 7/ 8
The driver is natively supported by newer Operating Systems. The driver should automatically install through Windows Update.
Instruction Manual
4
Management Utility Installation (Optional - Windows only)
RAID and/or HyperDuo conguration can be accomplished either through the integrated card-BIOS utility, or through the Marvell Storage Utility (MSU). Details for installing the MSU are below.
To install the Marvell Storage Utility (MSU) in Windows:
1. Run the MSUSetup.exe, selecting Next and accepting the license agreement when prompted – the default installation options are recommended.

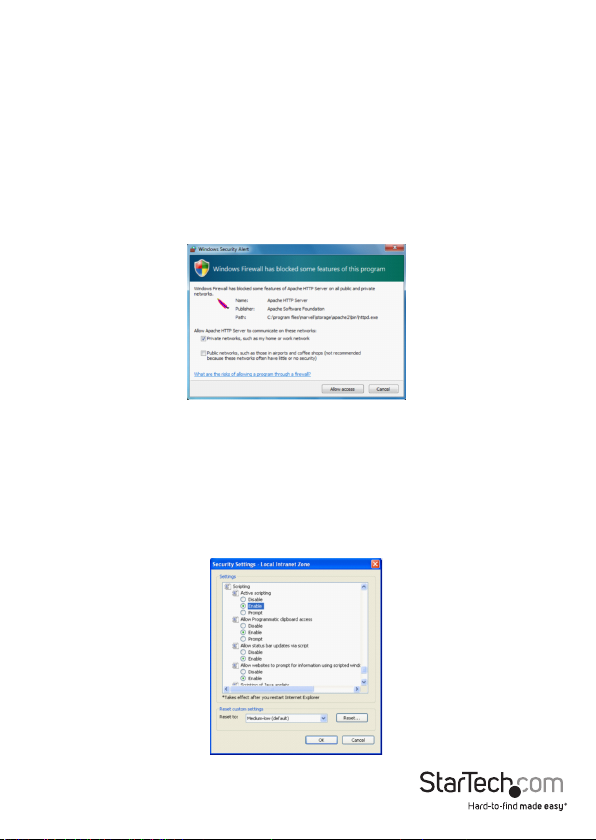

2. After installing the Apache2 HTTP Server (which is a built-in component of the installation package), the installation may trigger a Windows Security Alert on some versions of Windows, please allow access.
3. Before opening the MSU, verify that Active Scripting or JavaScript is enabled in the browser.
a. Internet Explorer
i. From the menu bar, select Tools > Internet Options.
ii. Select the “Security” tab, then “Local Intranet”, then “Custom level”.
iii. In the list of settings, scroll down to Scripting > Active scripting.
iv. Select “Enable”, then click “OK” to conrm the selection.
Instruction Manual
5
b. Firefox
i. From the menu bar, select Tools > Options
ii. Select the “Content” tab and ensure that the “Enable Javascript” option is checked (should be by default) – if it is not, select it and click “OK”
Instruction Manual
6
Verifying Installation
Windows
From the main desktop, right-click on “My Computer” (“Computer” in Vista/7/8), then select Manage. In the new Computer Management window, select Device Manager from the left window panel.
Under the “SCSI and RAID Controllers” category (“Storage Controllers” in Vista or later), should be a “Marvell 92xx” device. Right-click on the device and select “Properties” to make sure it is installed and working correctly.
For Windows 7 and 8, if using the native drivers, the card will instead be listed under the “IDE ATA/ATAPI Controller” category as a “Standard AHCI” device.
Port Multiplier
Port Multiplier (PM) allows for multiple SATA drives (up to 4) to be connected to a single SATA host port. PM allows for easy, cost-eective storage scalability both inside and outside the PC or server. It is commonly used to connect a multi-drive SATA/eSATA hard drive enclosure/backplane using a single cable. This greatly expands the storage capabilities of the SATA controller beyond its normal port count. Please visit StarTech. com for more SATA controllers that support the Port Multiplier feature.
NOTE: Only one port on the PEXSAT34RH can use the Port Multiplier feature at a time. The card supports up to 4 drives connected via Port Multiplier, 7 drives total.
Mac OS does not support Port Multiplier.
Instruction Manual
7
Operation
RAID Conguration
Card BIOS Method
WARNING! Creating a RAID virtual disk destroys all data on the physical disks included in the virtual disk set. Make sure to back up all data before continuing.
1. When prompted on startup, press Ctrl+M to enter the card BIOS utility
Press <Ctrl>+<M> to enter BIOS Setup or <Space> to continue_
2. Using the arrow keys to navigate, move to “HBA0: Marvell 0” and press Enter to select
3. Press Enter again to open the Conguration Wizard
4. Use the arrow keys to scroll through the list of free physical disks to select the drives that will be part of the RAID set. Press Space to select/de-select a disk.
NOTE: When a disk is selected, an asterisk (*) appears to the left of the disk label.
5. After selecting the required disks, press Enter to continue.
Instruction Manual
8
6. The “Create Virtual Disk” conguration options appear in the “Information” pane (right-side), here you are able to select the RAID level and other conguration options:
a. Select 2 HDDs for RAID 0 or RAID 1 b. Select 3 HDDs for RAID 0 c. Select 4 HDDs for RAID 0 or RAID 10
7. After conguring the virtual disk, highlight “Next” and press Enter. Press Y to conrm the creation of the virtual disk. It will now be listed in the Topology Pane (left).
Administration Console Method
WARNING! Creating a RAID virtual disk destroys all data on the physical disks included in the virtual disk set. Make sure to back up all data before continuing.
1. From the left pane of main screen of the Marvell Storage Utility (MSU), select the adapter and hover the mouse over the “Operation” tab.
2. Select “Create RAID”
Instruction Manual
9

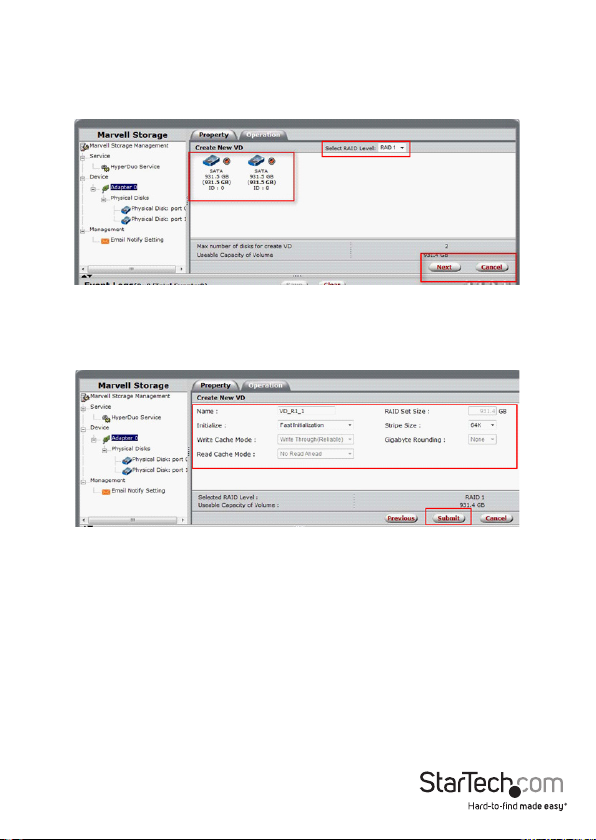

3. From the “Create new VD” screen that appears, click the “Select RAID Level” drop­down to choose the appropriate RAID type
4. This will enable you to place a checkbox beside the disks that you would like to use as part of the RAID set. Once you have selected, click “Next” to conrm your selection.
5. You will now be presented with conguration options for your RAID set. Choose the appropriate options and select “Submit” to conrm your changes. Your virtual disk will then be visible in the left pane – the same properties can be accessed later by selecting your virtual disk from the left pane.
Instruction Manual
10
HyperDuo Conguration
HyperDuo oers the following two modes that you can congure using either of the procedures outlined in the following sections:
• Safe mode creates a virtual disk that is optimized for best fault tolerance – the frequently accessed les copied to the SSD for performance are also stored on the HDD. It is safe to use with hard drives that contain existing data. Virtual disks created in safe mode can also be partially rebuilt if the SSD fails, but not if the HDD fails.
• Capacity mode creates a virtual disk that is optimized for maximum utilization of the SSD – the frequently accessed les are moved to the SSD (not copied). Virtual disks created in capacity mode have better read and write performance than those created in safe mode. However, they cannot be rebuilt.
WARNING! Capacity mode is a data-destructive process. Please back up all data before using capacity mode.
Card BIOS Method

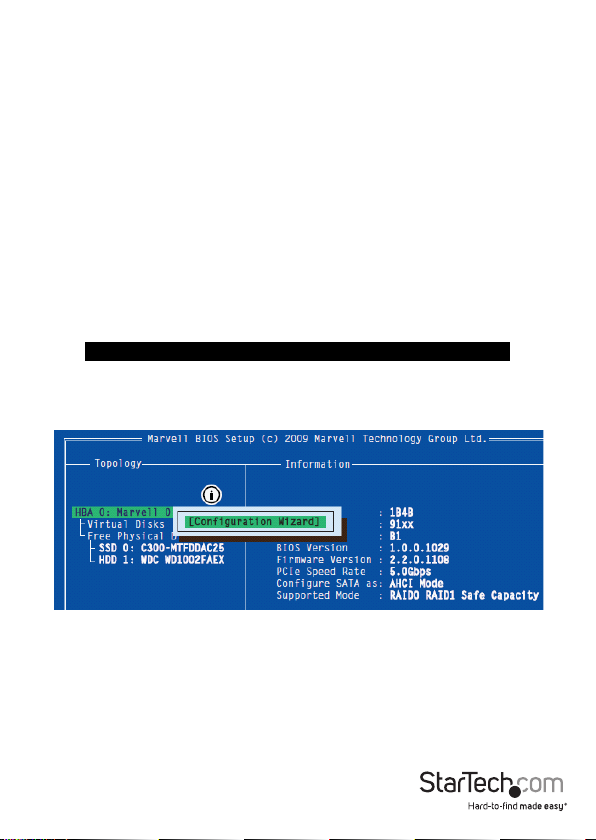

1. When prompted on startup, press Ctrl+M to enter the card BIOS utility
Press <Ctrl>+<M> to enter BIOS Setup or <Space> to continue_
2. Using the arrow keys to navigate, move to “HBA0: Marvell 0” and press Enter to select
3. Press Enter again to open the Conguration Wizard
4. Use the arrow keys to scroll through the list of free physical disks to select the drives that will be part of the HyperDuo set. Press Space to select/de-select a disk.
NOTE: When a disk is selected, an asterisk (*) appears to the left of the disk label.
5. After selecting the required disks, press Enter to continue.
6. The “Create Virtual Disk” conguration options appear in the “Information” pane (right-side), here you are able to select HyperDuo or RAID options
NOTE: The default HyperDuo mode is Safe mode.
Instruction Manual
11
7. Highlight “Keep original data” and press Enter to select. Select Yes or No and press Enter.
WARNING! Selecting “No” will destroy all data on the disks included in the virtual disk set. Make sure to back up all data before continuing. The “Keep original data” option is disabled when you choose Capacity mode, as it is inherently data­destructive.
8. After conguring the virtual disk, highlight “Next” and press Enter. Press Y to conrm the creation of the virtual disk. It will now be listed in the Topology Pane (left).
Administration Console Method
1. From the left pane of main screen of the Marvell Storage Utility (MSU), select the adapter and hover the mouse over the “Operation” tab.
2. Select “Create HyperDuo”
3. Select either Safe mode or Capacity mode from the drop-down in the right pane. Click the “Submit” button once you have selected the appropriate options for your operation.
NOTE: If Safe mode is selected, you will have the option to select the checkbox marked “Keep Original Data” – this option is NOT available in Capacity mode, as it is inherently data-destructive.
Instruction Manual
12
The newly created HyperDuo drive will then appear in the left pane and begin initializing. This can take up to 30 minutes to complete, and system performance may be slow during this period.
HyperDuo Management (Windows only)

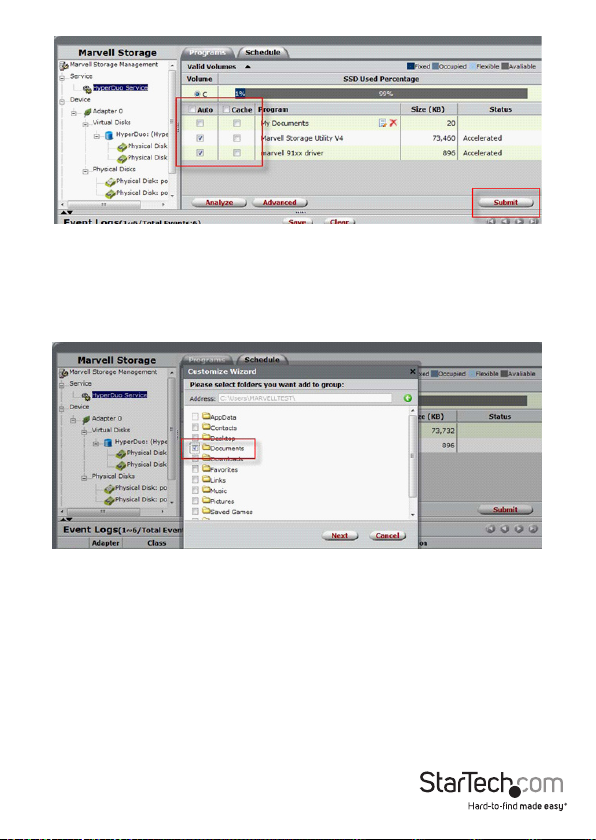

1. From the left pane of the MSU, select “HyperDuo Service”
2. The right pane will then display available programs and folder that you can customize to one of the following optimization modes:
a. Check Auto to have the MSU manage the optimization of a folder or program
automatically. b. Check Cache to manually select a folder or program for optimization. c. Check neither to specify that a folder or program should never be optimized.
Instruction Manual
13
3. Select Submit to apply your changes, then select “OK” on the pop-up that follows.
4. If the folder you would like to optimize is not available, select “Advanced” from the “HyperDuo Service” pane.
5. The “Customize Wizard” will pop-up and allow you to select the desired folders.
Instruction Manual
14
Specications
Host Interface
Form Factor Full/Low Prole
Chipset ID Marvell 9230
Internal Connectors 4x 7-pin SATA plug
Maximum Transfer Rate SATA: 6Gbps
RAID Support RAID 0, 1, 1+0
Port Multiplier Yes*
Operating Temperature 5°C ~ 50°C (41°F ~ 122°F)
Storage Temperature -25°C ~ 70°C (-13°F ~ 158°F)
Humidity 20% ~ 80% RH
Dimensions (LxWxH) 80mm x 120mm x 20mm
Weight 50g
Compatible Operating Systems
*Port Multiplier is not supported in Mac OS
7(32/64-bit)/ Server 2008 R2/ 8(32/64-
SATA Revision 3.0
Windows XP(32/64-bit)/ Server
2003(32/64-bit)/ Vista(32/64-bit)/
bit), Mac OS 10.6/ 10.7/ 10.8, Linux
PCI Express 2.0
Instruction Manual
15
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty Information
This product is backed by a two year warranty.
In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
