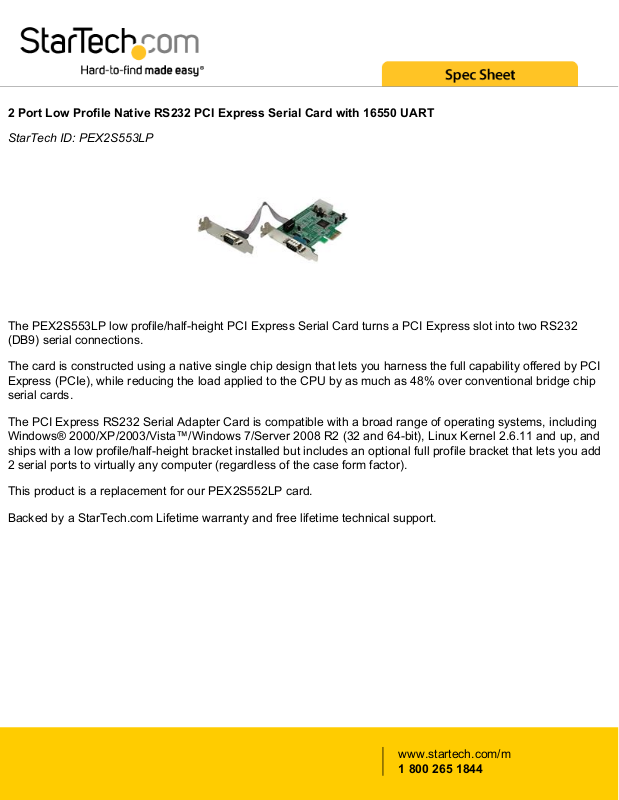

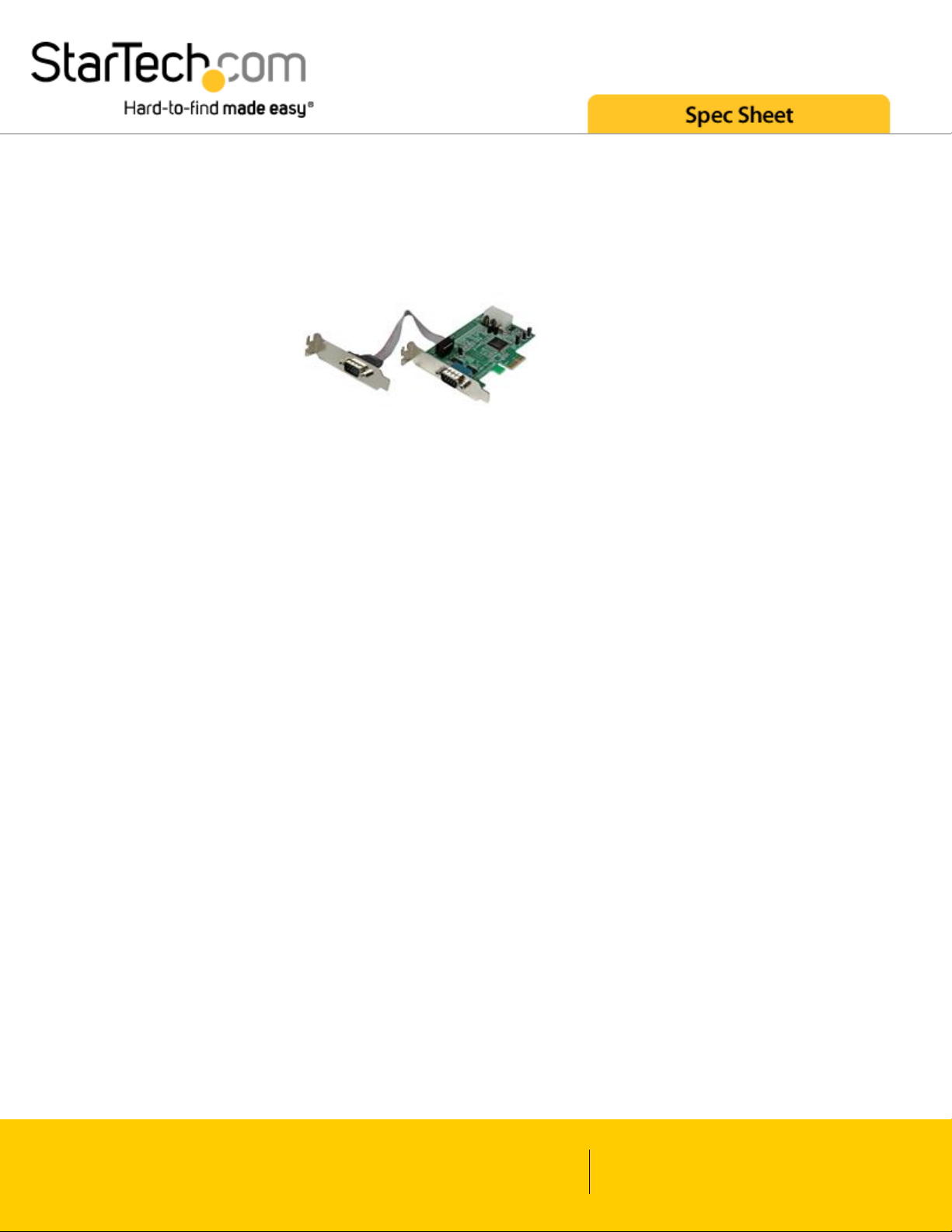

2 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART
StarTech ID: PEX2S553LP
The PEX2S553LP low profile/half-height PCI Express Serial Card turns a PCI Express slot into two RS232
(DB9) serial connections.
The card is constructed using a native single chip design that lets you harness the full capability offered by PCI
Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip
serial cards.
The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including
Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and
ships with a low profile/half-height bracket installed but includes an optional full profile bracket that lets you add
2 serial ports to virtually any computer (regardless of the case form factor).
This product is a replacement for our PEX2S552LP card.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
www.startech.com/m
1 800 265 1844
Page 2
Applications
Self service automated machines and kiosks to control serial devices such as scales, touchscreens,
magnetic card readers, bar code scanners, receipt printers, label printers
Bank teller workstations in either full profile or low profile versions to control their serial devices such as
cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers,
receipt printers, card readers / card swipes, scales, and elevated displays on poles
Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes,
touchscreen LCD's, camera control, etc.
Used to control multiple surveillance / security cameras in a parking structure, office building, etc.
Features
One high speed RS232 serial port with data transfer rate up to 460.8 Kbps
Ships with half-height/low profile mounting bracket, includes optional standard profile bracket
Single chip design optimizes speed and reliability
Native single-chip, single lane PCI Express
Selectable power output on pin 9 for the serial port
Compliant with PCI Express base specifications revision 1.1a
Automated out-of-band flow control using CTS/RTS and DSR/DTR
Automated in-band software flow control using programmable Xon/Xoff in both directions
128-byte deep FIFO per transmitter and receiver
www.startech.com/m
1 800 265 1844
Page 3
Technical Specifications
Warranty 2 Years
Product Height 0.8 in [20 mm]
Product Length 4.1 in [105 mm]
Product
Weight
2.2 oz [63.5 g]
Product Width 3.1 in [80 mm]
Bus Type PCI Express
Card Type Low Profile (SP bracket incl.)
Chipset ID ASIX/MosChip - MCS9922CV-AA
Interface Serial
Port Style Integrated on Card
Ports 2
FIFO 128 Bytes
Max Baud
Rate
460.8 Kbps
Serial Protocol RS-232
Connector
Type(s)
1 - PCI Express x1 Male
External Ports 2 - DB-9 (9 pin; D-Sub) Male
Internal Ports 1 - LP4 (4 pin; Molex Large Drive Power) Male
Microsoft
WHQL
Certified
Yes
OS
Compatibility
Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, POS
Ready 2009, Embedded System 2009, CE 5.0/6.0, 2000, 98SE, 95, DOS
Windows Server® 2012, 2008 R2, 2003
Mac OS® 10.4 and later (tested up to 10.10)
Linux kernel 2.6.x
Humidity 5~85% RH
Operating
Temperature
-10°C to 80°C (14°F to 176°F)
Storage
Temperature
-20°C to 100°C (-4°F to 212°F)
Shipping
(Package)
Weight
0.4 lb [0.2 kg]
www.startech.com/m
1 800 265 1844
Page 4
Included in
Package
1 - PCI-Express Serial Card
Included in
Package
1 - DB9 Ribbon cable
Included in
Package
1 - Full Profile Bracket
Included in
Package
1 - Low profile bracket
Included in
Package
1 - Driver CD
Included in
Package
1 - Instruction Manual
Certifications, Reports and Compatibility
