PCI Express Parallel Card
PEX1P
PEX1PLP
Instruction Manual
*PEX1P shown
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.•
Increase the separation between the equipment and receiver.•
Connect the equipment into an outlet on a circuit different from that to which the receiver •
is connected.
Consult the dealer or an experienced radio/TV technician for help.•
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only
and do not represent an endorsement of a product or service by StarTech.com, or an
endorsement of the product(s) to which this manual applies by the third-party company
in question. Regardless of any direct acknowledgement elsewhere in the body of
this document, StarTech.com hereby acknowledges that all trademarks, registered
trademarks, service marks, and other protected names and/or symbols contained in this
manual and related documents are the property of their respective holders.
Instruction Manual
Instruction Manual
Table of Contents
Introduction .................................................................... 1
Features ......................................................................................1
Package Contents .......................................................................1
System Requirements .................................................................1
Installation ....................................................................... 2
Hardware Installation ...................................................................2
Software Installation ....................................................................3
Verifying Installation .....................................................................4
Specifications .................................................................. 5
Technical Support ........................................................... 6
Warranty Information ...................................................... 6
i
Instruction Manual
Introduction
The StarTech.com 1-Port PCI Express to Parallel Adapter Card adds an
SPP/EPP/ECP compatible parallel port to any PCI Express enabled PC.
Installed into an x1 PCI Express (PCIe) slot and allowing for connections
to EPP/ECP parallel peripherals, the PCIe native, single-chip design
ensures maximum performance and reliability. Featuring a single DB25
parallel port, perfect for connecting printers, scanners and more and
backed by StarTech.com’s two year warranty and free lifetime technical
support.
Features
Maximum data transfer rate of 1.5 Mbps•
PCI 2.2 and PCI Power Management 1.0 compliant•
SPP/EPP/ECP Parallel port fully supports existing Centronics interface•
Low Profile compatible for small-form factor PCs (PEX1PLP only)•
Package Contents
1 x PCI Express Parallel Card•
1 x Full-Profile Bracket (PEX1PLP only - Low Profile bracket attached)•
1 x Low-Profile Bracket (PEX1P only - Full Profile bracket attached)•
1 x Instruction Manual•
1 x Driver CD•
System Requirements
PCI Express enabled computer system with available slot•
Microsoft•
or DOS, or Linux
®
Windows® 2000/XP/Server 2003/Vista/Server 2008 R2/7,
®
1
Instruction Manual
Installation
WARNING! PCI Express cards, like all computer equipment, can be
severely damaged by static electricity. Be sure that you are properly
grounded before opening your computer case or touching your card.
StarTech.com recommends that you wear an anti-static strap when
installing any computer component. If an anti-static strap is unavailable,
discharge yourself of any static electricity build-up by touching a large
grounded metal surface (such as the computer case) for several
seconds. Also be careful to handle the card by its edges and not the gold
connectors.
Hardware Installation
Turn your computer off and any peripherals connected to the computer 1.
(i.e. Printers, external hard drives, etc.). Unplug the power cable
from the rear of the power supply on the back of the computer and
disconnect all peripheral devices.
Remove the cover from the computer case. See documentation for 2.
your computer system for details.
Locate an open PCI Express slot and remove the metal cover plate 3.
on the rear of the computer case (Refer to documentation for your
computer system for details.). Note that this card will work in PCI
Express slots of additional lanes (i.e. x4, x8 or x16 slots).
NOTE: If using the PEX1PLP and installing into a full profile computer
case, use a screw driver to remove the screws holding the low profile
bracket to the card and replace with the included full profile bracket.
Insert the card into the open PCI Express slot and fasten the bracket to 4.
the rear of the case.
Place the cover back onto the computer case.5.
Insert the power cable into the socket on the power supply and 6.
reconnect all other connectors removed in Step 1.
2
Instruction Manual
Software Installation
Windows 2000/XP/Server 2003
When the Found New Hardware wizard appears on the screen, insert 1.
the Driver CD into your CD/DVD drive. If you are prompted to connect
to Windows Update, please select the “No, not this time” option and
click Next.
Select the option “Install Drivers Automatically (Recommended)” and 2.
then click the Next button.
Windows should now start searching for the drivers. Once this has 3.
completed, click the Finish button.
Windows Vista/Server 2008 R2/7
When the Found New Hardware window appears on the screen, click 1.
on the “Locate and install drivers software (recommended)” option. If
prompted to search online, select the “Don’t search online” option.
When prompted to insert the disc, insert the Driver CD that came 2.
with the card, into your CD/DVD drive and Windows will automatically
proceed to search the CD.
If a Windows Security dialog window appears, click the “Install this 3.
driver software anyway” option to proceed.
Once the driver is installed, click the Close button.4.
3
Instruction Manual
Verifying Installation
Windows 2000/XP/Server 2003/Vista/Server 2008 R2/7

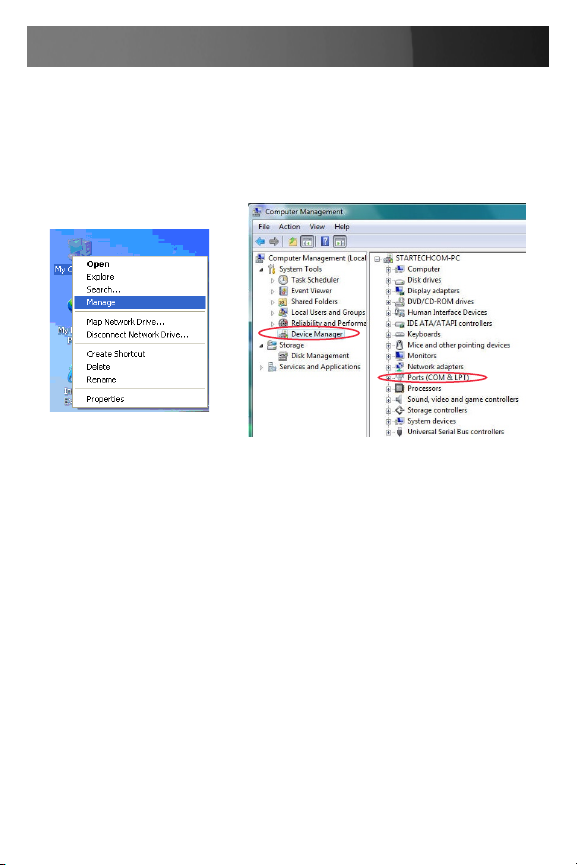

From the main desktop, right-click on “My Computer” (“Computer” in
Vista/7), then select Manage. In the new Computer Management window,
select Device Manager from the left window panel.
Double-click on the “Ports (COM & LPT)” option. A new ‘PCI Express
Parallel Port’ should be visible. The port is ready to connect to new
devices.
4
Instruction Manual
Specications
Bus Interface
Form Factor
Chipset ID
Connectors
Supported Standards
Maximum Data Transfer Rate
Operating Temperature
Storage Temperature
Humidity
Dimensions
Weight
Compatible Operating Systems
PEX1P
PEX1PLP
PCI Express rev 1.1
(x1 slot connector)
Full, Low (PEX1PLP only) Profile
PLX OXPCIe952
1 x DB25 female
IEEE1284: SPP/ECP/EPP
Up to 1.5 Mbps
0°C ~ 50°C (32°F ~ 122°F)
-20°C ~ 60°C (-4°F ~ 140°F)
5% ~ 85% RH
PEX1P:
120.0mm x 110.0mm x 21.0mm
PEX1PLP:
80.0mm x 110.0mm x 21.0mm
PEX1P: 65g
PEX1PLP: 55g
Windows 2000/XP/Server 2003/
Vista/Server 2008 R2/7, DOS,
Linux
5
Instruction Manual
Technical Support
StarTech.com’s lifetime technical support is an integral part of our
commitment to provide industry-leading solutions. If you ever need
help with your product, visit www.startech.com/support and access our
comprehensive selection of online tools, documentation, and downloads.
Warranty Information
This product is backed by a two year warranty.
In addition, StarTech.com warrants its products against defects in materials
and workmanship for the periods noted, following the initial date of purchase.
During this period, the products may be returned for repair, or replacement
with equivalent products at our discretion. The warranty covers parts and
labor costs only. StarTech.com does not warrant its products from defects
or damages arising from misuse, abuse, alteration, or normal wear and
tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA
LLP (or their officers, directors, employees or agents) for any damages
(whether direct or indirect, special, punitive, incidental, consequential, or
otherwise), loss of profits, loss of business, or any pecuniary loss, arising
out of or related to the use of the product exceed the actual price paid
for the product. Some states do not allow the exclusion or limitation of
incidental or consequential damages. If such laws apply, the limitations or
exclusions contained in this statement may not apply to you.
6
