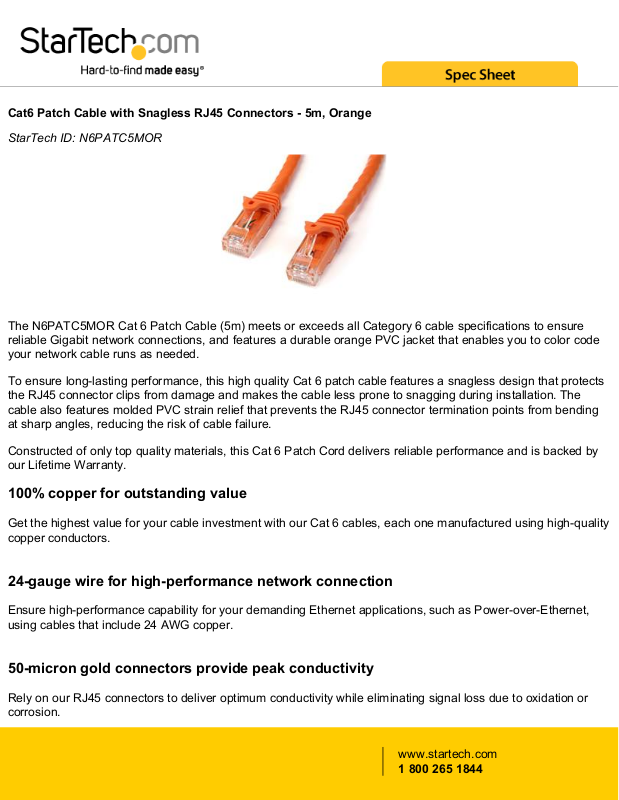

Cat6 Patch Cable with Snagless RJ45 Connectors - 5m, Orange
StarTech ID: N6PATC5MOR
The N6PATC5MOR Cat 6 Patch Cable (5m) meets or exceeds all Category 6 cable specifications to ensure
reliable Gigabit network connections, and features a durable orange PVC jacket that enables you to color code
your network cable runs as needed.
To ensure long-lasting performance, this high quality Cat 6 patch cable features a snagless design that protects
the RJ45 connector clips from damage and makes the cable less prone to snagging during installation. The
cable also features molded PVC strain relief that prevents the RJ45 connector termination points from bending
at sharp angles, reducing the risk of cable failure.
Constructed of only top quality materials, this Cat 6 Patch Cord delivers reliable performance and is backed by
our Lifetime Warranty.
100% copper for outstanding value
Get the highest value for your cable investment with our Cat 6 cables, each one manufactured using high-quality
copper conductors.
24-gauge wire for high-performance network connection
Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet,
using cables that include 24 AWG copper.
50-micron gold connectors provide peak conductivity
Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or
corrosion.
www.startech.com
1 800 265 1844

Applications
Connecting PoE-enabled devices to Gigabit networks
Patch connections from network hub to distribution panel
Connects workstation to RJ45 wall outlet
Deliver data, voice and video over Gigabit networks
Extend the reach of your Gigabit network devices by 5 meters
Features
Molded RJ45 connectors
Carefully constructed and tested, to keep Near End Crosstalk (NEXT) and Return Loss well within
acceptable limits
Colored hoods for departmental color coding
High quality 24 AWG copper wire
ETL Verified
Rated performance for up to 500Mhz
www.startech.com
1 800 265 1844

Technical Specifications
Warranty Lifetime
Cable Jacket Type PVC - Polyvinyl Chloride
Cable Type Snagless
Connector Plating Gold
Fire Rating CMG Rated (General Purpose)
Number of Conductors 4 pair UTP
Wiring Standard TIA/EIA-568-B.1-2001 T568B
Cable Rating CAT6 - 500 MHz
Connector A 1 - RJ-45 Male
Connector B 1 - RJ-45 Male
Cable Length 5 m [16.4 ft]
Color Orange
Product Length 5 m [16.4 ft]
Product Weight 207 g [7.3 oz]
Wire Gauge 24 AWG
Package Quantity 1
Shipping (Package) Weight 214 g [7.6 oz]
Included in Package 1 - 5m Orange Snagless Cat6 UTP Patch Cable - ETL Verified
Certifications, Reports and Compatibility
