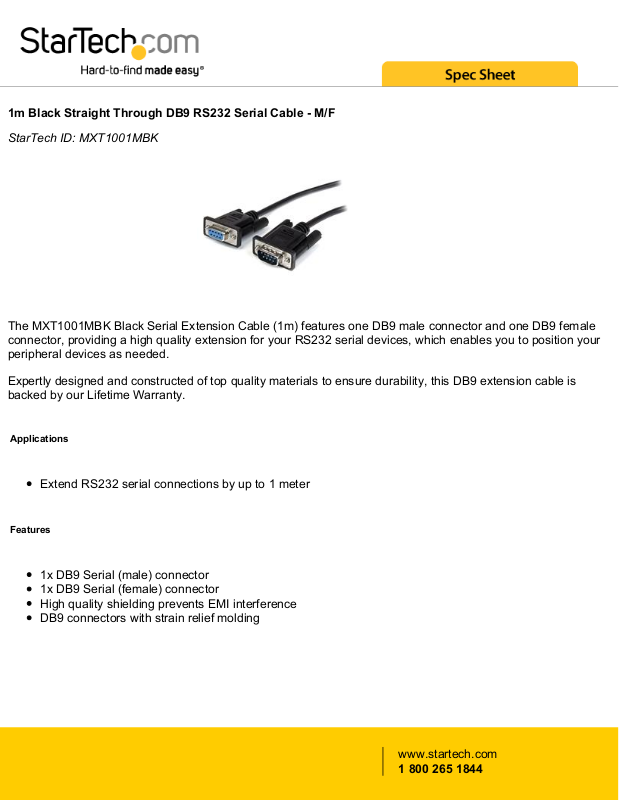

Startech MXT1001MBK User Manual

1m Black Straight Through DB9 RS232 Serial Cable - M/F

StarTech ID: MXT1001MBK

The MXT1001MBK Black Serial Extension Cable (1m) features one DB9 male connector and one DB9 female
connector, providing a high quality extension for your RS232 serial devices, which enables you to position your
peripheral devices as needed.

Expertly designed and constructed of top quality materials to ensure durability, this DB9 extension cable is
backed by our Lifetime Warranty.

Applications

Extend RS232 serial connections by up to 1 meter

Features

1x DB9 Serial (male) connector
1x DB9 Serial (female) connector
High quality shielding prevents EMI interference
DB9 connectors with strain relief molding

www.startech.com

1 800 265 1844

Technical Specifications

Warranty Lifetime
Cable Length 39.4 in [1000 mm]
Color Black
Product Length 39.4 in [1000 mm]
Product Weight 0.2 lb [0.1 kg]
Wire Gauge 28 AWG
Cable Jacket Type PVC - Polyvinyl Chloride
Cable Shield Type Aluminum-Mylar Foil with Drain
Connector Plating Nickel
Connector A 1 - DB-9 (9 pin; D-Sub) Male
Connector B 1 - DB-9 (9 pin; D-Sub) Female
Package Quantity 1
Shipping (Package) Weight 0.2 lb [0.1 kg]
Included in Package 1 - 1m Black Straight Through Serial Cable - DB9 M/F

Certifications, Reports and Compatibility

www.startech.com

1 800 265 1844
