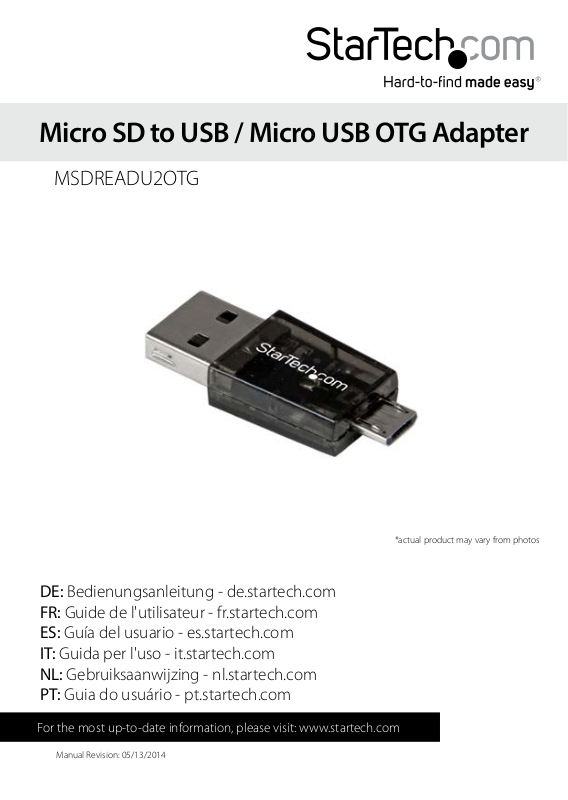

Micro SD to USB / Micro USB OTG Adapter
MSDREADU2OTG
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/13/2014
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not
represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. Regardless
of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the property of
their respective holders.
Instruction Manual
Table of Contents
Product Diagram ....................................................................................1
Front View ....................................................................................................................................................1
Rear View ...................................................................................................................................................... 1
Introduction ............................................................................................2
Packaging Contents ................................................................................................................................. 2
System Requirements .............................................................................................................................. 2
Hardware Installation ............................................................................3
Micro SD card Removal ........................................................................................................................... 4
Technical Support .................................................................................. 5
Warranty Information ............................................................................5
Instruction Manual
i
Product Diagram
Front View
1. Mirco USB Port
Rear View
1. Micro SD Slot
Instruction Manual
1
Introduction
Packaging Contents
• 1 x Micro SD to USB / Micro USB OTG Adapter (MSDREADU2OTG)
System Requirements
• Micro SD Card
• Host device (OTG-enabled Smartphone or USB-enabled Computer System)
Instruction Manual
2
Hardware Installation
WARNING! Micro SD cards and computer system components require careful
handling. If you are not careful with your Micro SD card lost data may result. Always
handle your computer equipment with caution. Be sure that you are properly
grounded by wearing an anti-static strap when handling computer components or
discharge yourself of any static electricity build-up by touching a large grounded metal
surface (such as the computer case) for several seconds.
1. Remove the port cover from the USB port.
2. Gently slide your Micro SD card into the Micro SD slot on the MSDREADU2OTG
until you feel resistance.
3. Connect MSDREADU2OTG to your host device.
a) If connecting to an OTG-enabled Smartphone, connect the Micro USB port on
the MSDREADU2OTG to the OTG port (Micro USB slot) on your Smartphone.
Note: Not all Smartphones support an OTG adapter. Please contact the manufacturer
of your Smartphone for more details regarding support for OTG and le format (FAT/
FAT32/exFAT).
b) If connecting to a USB-enabled computer system, connect the USB port on the
MSDREADU2OTG to an available USB port on your computer system.
Instruction Manual
3
4. (Optional) The port cover can be placed back on the USB port, to protect the USB
port as well as the Micro SD card.
Micro SD card Removal
1. Grasp the lip of your Micro SD card from the top of the Micro SD slot on the
MSDREADU2OTG, and gently pull the card outward until it is removed.
Note: Micro SD cards with a smaller lip, may be more dicult to remove, and removal
may require a small tool, such as a ne set of tweezers.
Instruction Manual
4
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to
provide industry-leading solutions. If you ever need help with your product, visit
www.startech.com/support and access our comprehensive selection of online tools,
documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty Information
This product is backed by a two year warranty.
In addition, StarTech.com warrants its products against defects in materials
and workmanship for the periods noted, following the initial date of purchase.
During this period, the products may be returned for repair, or replacement with
equivalent products at our discretion. The warranty covers parts and labor costs only.
StarTech.com does not warrant its products from defects or damages arising from
misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their
ocers, directors, employees or agents) for any damages (whether direct or indirect,
special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,
or any pecuniary loss, arising out of or related to the use of the product exceed the
actual price paid for the product. Some states do not allow the exclusion or limitation
of incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
Instruction Manual
5
