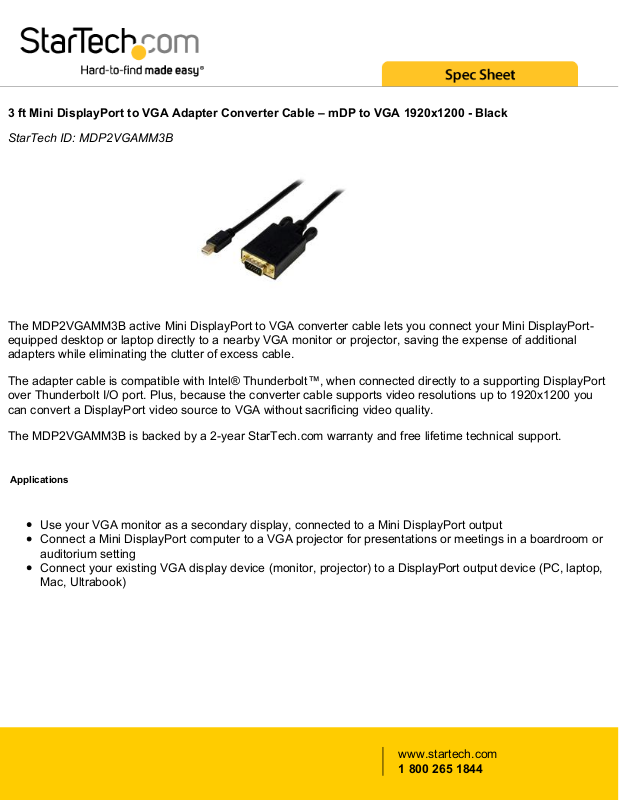

Startech MDP2VGAMM3B Product Data Sheet
3 ft Mini DisplayPort to VGA Adapter Converter Cable – mDP to VGA 1920x1200 - Black
StarTech ID: MDP2VGAMM3B
The MDP2VGAMM3B active Mini DisplayPort to VGA converter cable lets you connect your Mini DisplayPortequipped desktop or laptop directly to a nearby VGA monitor or projector, saving the expense of additional
adapters while eliminating the clutter of excess cable.
The adapter cable is compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort
over Thunderbolt I/O port. Plus, because the converter cable supports video resolutions up to 1920x1200 you
can convert a DisplayPort video source to VGA without sacrificing video quality.
The MDP2VGAMM3B is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Applications
Use your VGA monitor as a secondary display, connected to a Mini DisplayPort output
Connect a Mini DisplayPort computer to a VGA projector for presentations or meetings in a boardroom or
auditorium setting
Connect your existing VGA display device (monitor, projector) to a DisplayPort output device (PC, laptop,
Mac, Ultrabook)
www.startech.com
1 800 265 1844
Features
Active Mini DisplayPort to VGA conversion
Plug-and-Play Installation
Supports resolutions up to 1920x1200 (WUXGA) and HDTV resolutions up to 1080p
Compatible with Intel® Thunderbolt™ devices that are capable of outputting a DisplayPort signal
Technical Specifications
Warranty 2 Years
Adapter Style Cable Adapter
Audio No
Chipset ID ANALOGIX 9832
Converter Type Active
Maximum Analog Resolutions 1920x1200 / 1080p (Output)
Maximum Cable Length 3 ft [0.9 m]
Maximum Digital Resolutions 1920x1200 / 1080p (Input)
Connector A 1 - Mini-DisplayPort (20 pin) Male
Connector B 1 - VGA (15 pin; High Density D-Sub) Male
Humidity 40%-85%RH
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Cable Length 3 ft [0.9 m]
Color Black
Product Height 0.6 in [15 mm]
Product Length 36.6 in [930 mm]
Product Weight 2.8 oz [79 g]
Product Width 1.3 in [34 mm]
Shipping (Package) Weight 3.2 oz [90 g]
Included in Package 1 - Mini DisplayPort® to VGA Adapter
www.startech.com
1 800 265 1844
