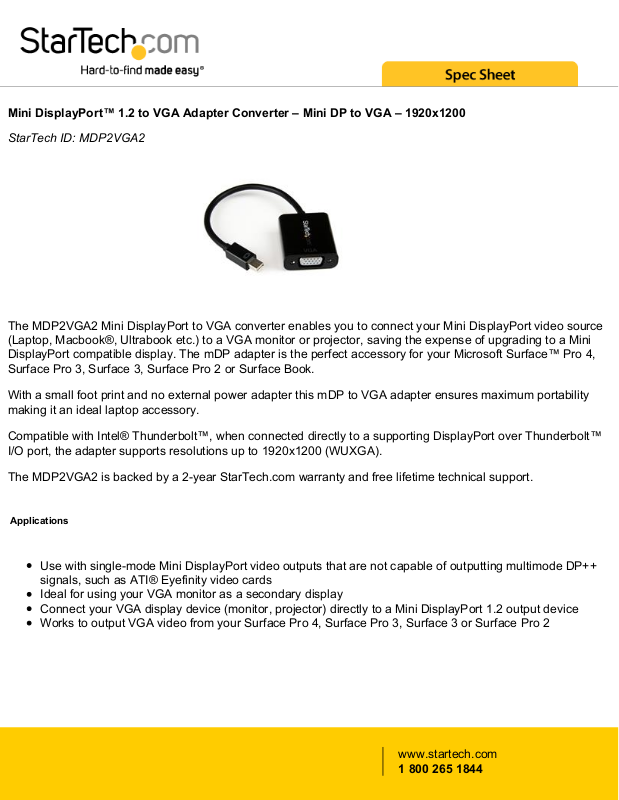

Startech MDP2VGA2 Product Data Sheet

Mini DisplayPort™ 1.2 to VGA Adapter Converter – Mini DP to VGA – 1920x1200

StarTech ID: MDP2VGA2

The MDP2VGA2 Mini DisplayPort to VGA converter enables you to connect your Mini DisplayPort video source
(Laptop, Macbook®, Ultrabook etc.) to a VGA monitor or projector, saving the expense of upgrading to a Mini
DisplayPort compatible display. The mDP adapter is the perfect accessory for your Microsoft Surface™ Pro 4,
Surface Pro 3, Surface 3, Surface Pro 2 or Surface Book.

With a small foot print and no external power adapter this mDP to VGA adapter ensures maximum portability
making it an ideal laptop accessory.

Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™
I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).

The MDP2VGA2 is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Applications

Use with single-mode Mini DisplayPort video outputs that are not capable of outputting multimode DP++
signals, such as ATI® Eyefinity video cards
Ideal for using your VGA monitor as a secondary display
Connect your VGA display device (monitor, projector) directly to a Mini DisplayPort 1.2 output device
Works to output VGA video from your Surface Pro 4, Surface Pro 3, Surface 3 or Surface Pro 2

www.startech.com

1 800 265 1844

Features

Supports display resolutions up to 1920x1200/1080p
Compatible with Intel® Thunderbolt™ devices that are capable of outputting a DisplayPort signal
Plug-and-play installation
DisplayPort 1.2 Compliant

Technical Specifications

Warranty 2 Years
Adapter Style Adapter
Audio No
Chipset ID Analogix ANX9833
Converter Type Active
Maximum Analog Resolutions 1920x1200 / 1080p (output)
Maximum Digital Resolutions 1920x1200 / 1080p (input)
Wide Screen Supported Yes
Connector A 1 - Mini-DisplayPort (20 pin) Male
Connector B 1 - VGA (15 pin; High Density D-Sub) Female
Humidity 10%-85%RH
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -10°C to 80°C (14°F to 176°F)
Cable Length 7.1 in [180 mm]
Color Black
Product Height 0.3 in [8 mm]
Product Length 8.7 in [220 mm]
Product Weight 0.9 oz [25 g]
Product Width 1.4 in [35 mm]
Shipping (Package) Weight 0.1 lb [0 kg]
Included in Package 1 - Mini DisplayPort 1.2 to VGA Adapter
