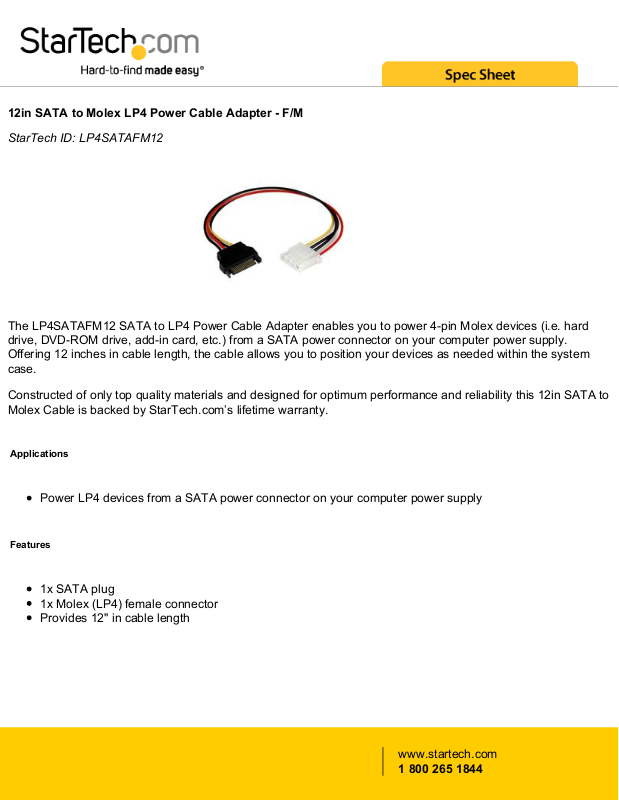

Startech LP4SATAFM12 Product Data Sheet

12in SATA to Molex LP4 Power Cable Adapter - F/M

StarTech ID: LP4SATAFM12

The LP4SATAFM12 SATA to LP4 Power Cable Adapter enables you to power 4-pin Molex devices (i.e. hard
drive, DVD-ROM drive, add-in card, etc.) from a SATA power connector on your computer power supply.
Offering 12 inches in cable length, the cable allows you to position your devices as needed within the system
case.

Constructed of only top quality materials and designed for optimum performance and reliability this 12in SATA to
Molex Cable is backed by StarTech.com’s lifetime warranty.

Applications

Power LP4 devices from a SATA power connector on your computer power supply

Features

1x SATA plug
1x Molex (LP4) female connector
Provides 12" in cable length

www.startech.com

1 800 265 1844

Technical Specifications

Warranty Lifetime
Connector A 1 - SATA Power (15 pin) Plug
Connector B 1 - LP4 (4 pin; Molex Large Drive Power) Female
Cable Length 12 in [304.8 mm]
Connector Style Straight
Product Height 0.3 in [8 mm]
Product Length 12 in [304.8 mm]
Product Weight 0.6 oz [16 g]
Product Width 1.2 in [30 mm]
Wire Gauge 18 AWG
Package Quantity 1
Shipping (Package) Weight 0.7 oz [21 g]
Included in Package 1 - 12in SATA to LP4 Power Cable Adapter - F/M
