Startech ICUSB232D User Manual

USB to RS232 DB9 Serial Adapter with Detachable 6’ M/M USB Cable
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 09/08/2014
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modications not expressly approved by StarTech.com could void the user’s authority to operate the equipment.
Industry Canada Statement
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
CAN ICES-3 (B)/NMB-3(B)
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.
Instruction Manual
Table of Contents
Product Diagram ....................................................................................1
Front View ....................................................................................................................................................1
Rear View ...................................................................................................................................................... 1
RS232 Pinout ............................................................................................................................................... 2
Introduction ............................................................................................2
Packaging Contents ................................................................................................................................. 2
System Requirements .............................................................................................................................. 2
Installation ..............................................................................................3
Windows® ..................................................................................................................................................... 3
Mac OS® ........................................................................................................................................................ 4
Verifying Installation ................................................................................................................................ 4
Specications ..........................................................................................6
Technical Support .................................................................................. 7
Warranty Information ............................................................................7
Instruction Manual
i
Introduction
Packaging Contents
• 1x USB to RS232 Adapter
• 1x 6ft USB 2.0 Cable M/M - “A” to “B”
• 1x Driver CD
• 1x Instruction Manual
System Requirements
• Available USB Port
• Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64), Windows Server® 2012, 2008 R2, 2003, Mac OS® 10.6 and up (Tested up to 10.10), Linux 3.5 / 3.13
Product Diagram
Front View
Instruction Manual
DB-9/RS232
1
Rear View
RS232 Pinout
USB 2.0 ‘B’
(USB ‘A’ to ‘B’ Cable Included)
Instruction Manual
2
Installation
Depending on your Operating System version and whether or not you have an active network connection, the USB to Serial Adapter may auto-install, or auto-download the proper drivers once connected to an available USB port on the host system. If the USB to Serial Adapter does not automatically install the drivers, follow the steps below to complete the installation process.
Windows®

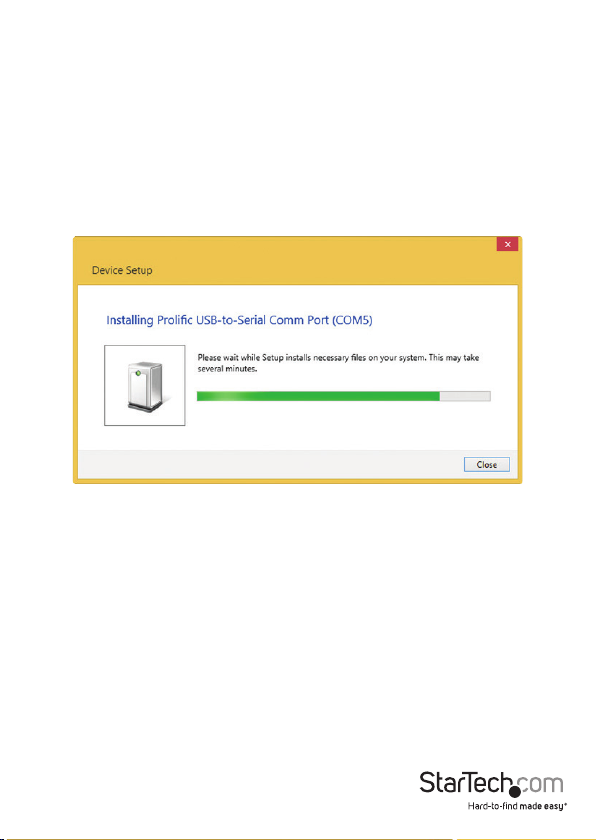

1. Connect the provided USB 2.0 Cable to the USB to Serial Adapter, and then to an available USB port on the host computer. The drivers should automatically install.
2. If the drivers did not automatically download and/or install, download the latest drivers from the www.startech.com website (recommended), or insert the provided Driver CD into your computers CD/DVD drive.
3. Browse to the downloaded driver le location and run the “.exe” install application. Follow any on-screen instructions to complete the driver installation process.
4. If using the Driver CD method, select the Open folder to view les option from the AutoPlay menu. If AutoPlay is disabled on your system, browse to your CD/DVD drive.
5. Run the “.exe” install application and follow any on-screen instructions to complete the driver installation process.
Note: You may be prompted to restart your system.
Instruction Manual
3
6. Connect your RS232 Serial Device to the DB-9 Port on the USB to Serial Adapter
Mac OS®
1. Connect the provided USB 2.0 Cable to the USB to Serial Adapter, and then to an available USB port on the host computer.
2. If the drivers did not automatically download and/or install, download the latest drivers from the www.startech.com website (recommended), or insert the provided Driver CD in to your computers CD/DVD drive.
3. Browse to the downloaded driver le location and run the “.dmg” install application. Follow any on-screen instructions to complete the driver installation process.
4. If using the Driver CD method, browse to your CD/DVD drive and run the “.dmg” install application and follow any on-screen instructions to complete the driver installation process.
Verifying Installation
Windows®
1. From the main desktop or start menu, open the Device Manager by right-clicking on Computer, and then selecting Manage. In the Computer Management window, select Device Manager from the left window panel. (For Windows® 8.1, right-click on the Start button and click Device Manager).
2. Expand the “Ports (COM & LPT)” section. With the USB to Serial adapter connected, on a successful install you should see the following device in the list with no exclamation points or question marks.
Instruction Manual
4
Mac OS®
1. Open the System Proler by clicking the Apple symbol in the top left corner,
selecting About this Mac, then select System Report.
2. Expand the “Hardware” section and click “USB” in the left column. With the USB to
Serial Adapter connected, on a successful install you should see the following device in the list.
Instruction Manual
5
Specications
Interface Serial
Bus Type USB 2.0
Port Style Cable Adapter
Industry Standards USB 2.0/1.1
RS-232
Chipset ID Prolic - PL2303-TA
Connector Types 1 - DB-9 (9 pin; D-Sub) Male
1 - USB B (4 pin) Female
Serial Protocol RS-232
Max Baud Rate 128 Kbps
Data Bits 5,6,7,8
FIFO 512 Bytes
Flow Control None, Xon/Xo, RTS/CTS, CD/DTR/DSR
Parity None, Odd, Even, Mark, Space
Stop Bits 1, 1.5, 2
OS Compatibility Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista
System and Cable Requirements Available USB 1.1 (or above) port
Product Dimensions (LxWxH) 59 x 32 x 22 mm
Cable Length 6 ft [1.8 m]
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -10°C to 80°C (14°F to 176°F)
Humidity 5~95% RH (Non-Condensing)
(32/64), XP (32/64), Windows Server® 2012,
2008 R2, 2003
Mac OS® 10.6 and up (Tested up to 10.10)
Linux 3.5 / 3.13
Instruction Manual
6
Technical Support
StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.
For the latest drivers/software, please visit www.startech.com/downloads
Warranty Information
This product is backed by a two year warranty.
In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.
Limitation of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
Instruction Manual
7
