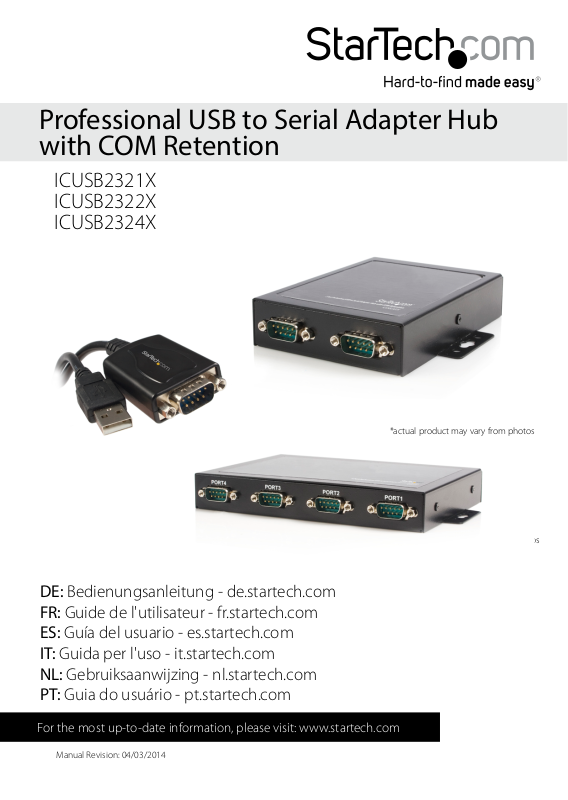

Startech ICUSB2321X User Manual
Professional USB to Serial Adapter Hub
with COM Retention
ICUSB2321X
ICUSB2322X
ICUSB2324X
*actual product may vary from photos
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 04/03/2014
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other
protected names and/or symbols of third-party companies not related in any way to
StarTech.com. Where they occur these references are for illustrative purposes only and do not
represent an endorsement of a product or service by StarTech.com, or an endorsement of the
product(s) to which this manual applies by the third-party company in question. Regardless
of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby
acknowledges that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the property of
their respective holders.
Instruction Manual
Table of Contents
Introduction ............................................................................................1
Package Contents ..................................................................................................................................... 1
System Requirements .............................................................................................................................. 1
Hardware Guide .....................................................................................2
ICUSB2321X ................................................................................................................................................. 2
ICUSB2322X ................................................................................................................................................. 2
ICUSB2324X ................................................................................................................................................. 3
Installation .............................................................................................4
Manual Installation .................................................................................................................................. 4
Automatic Installation ............................................................................................................................ 9
Verifying Installation ................................................................................................................................ 9
Conguration ..........................................................................................10
Pinout .......................................................................................................10
Manual Installation Troubleshooting .................................................11
Specications ..........................................................................................13
Technical Support ..................................................................................14
Warranty Information ............................................................................14
Instruction Manual
i
Introduction
Thank you for purchasing a StarTech.com Professional USB to RS-232 Serial Adapter.
This innovative device oers a simple way to utilize serial devices using a USB port,
and stores settings that are unique to the connected device in non-volatile memory
(COM Port Retention), allowing you to retain the desired settings regardless of the
USB Port to which the adapter is connected.
A cost-eective solution, the USB to Serial Adapter is ideal for connecting a serial
modem, barcode scanner, PDA or any other device with serial sync to a host
computer USB port, saving the expense of having to upgrade the peripheral device
to USB compliance.
Package Contents
• 1 x USB to RS-232 Serial Adapter
• 1 x USB cable (ICUSB2322X/ ICUSB2324X only)
• 1 x Driver CD
• 1 x Instruction Manual
System Requirements
• USB enabled computer system with available USB port
• Windows® 8 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64), Server® 2012, 2008 R2,
2003 (32/64)
Instruction Manual
1
Hardware Guide
ICUSB2321X
ICUSB2322X
Front Panel
Rear Panel
Instruction Manual
USB type A
connector
DC Power
Input
(optional)
DC Terminal
Block Input
(optional)
DB9 Male
Port
2
DB9 Male
Port
USB type B
connector
ICUSB2324X
Front Panel
Rear Panel
DB9 Male
Port
DC Power
(optional)
Instruction Manual
Input
DC Terminal
Block Input
(optional)
USB type B
connector
3
